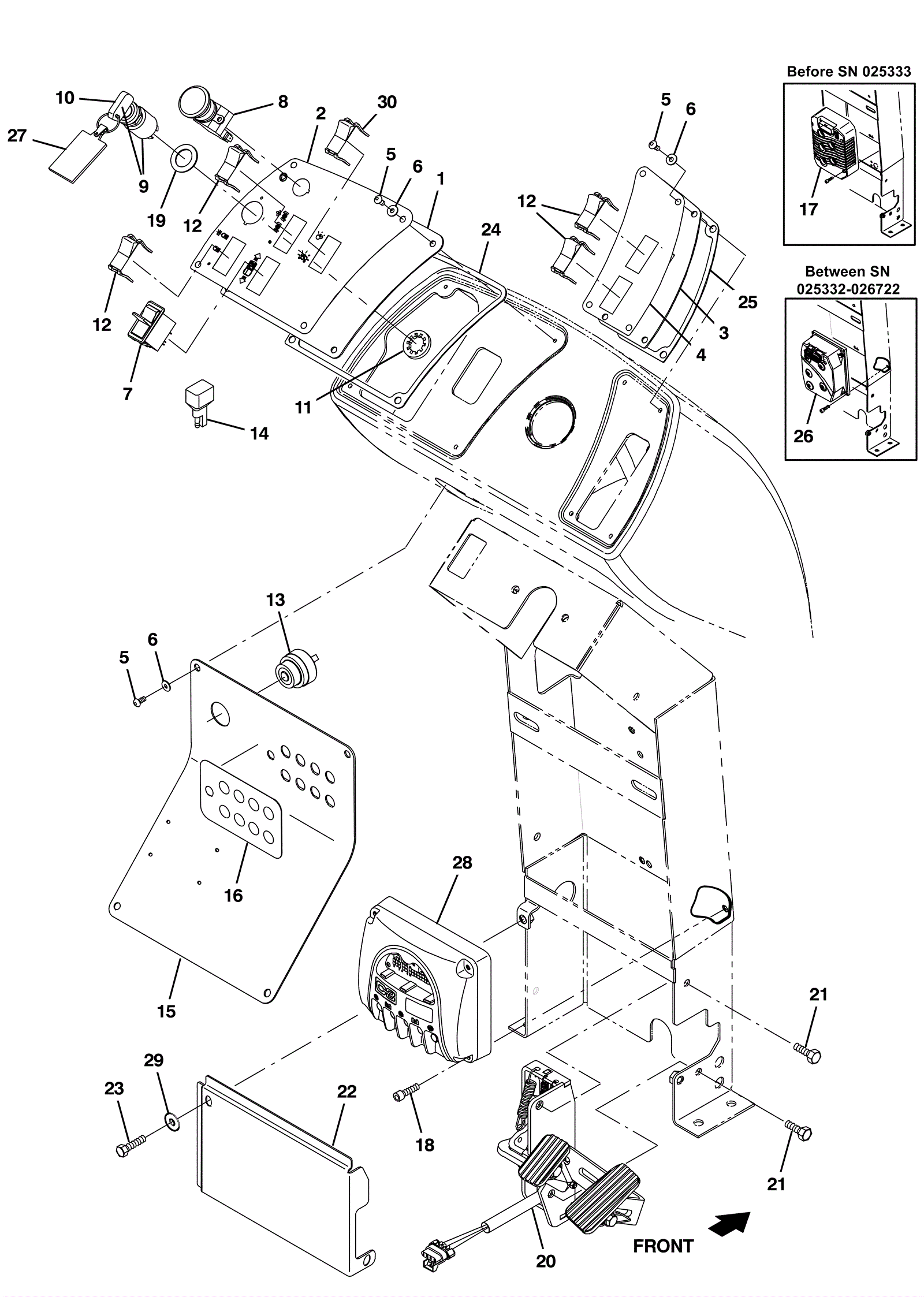

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0676
|
Left hand panel console |
1 |
|
|
6 |
275-2619
|
Washer flat black (Tennant Industrial) |
12 |
|
|
9 |
175-3214
|
Key switch |
1 |
(includes 10) |
|
10 |
175-3215
|
Key (sold individually) |
1 |
|
|
11 |
275-2701
|
Washer 7/8 internal lock (Tennant Industrial) |
1 |
|
|
12 |
175-2556
|
Switch plug |
4 |
|
|
15a |
275-2703
|
Electrical panel (Tennant Industrial) |
1 |
|
|
15b |
275-2704
|
Electrical panel (ec-H20) (FaST) (Tennant Industrial) |
1 |
(FaST and ec-H2O models) |
|
16 |
275-2705
|
Electrical panel decal (Tennant Industrial) |
1 |
|
|
18a |
999-1320
|
Screw M6-1 x 20mm socket head stainless steel |
4 |
(before SN 026722) |
|
19 |
175-3217
|
Washer .91b x 1.38d x .06 steel plated |
1 |
|
|
20 |
275-9358
|
Pedal assembly |
1 |
|
|
22 |
275-2707
|
Pedal assembly access panel (Tennant Industrial) |
1 |
|
|
24 |
275-2708
|
Left hand gasket (Tennant Industrial) |
1 |
|
|
25 |
275-2709
|
Right hand gasket (Tennant Industrial) |
1 |
|
|
26 |
675-7555
|
CONTROLLER, PROPEL, 36VDC 200A [AC] (Tennant Industrial) |
1 |
|
|
29 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
