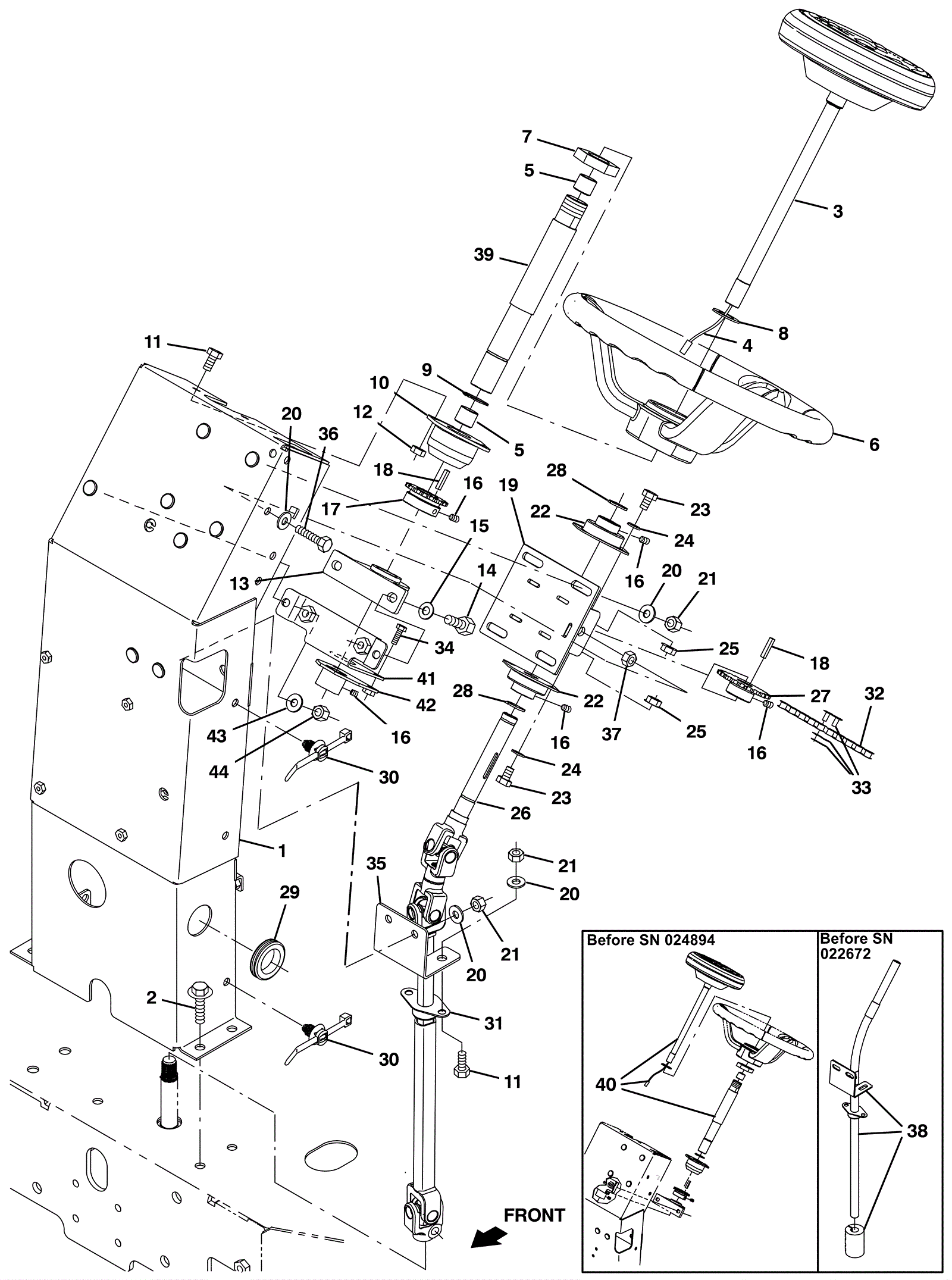

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
N/A
|
Not available |
1 |
(steering support weldment before SN 023679) |
|
1b |
275-2689
|
Steering support weldment |
1 |
(between SN 023680-024892) |
|
1c |
475-3854
|
Steering support weldment |
1 |
(after SN 026721) |
|
2 |
275-2690
|
Screw M10-1 1/2 x 35mm hex head (Tennant Industrial) |
4 |
|
|
3 |
275-2691
|
Instrument panel kit (Tennant Industrial) |
1 |
(after SN 024893) (includes 4) |
|
4 |
275-2692
|
Instrument panel wire harness kit (Tennant Industrial) |
1 |
(after SN 024893) |
|
5 |
275-7608
|
Bearing (Tennant Industrial) |
1 |
|
|
6 |
275-7609
|
Steering wheel (Tennant Industrial) |
1 |
|
|
7 |
275-7610
|
Nut (Tennant Industrial) |
1 |
|
|
8 |
275-7611
|
Thrust washer |
1 |
|
|
9 |
275-7620
|
Retaining ring (Tennant Industrial) |
1 |
|
|
10 |
275-7612
|
Flanged bearing (Tennant Industrial) |
1 |
|
|
11 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
6 |
|
|
12 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
13 |
275-7613
|
Pillowblock bearing (Tennant Industrial) |
1 |
|
|
14 |
175-6774
|
Screw M10-1 1/2 x 20 hex |
2 |
|
|
15 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
16 |
175-9339
|
Screw M6-1 x 8mm set socket |
6 |
|
|
17 |
275-2693
|
Steering sprocket (Tennant Industrial) |
1 |
|
|
18 |
175-3200
|
Square keyway |
1 |
|
|
19 |
275-7604
|
Support plate weldment (Tennant Industrial) |
1 |
|
|
20 |
999-0024
|
Washer 5/16 flat stainless steel |
11 |
|
|
21 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
10 |
|
|
22 |
275-7601
|
Flanged bearing (Tennant Industrial) |
2 |
|
|
23 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
4 |
|
|
24 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
25 |
999-0665
|
Nut M8-1.25 flange lock |
4 |
|
|
26 |
275-2694
|
Steering shaft assembly (Tennant Industrial) |
1 |
(after SN 022671) |
|
27 |
275-2695
|
Steering sprocket (Tennant Industrial) |
1 |
|
|
28 |
275-2003
|
Retaining ring (Tennant Industrial) |
2 |
(after SN 022671) |
|
29 |
175-3446
|
Rubber grommet |
1 |
|
|
30 |
175-3171
|
Cable clamp |
2 |
|
|
31 |
175-3201
|
Flanged bearing |
1 |
|
|
32 |
275-7614
|
Chain (Tennant Industrial) |
1 |
|
|
33 |
175-3207
|
Master link |
1 |
|
|
34 |
275-9295
|
Rubber grommet |
1 |
(after SN 024893) |
|
35 |
275-2696
|
Support bracket (Tennant Industrial) |
1 |
(after SN 022671) |
|
36 |
275-3036
|
SCREW, HEX, M8 X 1.25 X 40, 8.8, FL (Tennant Industrial) |
1 |
|
|
37 |
999-0579
|
Nut M8-1.25 hex coarse thread zinc |
1 |
|
|
38 |
275-2697
|
Steering shaft kit (Tennant Industrial) |
1 |
(before SN 022672) |
|
39 |
475-3776
|
Steering column shaft |
1 |
(after SN 024892) |
|
40 |
675-7882
|
Steering wheel assembly (Tennant Industrial) |
1 |
(before SN 024894) |
|
41 |
275-7602
|
Bracket weldment |
1 |
(after SN 024893) |
|
42 |
475-3577
|
Bracket plate weldment |
1 |
(after SN 024893) |
|
43 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
(after SN 024893) |
|
44 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
(after SN 024893) |
|
