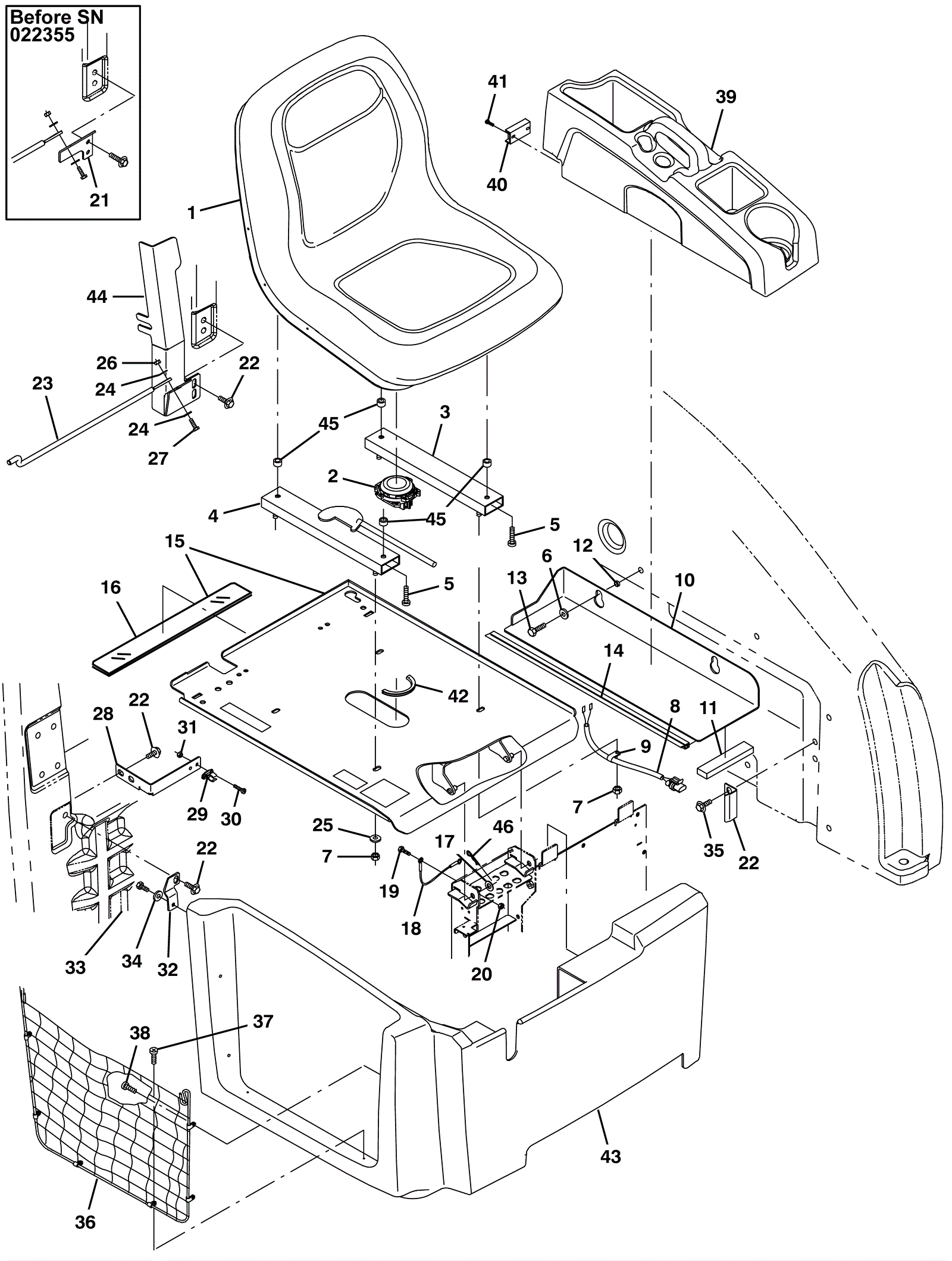

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-2669
|
Standard seat (Tennant Industrial) |
1 |
(includes item 2) |
|
2 |
275-2670
|
Seat switch (Tennant Industrial) |
1 |
|
|
3 |
275-8069
|
11 1/2 inch seat adjuster rail (OBSOLETE)- SEE NOTE |
1 |
|
|
4 |
275-2671
|
11 1/2 inch seat adjuster rail (Tennant Industrial) |
1 |
|
|
5 |
275-9278
|
SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) |
4 |
|
|
6 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
7 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
4 |
|
|
8 |
175-3190
|
Seat harness |
1 |
|
|
9 |
175-6768
|
P clamp (Tennant Industrial) |
1 |
|
|
10 |
275-2672
|
Tray mounting bracket (Tennant Industrial) |
1 |
|
|
11 |
275-2673
|
5 1/2 inch adhesive rubber seal (Tennant Industrial) |
1 |
|
|
12 |
275-2674
|
Sleeve (Tennant Industrial) |
2 |
|
|
13 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
|
14 |
275-2675
|
2 foot wiper seal (Tennant Industrial) |
1 |
|
|
15 |
275-2676
|
Seat plate weldment (Tennant Industrial) |
1 |
(includes 16) |
|
16 |
275-8159
|
Rubber pad |
1 |
|
|
17 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
18 |
275-2677
|
Cable (Tennant Industrial) |
1 |
|
|
19 |
999-1228
|
Screw M5-.8 x 10mm hex head stainless steel |
1 |
|
|
20 |
175-2894
|
Nut M5-.8 hex nylon locking |
1 |
|
|
21 |
275-2678
|
Wire cover weldment (Tennant Industrial) |
1 |
(before SN 022355) |
|
22 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
7 |
|
|
23 |
275-2679
|
Prop rod weldment (Tennant Industrial) |
1 |
|
|
24 |
175-2289
|
Washer |
2 |
|
|
25 |
999-0024
|
Washer 5/16 flat stainless steel |
3 |
|
|
26 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
27 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
28 |
275-2680
|
Prop rod clip mounting angle (Tennant Industrial) |
1 |
|
|
29 |
275-2681
|
Plastic rod grip clip (black) (Tennant Industrial) |
1 |
|
|
30 |
175-5310
|
Screw 4 x 45/64 x 16 pan head |
2 |
|
|
31 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
32 |
275-2682
|
Seat shroud mounting angle (Tennant Industrial) |
1 |
|
|
33 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
34 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
35 |
275-2683
|
Seat shroud angle keeper (Tennant Industrial) |
1 |
|
|
36 |
275-2684
|
Cloth mess assembly (Tennant Industrial) |
1 |
|
|
37 |
175-9366
|
Screw 8-10 x 1/2 pan head plastic |
2 |
|
|
38 |
275-2685
|
Screw M5-1 x 12 button head black (Tennant Industrial) |
4 |
|
|
39 |
275-2686
|
Console tray (Tennant Industrial) |
1 |
|
|
40 |
275-3924
|
MAGNET, DRIVE BRUSH (Tennant Industrial) |
1 |
|
|
41 |
275-2687
|
Screw M4-.7 x 10 pan head phillips (Tennant Industrial) |
2 |
|
|
42 |
275-8203
|
Molding |
1 |
|
|
43 |
275-2688
|
Seat shroud (Tennant Industrial) |
1 |
|
|
44 |
275-2678
|
Wire cover weldment (Tennant Industrial) |
1 |
(after SN 022354) |
|
45 |
175-0699
|
SPACER, LATCH, FLTR (Tennant Industrial) |
4 |
|
|
46 |
175-2113
|
Cotter pin |
1 |
|
|
