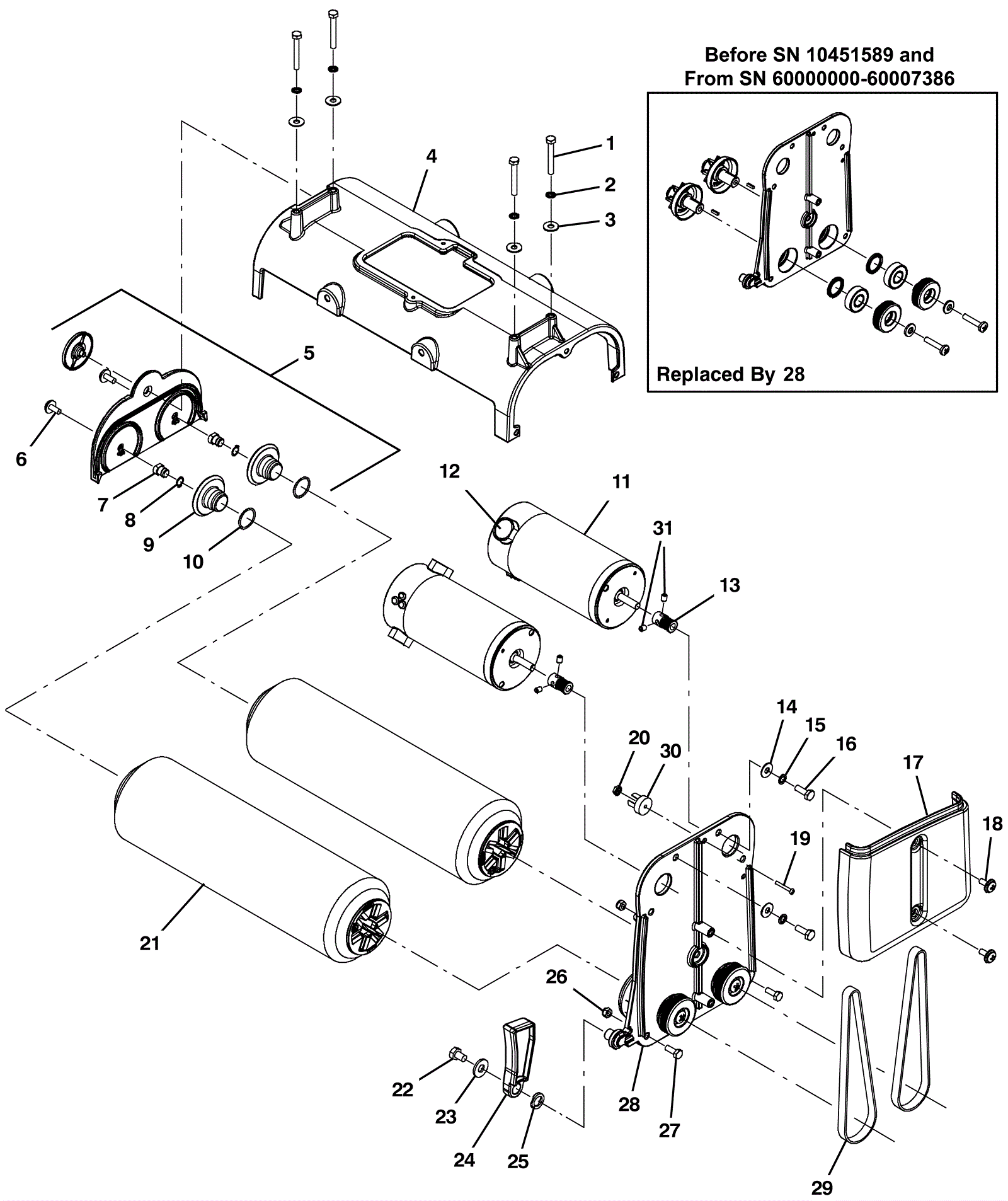

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0781
|
Screw M6-1 x 45mm hex head |
8 |
|
|
2 |
175-4544
|
Washer M6 locking |
8 |
|
|
3 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
4 |
275-9187
|
Brush housing |
1 |
|
|
5 |
275-6038
|
Brush door kit with hardware |
1 |
(includes 6-10) |
|
6 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
|
7 |
275-2416
|
Shaft idler plug |
2 |
|
|
8 |
275-2415
|
Retaining ring |
2 |
|
|
9 |
275-2414
|
Brush idler hub |
2 |
|
|
10 |
275-2413
|
Seal |
2 |
|
|
11a |
275-9189
|
120V brush motor |
2 |
(includes 12) |
|
11b |
475-2480
|
MOTOR, ELE, 230VDC 1600RPM .25HP 1.2A |
2 |
(includes 12) |
|
12 |
275-9190
|
Carbon brush (pkg of 2) |
4 |
|
|
13 |
275-9191
|
Sheave |
2 |
|
|
14 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
15 |
175-4544
|
Washer M6 locking |
4 |
|
|
16 |
275-2405
|
Screw 1/4-20 x 3/4 hex head |
4 |
|
|
17 |
275-9192
|
Belt cover |
1 |
|
|
18 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
|
19 |
999-0102
|
Screw 6-32 x 1 round head slotted zinc plated |
1 |
|
|
20 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
1 |
|
|
21 |
275-4798
|
Roller assembly |
2 |
|
|
22 |
999-1415
|
Screw M8-1.25 x 12mm hex head stainless steel |
1 |
|
|
23 |
175-4544
|
Washer M6 locking |
1 |
|
|
24 |
275-9193
|
Kickstand support |
1 |
|
|
25 |
175-3058
|
Washer 3/4 wave |
1 |
|
|
26 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
27 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
3 |
|
|
28 |
275-9194
|
Motor mount bracket kit with bearing and seal |
1 |
|
|
29 |
275-9135
|
Belt with installation tool (pkg of 2) |
1 |
|
|
30 |
175-4009
|
Rectifier |
1 |
|
|
31 |
175-9339
|
Screw M6-1 x 8mm set socket |
4 |
|
|
N/S |
475-1396
|
FILTER, BRUSH, 270 VDC, 3A |
1 |
|
|
