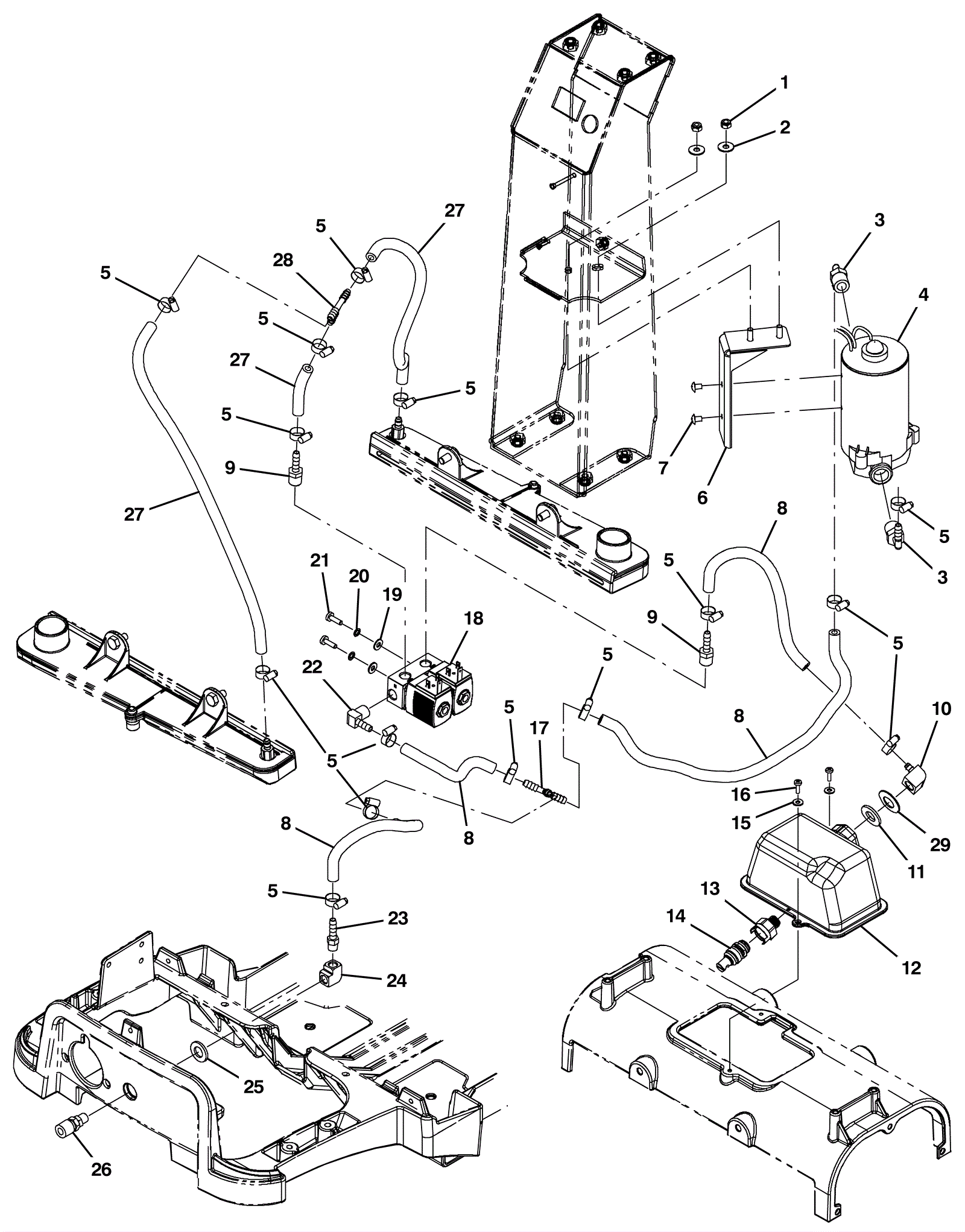

R3 Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
2 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
3 275-2390 90 degree fitting $6.60 2 ships same day
4a 275-9125 Pump $365.75 1 ships same day
4b 475-2518 PUMP, SOLTN, ELE, 230VAC $374.22 1 usually ships 5-16 days
5 175-3594 Hose clamp $3.96 15 ships same day
6 275-2392 Bracket $31.79 1 ships same day
7a 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 (E5) ships same day
7b 999-0056 Screw 10-32 x 3/8 round head slotted zinc plated $0.99 1 (R3) ships same day
8 275-2393 Hose 1/4 x 60 inch $33.45 1 usually ships 5-16 days
9 175-6024 Hosebarb $4.95 2 usually ships 5-16 days
10 275-1523 90 degree brass elbow $27.39 1 usually ships 5-16 days
11 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
12 275-9184 Splash nozzle shroud $11.11 1 usually ships 1-5 days
13a 275-9185 Spray nozzle attachment $62.81 1 (includes 14a) (E5) usually ships 5-16 days
13b 375-1588 Nozzle assembly $80.52 1 (R3) (includes 14b) usually ships 5-16 days
14a 275-9185 Spray nozzle attachment $62.81 1 (E5) usually ships 5-16 days
14b 275-9136 Spray nozzle $44.33 1 (R3) usually ships 5-16 days
15 999-0266 Washer #8 SAE flat stainless steel $0.99 2 ships same day
16 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 2 ships same day
17 175-7303 1/4 inch union tee $10.12 1 usually ships 5-16 days
18a 275-9186 Solution manifold $398.86 1 (120V) usually ships 5-16 days
18b 475-2558 MANIFOLD, SOLTN, 230 VOLT $445.94 1 (230V) usually ships 5-16 days
19 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
20 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
21 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
22 175-4307 Hosebarb $11.99 1 usually ships 5-16 days
23 175-1659 Fitting $3.96 1 usually ships 5-16 days
24 175-1649 90 degree elbow $5.83 1 ships same day
25 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
26 175-1652 1/8 inch female brass quick coupler $35.20 1 ships same day
27 175-6023 Hose 1/4 x 36 inch (gray) $20.90 1 usually ships 5-16 days
28 175-7303 1/4 inch union tee $10.12 1 usually ships 5-16 days
29 275-5271 Washer 9/16 flat belleville $3.96 1 usually ships 5-16 days
