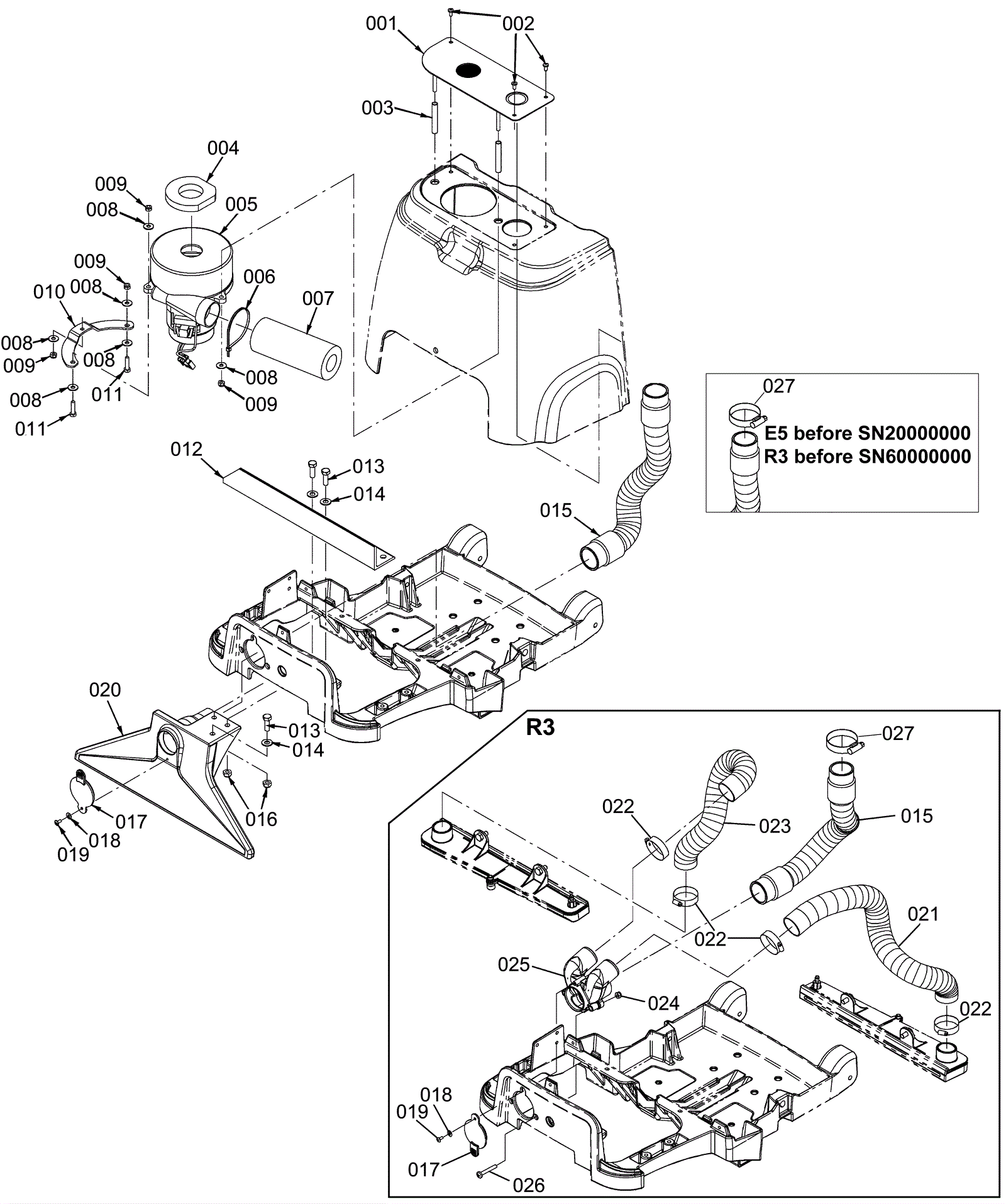

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-2385
|
Plate |
1 |
|
|
002 |
999-1090
|
Screw M5-.8 x 10mm pan head phillips zinc plated |
3 |
|
|
003 |
175-1919
|
Spacer |
2 |
|
|
004 |
675-9895
|
Vacuum motor gasket |
1 |
|
|
005a |
275-9134
|
120V 2 stage vacuum motor |
1 |
(includes 5b, 8) |
|
005b |
375-1317
|
Carbon brush kit |
1 |
|
|
005c |
275-9124
|
240V vacuum motor |
1 |
(includes 5d, 8) |
|
005d |
475-1206
|
VR, BRUSH KIT, VAC FAN 1071840 |
1 |
|
|
005e |
991-9278
|
120V 2 stage vacuum motor dual ball tangential |
1 |
(NON-OEM) |
|
006 |
175-7795
|
Cable tie |
1 |
|
|
007 |
175-2979
|
Vacuum exhaust muffler |
1 |
|
|
008 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
009 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
010 |
275-2386
|
Vacuum motor mounting plate |
1 |
|
|
011 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
2 |
|
|
012 |
275-2387
|
Brace |
1 |
(E5) |
|
013 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
3 |
(E5) |
|
014 |
999-0024
|
Washer 5/16 flat stainless steel |
3 |
(E5) |
|
015 |
275-2388
|
Vacuum hose |
1 |
|
|
016 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
3 |
(E5) |
|
017 |
175-9823
|
Cap seal |
1 |
|
|
018 |
999-0393
|
Washer 3/16 flat aluminum |
1 |
|
|
019 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
1 |
|
|
020 |
775-0401
|
Floor tool |
1 |
(E5) |
|
021 |
275-9181
|
Vacuum hose |
1 |
(R3) |
|
022 |
997-2000
|
Hose clamp |
4 |
(qty 1 for E5) |
|
023 |
275-9182
|
Vacuum hose |
1 |
(R3) |
|
024 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
(R3) |
|
025 |
275-9183
|
Manifold |
1 |
(R3) |
|
026 |
999-1325
|
Screw M6-1 x 40mm pan head stainless steel |
2 |
(R3) |
|
027 |
997-2000
|
Hose clamp |
1 |
(E5 before SN 60000000, R3 before SN 20000000) |
|
N/S |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
(E5 before SN 60000000) |
|
