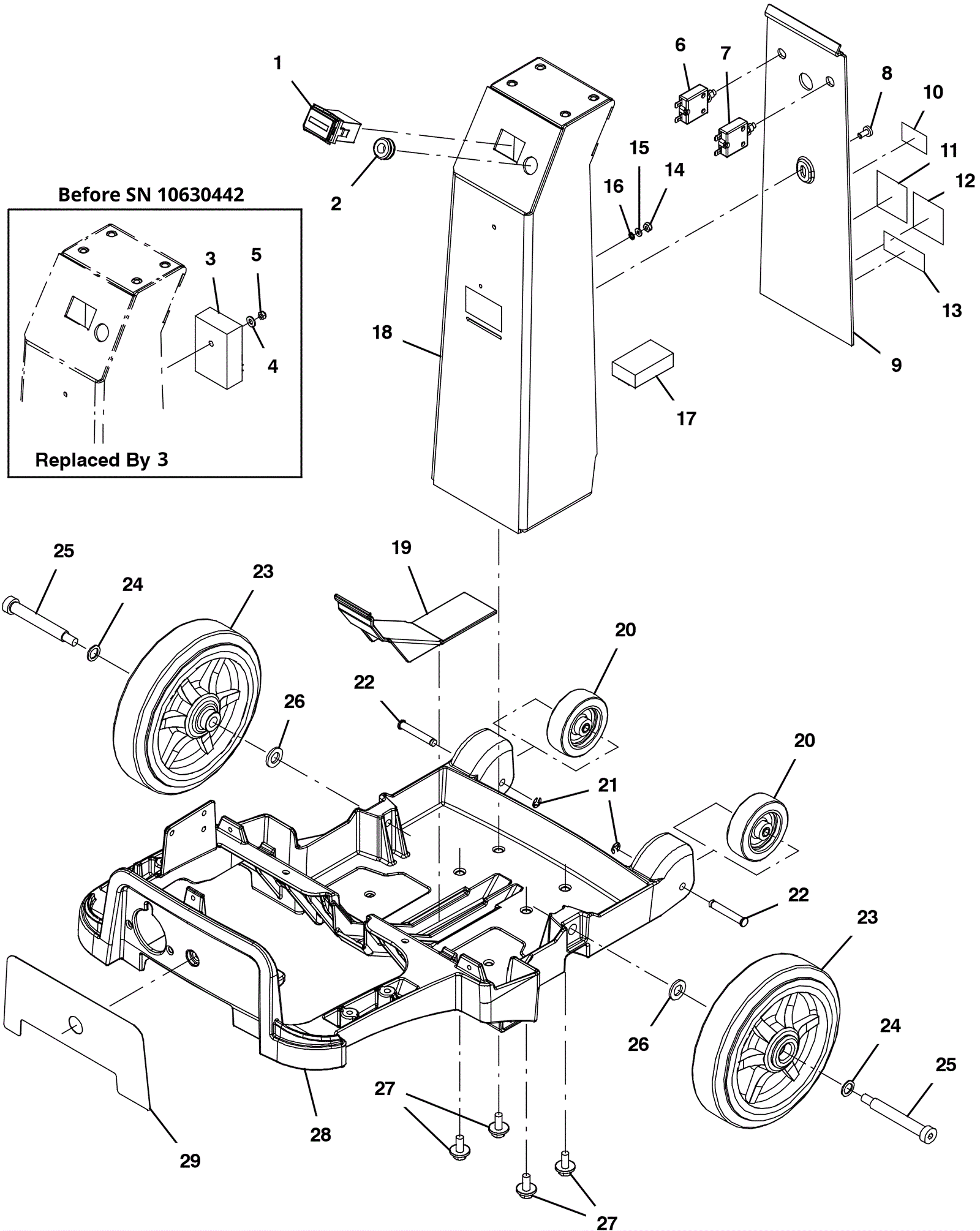

E5 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 275-9900 Hour meter $52.69 1 ships same day
002 275-2364 Rubber grommet (Tennant Industrial) $3.51 1 usually ships 5-16 days
003 275-4997 Bypass timer kit $57.20 1 ships same day
004 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
005 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
006a 175-2557 5amp circuit breaker $15.18 1 (brush) (120V) ships same day
006b 475-1515 CIRCUITBREAKER, 2.5 AMP, 230 VOLT $44.88 1 (brush) (230V) usually ships 5-16 days
007a 175-0842 15amp circuit breaker $15.18 1 (main) (120V) ships same day
007b 475-1409 CIRCUITBREAKER, 7.5 AMP, 230 VOLT $37.07 1 (main) (230V) usually ships 5-16 days
008 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 1 (230V) ships same day
009a 275-2351 Column kit with decal $355.41 1 (120V) (includes 10a) usually ships 5-16 days
009b 275-9167 Column cover kit with decal $123.09 1 (120V) (inclues 10a) usually ships 5-16 days
009c 275-2368 Column cover $153.23 1 (includes 10b-13) (230V) usually ships 1-5 days
010 275-2352 Warning decal $9.35 1 usually ships 1-5 days
010b N/A Not available Call for price 1 (safety decal) usually ships 3-26 days
011 275-2369 Flammable material decal $12.87 1 (230V) usually ships 5-16 days
012 275-2370 Read manual decal $16.61 1 (230V) usually ships 5-16 days
013 275-2371 Warning decal $46.20 1 (230V) usually ships 1-5 days
014 275-2353 Nut #8-32 hex locking $1.21 1 usually ships 1-5 days
015 999-1158 Washer #6 flat stainless steel $0.99 1 ships same day
016 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
017 275-2350 Filter pump $43.12 1 usually ships 1-5 days
018 275-2351 Column kit with decal $355.41 1 usually ships 5-16 days
019 275-2354 Rear frame cover $5.28 1 usually ships 5-16 days
020 175-0117 Guide wheel with bushing $9.68 2 ships same day
021 275-2355 Retaining ring $2.42 2 ships same day
022 275-2356 Clevis pin $8.25 2 ships same day
023 275-2357 Wheel assembly $52.47 2 ships same day
024 275-2358 Washer flat $3.30 2 ships same day
025 275-2359 Bolt 3/8-16 x 1/2 x 3 1/4 shoulder $10.01 2 ships same day
026 175-5407 Washer M12 flat stainless steel $3.19 2 usually ships 5-16 days
027 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 4 ships same day
028 275-2360 Frame kit $699.60 1 (includes 29) usually ships 5-16 days
029 275-2361 Tennant extractor decal $16.50 1 usually ships 5-16 days
N/S 275-2362 Chassis harness $84.48 1 usually ships 1-5 days
