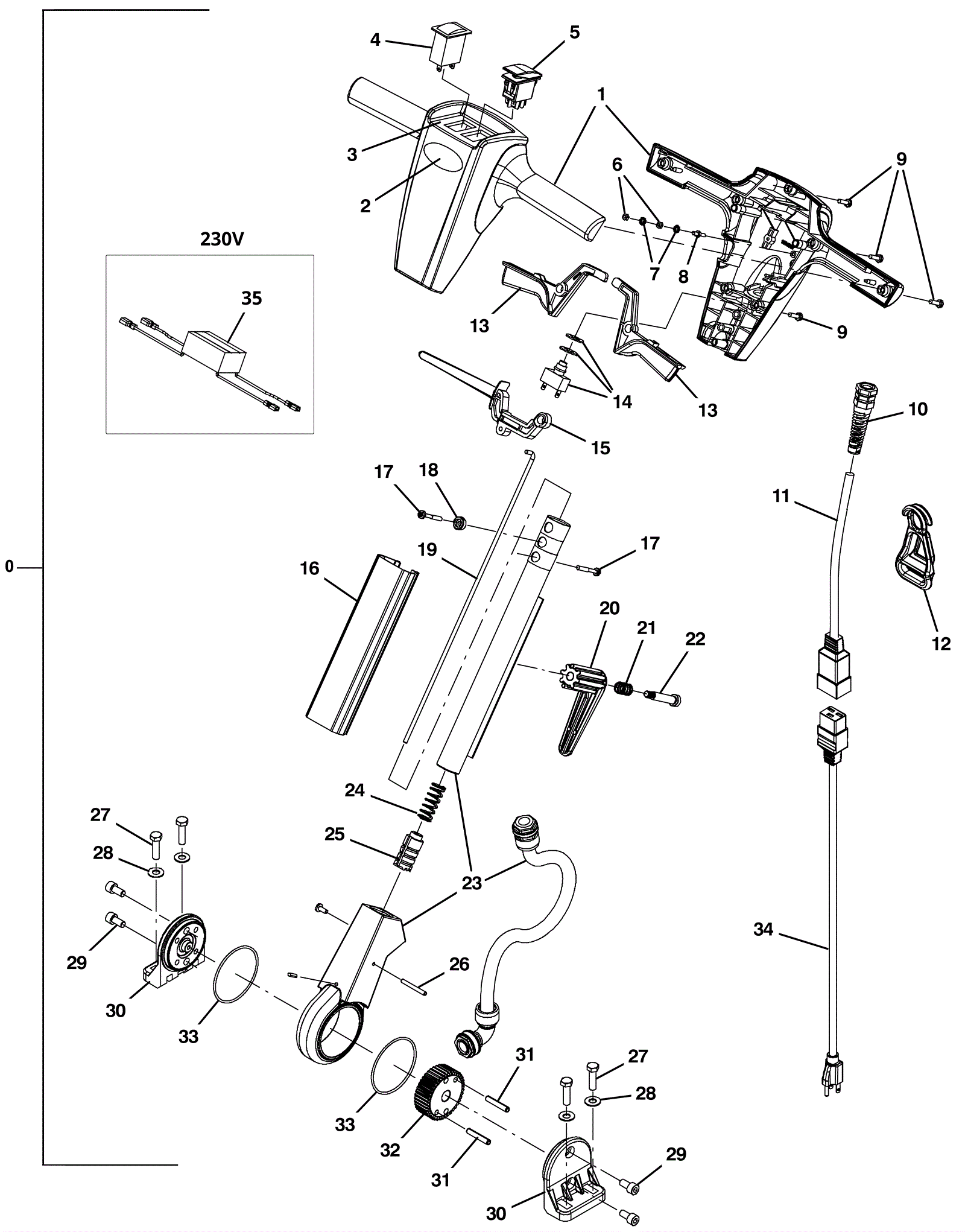

R3 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
0a 275-9161 Handle assembly $1,005.95 1 (R3) (120V) (includes 1-33) usually ships 1-5 days
0b 375-7854 Handle $1,019.92 1 (R3) (230V) (includes 1-33) usually ships 5-16 days
0c 275-2336 Handle assembly $965.47 1 (E5) (120V) (includes 1-33) usually ships 5-16 days
0d 375-7853 Handle assembly Call for price 1 (E5) (230V) (includes 1-33) usually ships 5-16 days
1a 275-9162 Handle cover $197.67 1 (R3) (includes 2 and 3a) ships same day
1b 275-2337 Handle cover kit $199.21 1 (E5) (includes 2 and 3b) usually ships 5-16 days
2 275-2338 Tennant logo decal $4.29 1 usually ships 1-5 days
3a 275-9163 Operational decal $4.51 1 (R3) usually ships 5-16 days
3b 275-2339 Instrument panel decal $4.07 1 (E5) usually ships 1-5 days
4a 275-9165 120V ammeter gauge $96.91 1 (R3) (120V) usually ships 5-16 days
4b 475-1805 GAUGE, AMMETER, 230VAC, 2.25A [RLR PRS] $79.64 1 (R3) (230V) usually ships 5-16 days
5a 175-4822 Rocker switch $40.81 1 (R3) ships same day
5b 175-1847 Rocker switch $49.50 1 (E5) ships same day
6 999-0869 Nut M4-.7 hex coarse thread plain finish $0.99 2 ships same day
7 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
8 275-2313 Screw M4-.7 x 12mm hex head double threaded $1.43 1 usually ships 5-16 days
9 175-7660 Screw #10-14 x .675 shoulder self-tapping $4.18 7 ships same day
10 175-0001 Strain relief $12.32 1 ships same day
11a 275-9149 14/3 pigtail cord 16 inch $22.66 1 (120V) usually ships 5-16 days
11b 475-0835 CORD, 1.5MM SQ/3, 16.0L, W/ RECEPT, BLK $11.99 1 (230V) usually ships 5-16 days
12a 275-2340 Clip (OBSOLETE) $6.93 1 (before SN 10876910) usually ships 5-16 days
12b 175-0236 Cord belt clip $10.01 1 (after SN 10876909) ships same day
13 275-9132 Switch lever $10.12 2 ships same day
14 175-6400 Push button switch kit $31.13 1 ships same day
15 275-2310 Handle adjustment lever $8.25 1 ships same day
16 275-2341 Handle cover $10.12 1 usually ships 5-16 days
17 275-4694 Screw #10-14 x 1 1/2 shoulder self-tapping $2.42 2 usually ships 5-16 days
18 275-2308 Flanged bushing $3.96 1 usually ships 5-16 days
19 275-2342 Release rod $4.29 1 usually ships 5-16 days
20 175-5503 Quick release cord hook $7.48 1 ships same day
21 175-5504 Spring $3.96 1 usually ships 5-16 days
22 175-1719 Shoulder bolt $4.95 1 usually ships 5-16 days
23 275-2343 Handle tube assembly with wire harness $139.92 1 ships same day
24 275-2322 Spring $2.42 1 usually ships 5-16 days
25 275-2319 Plunger kit $65.34 1 usually ships 5-16 days
26 275-2325 Roll pin $1.43 1 usually ships 5-16 days
27 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 4 ships same day
28 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
29 999-0802 Screw M8-1.25 x 16mm socket head $0.99 4 ships same day
30 275-2314 Handle pivot $39.82 2 usually ships 5-16 days
31 275-2316 Roll pin $1.43 2 usually ships 5-16 days
32 275-2317 Locking gear $119.46 1 usually ships 5-16 days
33 175-3967 Seal $5.28 2 ships same day
34a 275-9119 14/3 extension cord 50 foot $197.67 1 (120V) ships same day
34b 375-1576 Extension cord $183.70 1 (230V) usually ships 5-16 days
35 475-1474 FILTER, HANDLE, 250 VAC, 50/60HZ, 8 AMP $42.02 1 (230V) usually ships 5-16 days
