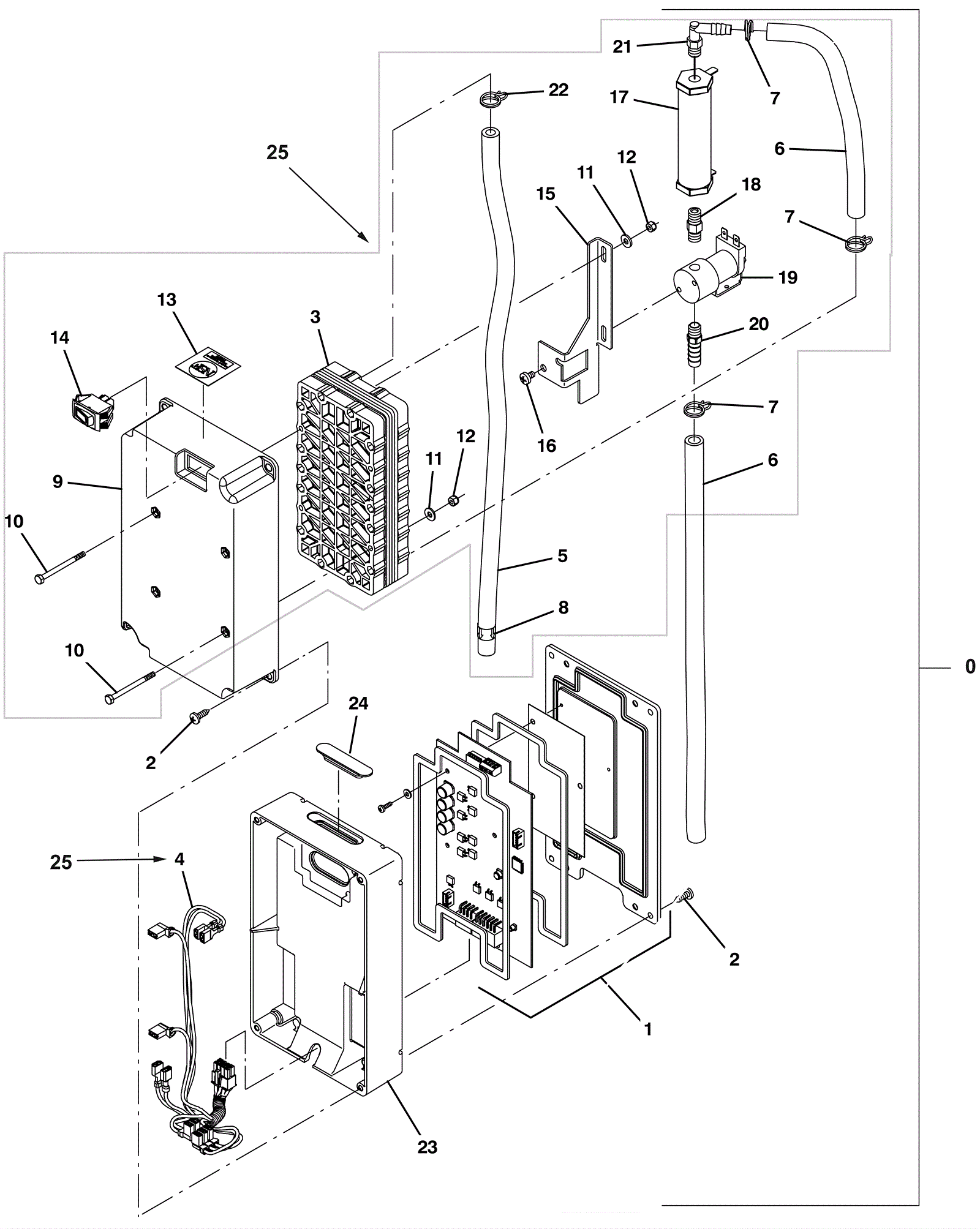

T16 ec-H20 Module Assembly Breakdown

#PartDescriptionPriceReqNotesAvailability
0 275-7912 ec-H2O module kit (Tennant Industrial) $3,271.86 1 (includes 1-25) usually ships 1-5 days
1 275-4775 Controller replacement kit (ec-H2O) $465.19 1 usually ships 5-16 days
2 999-0531 Screw M5-.8 x 16mm pan head slotted zinc $0.99 8 ships same day
3 275-4956 5 plate electrode $1,019.92 1 usually ships 1-5 days
4 275-4958 Main wiring harness $27.28 1 usually ships 5-16 days
5 275-2631 2 foot PVC hose (braided) $59.18 1 usually ships 1-5 days
6 275-4939 1 foot PVC hose clear $18.48 2 usually ships 5-16 days
7 275-2632 Hose clamp (yellow) (Tennant Industrial) $4.01 3 usually ships 1-5 days
8 275-5731 Direction decal $3.08 1 usually ships 5-16 days
9 275-4957 Front module housing $11.99 1 usually ships 1-5 days
10 999-1947 Screw M4-.7 x 50 hex stainless steel $1.47 4 usually ships 11-24 days
11 999-0266 Washer #8 SAE flat stainless steel $0.99 4 ships same day
12 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
13 275-2633 Ec-H20 module decal $14.30 1 usually ships 1-5 days
14 275-4773 Rocker switch $7.48 1 ships same day
15 275-2634 Large valve bracket (Tennant Industrial) $19.21 1 usually ships 1-5 days
16 275-2635 Screw 10-32 x .31 flat head phillips $2.75 2 usually ships 1-5 days
17 275-9936 Cylindrical electrode $43.23 1 usually ships 5-16 days
18 275-4770 Straight brass fitting $15.07 1 usually ships 5-16 days
19 275-2636 Solenoid valve (Tennant Industrial) $198.40 1 usually ships 1-5 days
20 175-8707 Strainer plastic fitting $4.95 1 usually ships 1-5 days
21 275-2637 90 degree nylon elbow fitting (Tennant Industrial) $6.01 1 usually ships 1-5 days
22 175-3671 Hose clamp $3.96 1 ships same day
23 275-4761 Rear module housing $10.12 1 usually ships 1-5 days
24 275-2638 Grommet $3.08 1 usually ships 1-5 days
25 275-2630 Ec-H20 plumbing kit $2,127.62 1 (includes 3-22) usually ships 1-5 days
