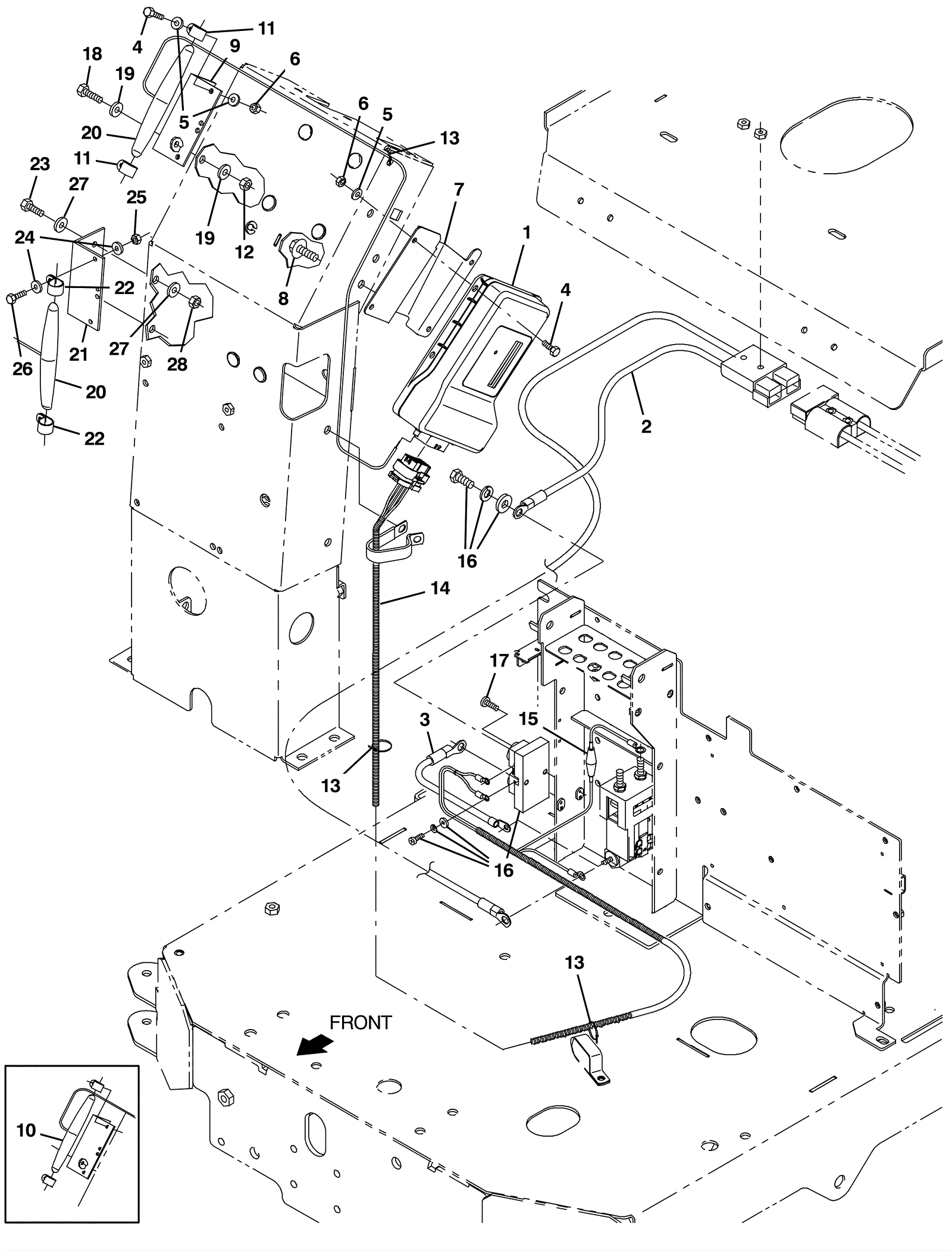

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-2615
|
Telemetry control box assembly kit |
1 |
|
|
2 |
275-6344
|
Telemetry cable assembly (Tennant Industrial) |
1 |
|
|
3 |
275-6345
|
Telemetry cable (black) (Tennant Industrial) |
1 |
|
|
4 |
175-0837
|
Bolt M5-.8 x 16mm hex head |
4 |
|
|
5 |
999-0998
|
Washer #10 flat stainless steel |
8 |
|
|
6 |
999-0740
|
Nut M5-.8 hex stainless steel |
4 |
|
|
7 |
275-6346
|
Telemetry bracket (Tennant Industrial) |
1 |
|
|
8 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
1 |
|
|
9 |
275-7896
|
Antennna mounting angle (Tennant Industrial) |
1 |
|
|
10 |
275-7897
|
Antenna |
1 |
(before SN 029690) |
|
11 |
175-0988
|
P clamp |
2 |
|
|
12 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
13 |
175-2162
|
Nylon wire tie |
3 |
|
|
14 |
275-6347
|
Telemetry wire harness (Tennant Industrial) |
1 |
(includes 15) |
|
15 |
275-7904
|
Fuse (Tennant Industrial) |
1 |
|
|
16 |
275-7898
|
250amp shunt |
1 |
|
|
17 |
175-5310
|
Screw 4 x 45/64 x 16 pan head |
1 |
|
|
18 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
2 |
|
|
19 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
20 |
375-7808
|
Telem antenna |
2 |
(after SN 029689) |
|
21 |
275-7896
|
Antennna mounting angle (Tennant Industrial) |
1 |
(after SN 029689) |
|
22 |
175-0988
|
P clamp |
2 |
(after SN 029689) |
|
23 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
2 |
(after SN 029689) |
|
24 |
999-0998
|
Washer #10 flat stainless steel |
4 |
(after SN 029689) |
|
25 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
(after SN 029689) |
|
26 |
175-5310
|
Screw 4 x 45/64 x 16 pan head |
2 |
(after SN 029689) |
|
27 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
(after SN 029689) |
|
28 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
(after SN 029689) |
|
