| # | Part | Description |
Req | Notes | Availability |
|---|

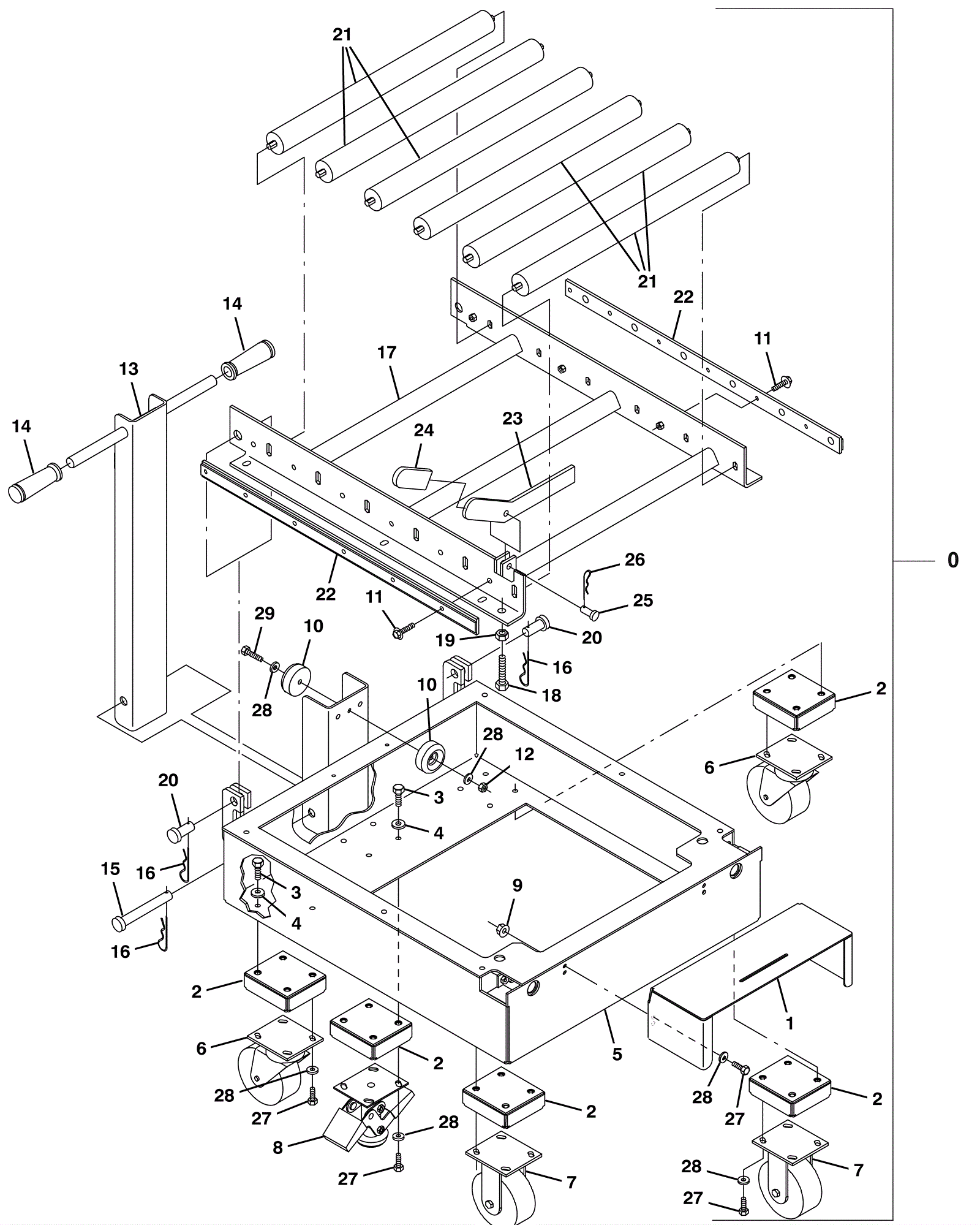

0 |
275-6341
|
Rollout battery cart kit (Tennant Industrial) |
1 |
(includes 1-29) |
|
1 |
275-6342
|
Battery bumper (Tennant Industrial) |
1 |
|
|
2 |
275-6343
|
Support housing weldment (Tennant Industrial) |
5 |
|
|
3 |
275-0025
|
Screw M10-1.5 x 25 hex head 8.8 |
20 |
|
|
4 |
999-0032
|
Washer 3/8 USS flat plain finish |
20 |
|
|
5 |
275-0013
|
Battery cart frame |
1 |
|
|
6a |
175-2100
|
5 inch caster wheel assembly (gray) |
2 |
|
|
6b |
991-2011
|
Caster wheel assembly |
2 |
(NON-OEM) |
|
7 |
275-7218
|
5 inch rigid caster |
2 |
|
|
8 |
275-0015
|
Floor lock |
1 |
|
|
9 |
999-0665
|
Nut M8-1.25 flange lock |
4 |
|
|
10 |
275-0029
|
Rubber bumper |
2 |
|
|
11 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
12 |
|
|
12 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
13 |
275-0024
|
Battery cart handle weldment |
1 |
|
|
14a |
675-9894
|
Handle grip |
2 |
|
|
14b |
991-8571
|
Handle grip |
2 |
(NON-OEM) |
|
15 |
175-9742
|
Clevis pin |
1 |
|
|
16 |
275-0028
|
Cotter hair pin |
3 |
|
|
17 |
275-0018
|
Roller mounting frame weldment |
1 |
|
|
18 |
275-0034
|
Screw M12-1.75 x 50 hex head fl |
2 |
|
|
19 |
275-0035
|
Nut M12-1.75 hex standard |
2 |
|
|
20 |
275-0027
|
Clevis pin |
2 |
|
|
21 |
275-0019
|
Steel roller assembly |
6 |
|
|
22 |
275-0017
|
Roller shaft retainer |
2 |
|
|
23 |
275-0030
|
Battery stop flat arm |
1 |
|
|
24 |
275-0031
|
Handle grip |
1 |
|
|
25 |
275-0032
|
Clevis pin |
1 |
|
|
26 |
175-5402
|
Cotter hair pin |
1 |
|
|
27 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
24 |
|
|
28 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
26 |
|
|
29 |
175-3436
|
Bolt 8mm-1.25 x 40mm hex head |
1 |
|
|
