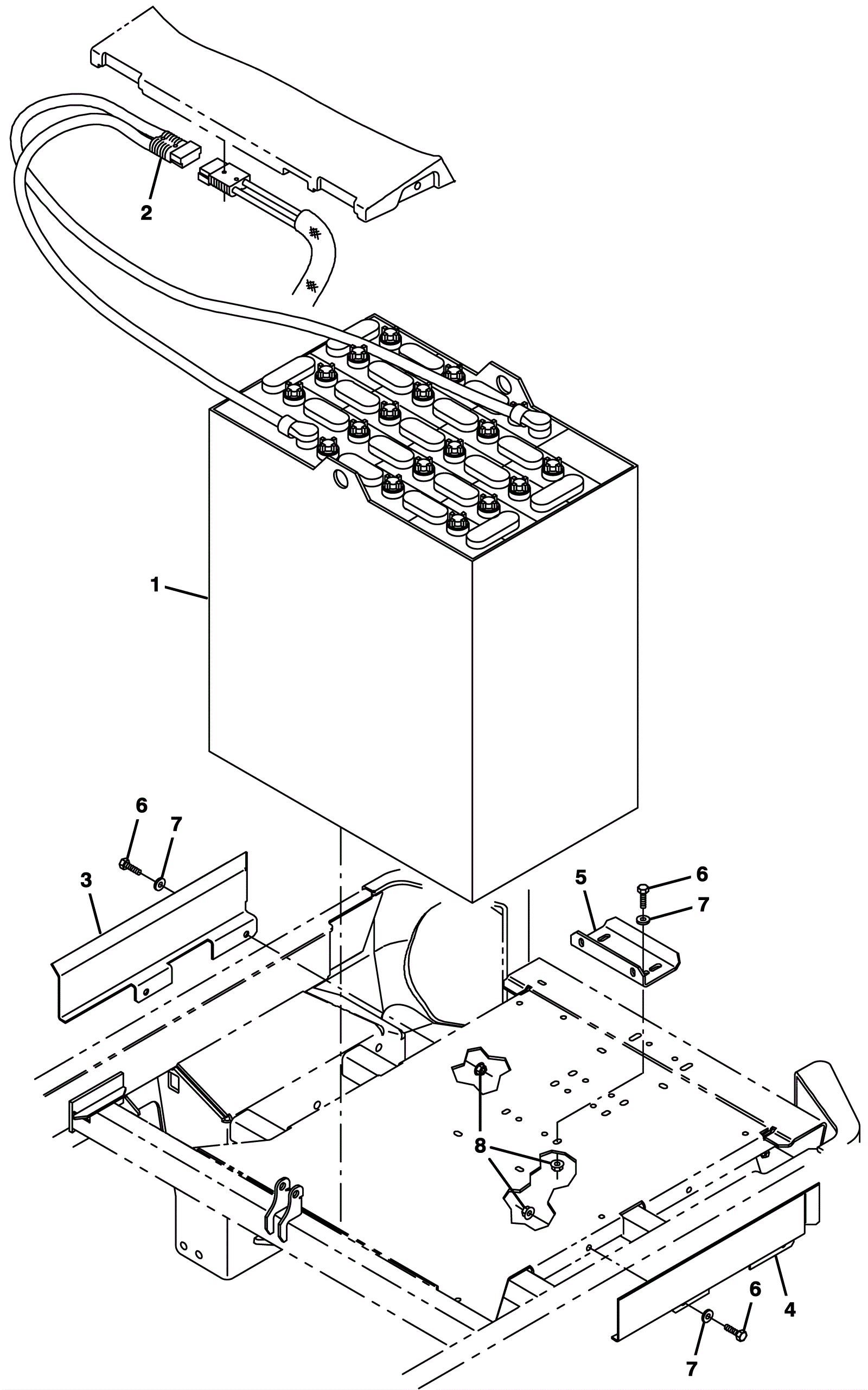

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
1 |
|
|
2 |
275-4284
|
CONNECTOR, 350A, GRAY [ANDERSON] (Tennant Industrial) |
1 |
|
|
3 |
275-2627
|
Right hand battery spacer (gray) (Tennant Industrial) |
1 |
|
|
4 |
275-2628
|
Left hand battery spacer (gray) (Tennant Industrial) |
1 |
|
|
5 |
275-2629
|
Rear hand battery spacer (gray) (Tennant Industrial) |
1 |
|
|
6 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
6 |
|
|
7 |
999-9097
|
Washer M8 flat stainless steel |
6 |
|
|
8 |
999-0665
|
Nut M8-1.25 flange lock |
6 |
|
|
