| # | Part | Description |
Req | Notes | Availability |
|---|

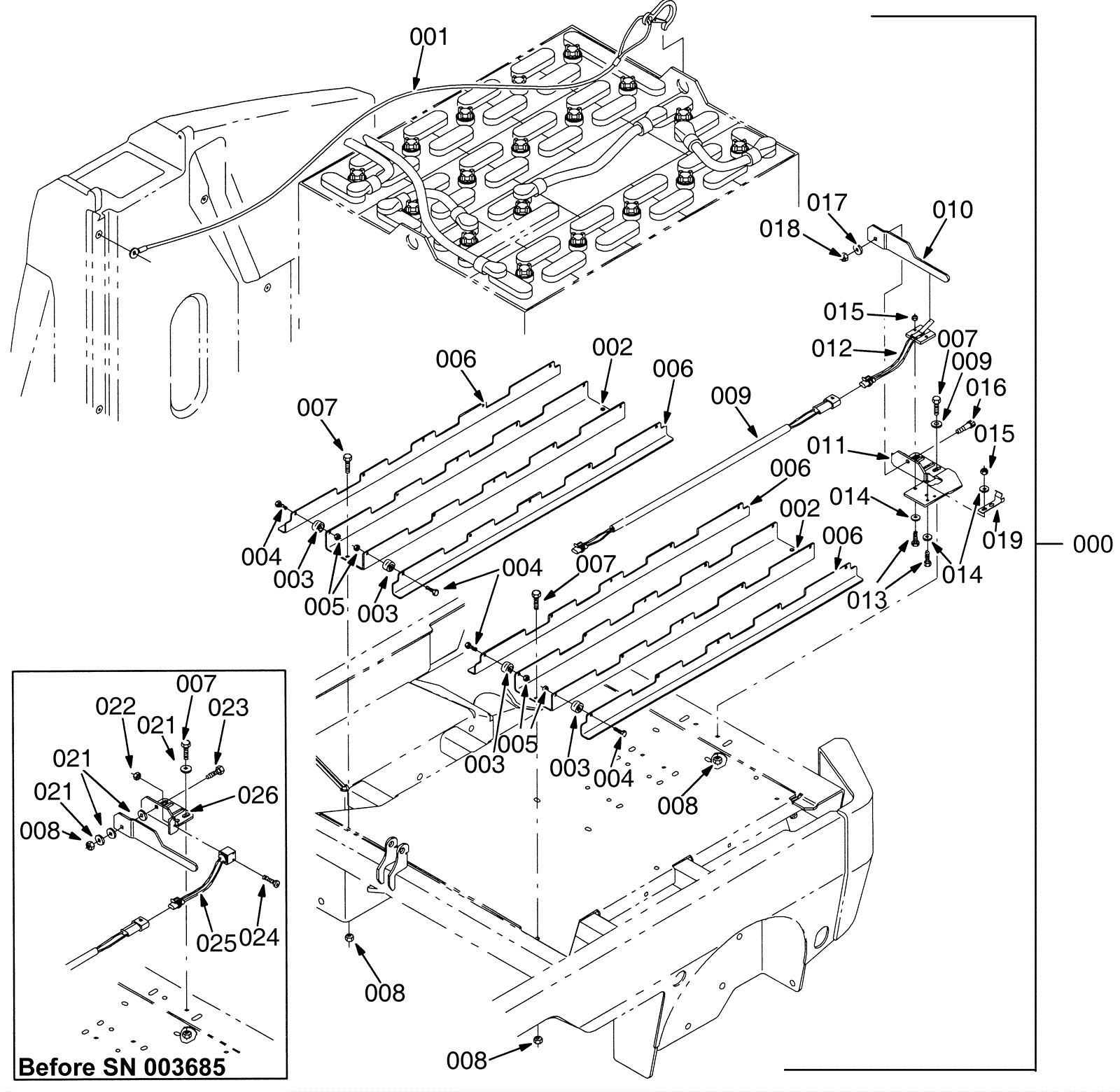

000 |
275-8733
|
BATTERY KIT, R/O, CI (Tennant Industrial) |
1 |
(includes 001-020) |
|
001 |
275-8734
|
CABLE, GLV .19D 036.5L .38EYE / HOOK (Tennant Industrial) |
1 |
|
|
002 |
275-2622
|
Battery channel (gray) (Tennant Industrial) |
2 |
|
|
003 |
275-0003
|
Bearing |
20 |
|
|
004 |
175-9662
|
Screw M6-1 x 35mm hex head stainless steel |
20 |
|
|
005 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
20 |
|
|
006 |
275-2623
|
Battery angle (gray) (Tennant Industrial) |
4 |
|
|
007 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
6 |
|
|
008 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
6 |
|
|
009 |
275-8737
|
HARNESS, BATTERY, R/O [7300/8300] (Tennant Industrial) |
1 |
|
|
010 |
275-2624
|
Battery bar weldment (Tennant Industrial) |
1 |
|
|
011 |
275-2625
|
Iron stop weldment (gray) (Tennant Industrial) |
1 |
(after SN 003684) |
|
012 |
275-8740
|
SWITCH, LIMIT, NO (Tennant Industrial) |
1 |
(after SN 003684) |
|
013 |
175-6939
|
Screw M5 x 16mm stainless steel |
4 |
(after SN 003684) |
|
014 |
999-0998
|
Washer #10 flat stainless steel |
6 |
(after SN 003684) |
|
015 |
999-0740
|
Nut M5-.8 hex stainless steel |
4 |
(after SN 003684) |
|
016 |
275-8741
|
BOLT, SHLD, .38D X 0.38, .31-18 (Tennant Industrial) |
1 |
(after SN 003684) |
|
017 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
(after SN 003684) |
|
018 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
1 |
(after SN 003684) |
|
019 |
275-8742
|
LATCH, HANDLE (Tennant Industrial) |
1 |
(after SN 003684) |
|
020 |
999-9097
|
Washer M8 flat stainless steel |
2 |
(after SN 003684) |
|
021 |
999-9097
|
Washer M8 flat stainless steel |
5 |
(before SN 003685) |
|
022 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
5 |
(before SN 003685) |
|
023 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
(before SN 003685) |
|
024 |
175-2079
|
Screw M4-.07 x 35mm pan head stainless steel |
2 |
(before SN 003685) |
|
025 |
275-5093
|
LOCK ASSY KIT, BATTERY, R/O, REPLMT (Tennant Industrial) |
1 |
(Battery lock assembly) (before SN 003685) |
|
026 |
275-5093
|
LOCK ASSY KIT, BATTERY, R/O, REPLMT (Tennant Industrial) |
1 |
(Stop weldment) (before SN 003685) |
|
