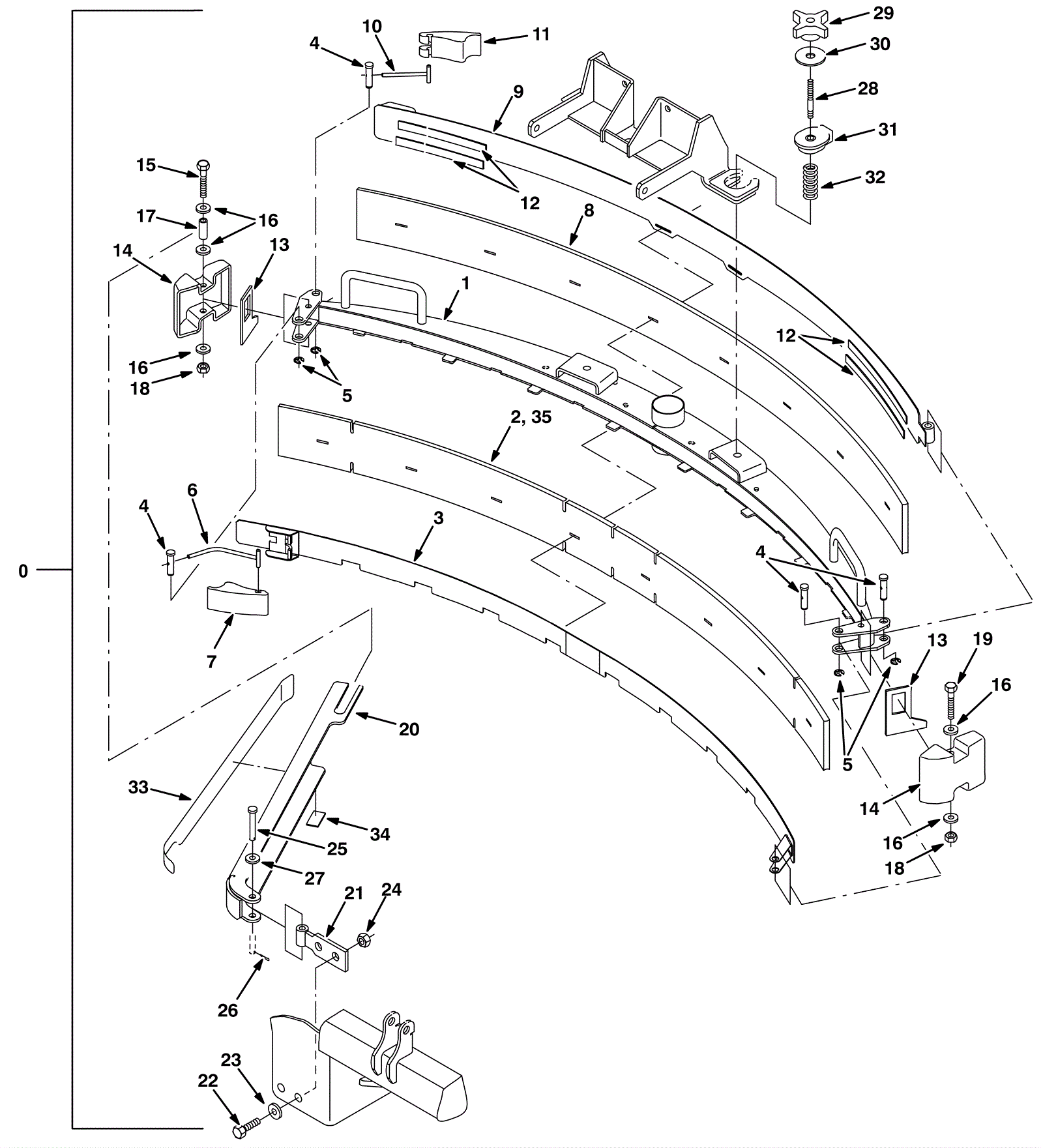

8300 Max Pro 1200 Rear Squeegee Assembly - Vacuumized Side Squeegee

#PartDescriptionPriceReqNotesAvailability
0a 175-0809 SQUEEGEE ASSY KIT, REAR, CI [MP1000] (Tennant Industrial) $2,330.80 1 (before SN 007000) (includes 1-20a, 21a, and 22-34) usually ships 10-16 days
0b 275-9344 Rear squeegee kit assembly (Tennant Industrial) $2,231.45 1 (after SN 006999) (includes 1-19, 20b, 21b, and 22-34) usually ships 1-5 days
1 275-7973 Iron squeegee frame weldment (gray) (Tennant Industrial) $1,099.89 1 usually ships 1-5 days
2 175-0811 BLADE, SQGE, FRONT, 49.00L linatex (Tennant Industrial) $156.53 1 usually ships 10-16 days
3 175-0812 CLAMP WLDT, FRONT (Tennant Industrial) $125.69 1 usually ships 10-16 days
4 175-0813 PIN, GRVD, 0.43D 01.8L [303SS] (Tennant Industrial) $27.34 4 usually ships 10-16 days
5 175-0814 Retaining ring (Tennant Industrial) $4.00 4 usually ships 10-16 days
6 175-0815 PIN WLDT, FRONT (Tennant Industrial) $65.18 1 usually ships 10-16 days
7 375-4391 Front cam (yellow) (Tennant Industrial) $21.67 1 usually ships 10-16 days
8 175-0816 BLADE, SQGE, REAR, 51.38L linatex (Tennant Industrial) $185.20 1 usually ships 10-16 days
9 175-0817 CLAMP WLDT, REAR (Tennant Industrial) $125.69 1 usually ships 10-16 days
10 175-0818 BAR WLDT, RETAINER, SQGE, REAR (Tennant Industrial) $84.52 1 usually ships 10-16 days
11 175-0819 CAM, REAR (Tennant Industrial) $12.50 1 usually ships 10-16 days
12 175-0820 STRIP, NON SLIP, 0.50W 06.0L (Tennant Industrial) $5.67 4 usually ships 10-16 days
13 175-0821 GASKET, SQGE (Tennant Industrial) $19.17 2 usually ships 10-16 days
14 175-3484 BUMPER, SQGE (Tennant Industrial) $41.84 2 usually ships 10-16 days
15 175-0822 SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) $8.34 1 usually ships 10-16 days
16 999-9097 Washer M8 flat stainless steel $0.99 5 ships same day
17 175-2207 Sleeve $5.94 1 ships same day
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
19 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel $3.83 1 ships same day
20a 175-0823 CHANNEL WLDT, GUARD, RH (Tennant Industrial) $236.05 1 (before SN 007000) usually ships 1-5 days
20b 275-9345 Channel weldment (iron gray) (Tennant Industrial) $265.89 1 (after SN 006999) usually ships 1-5 days
21a 175-0824 PLATE WLDT, PIVOT, GUARD (Tennant Industrial) $63.51 1 (before SN 007000) usually ships 1-5 days
21b 275-9346 Guard pivot plate weldment (iron gray) (Tennant Industrial) $57.84 1 (after SN 006999) usually ships 1-5 days
22 999-6696 Bolt M12-1.75 x 30mm stainless steel hex cap screw $5.19 2 ships same day
23 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
24 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
25 275-7974 Clevis pin 1/4 x 2 (Tennant Industrial) $26.34 1 usually ships 10-16 days
26 175-2361 Cotter pin $3.30 1 ships same day
27 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
28 175-0828 Stud 5/16-18 (Tennant Industrial) $31.84 2 usually ships 10-16 days
29 175-2208 Plastic star knob $5.28 2 ships same day
30 175-3470 Washer .53b 1.88d .12 steel plated $4.88 2 usually ships 10-16 days
31 175-0829 RING, MTG, SQGE, .50L (Tennant Industrial) $34.51 2 usually ships 10-16 days
32 175-0830 SPRING, CMPR, 0.90OD .04WIR 02.0L (Tennant Industrial) $5.67 2 ships same day
33 175-0831 STRIP, BMPR, PYE, .06 1.75W 22.0L (Tennant Industrial) $99.02 1 usually ships 1-5 days
34 175-0832 STRIP, BMPR, PYE, .06 0.75W 01.5L (Tennant Industrial) $30.51 1 usually ships 1-5 days
35 175-0833 BLADE, SQGE, FRONT, TILE, 49.00L linatex (Tennant Industria $184.37 1 usually ships 10-16 days
