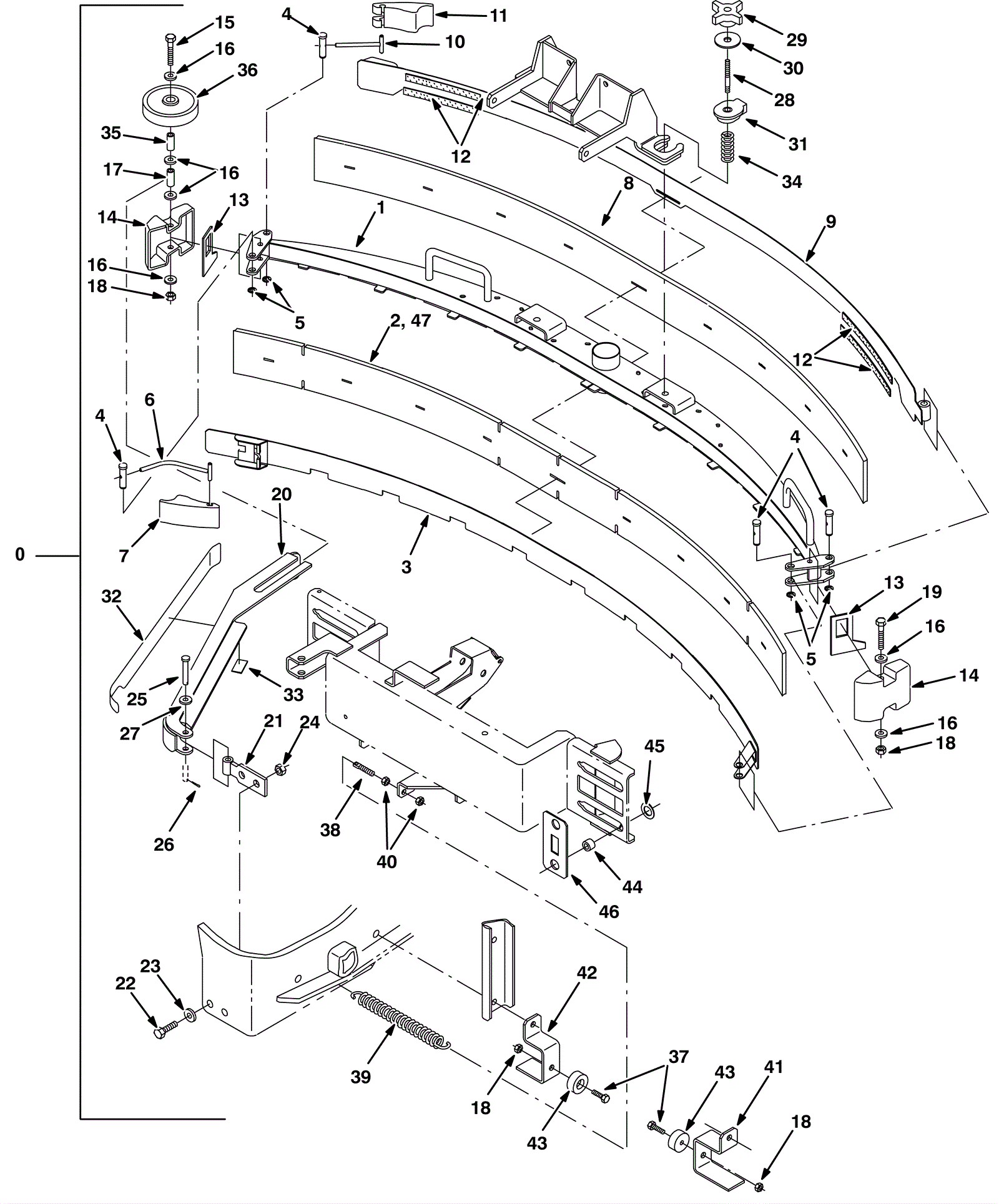

8300 Max Pro 1200 Rear Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0a 275-8721 SQUEEGEE ASSY KIT, REAR, CI [MP1200] (Tennant Industrial) $2,785.06 1 (before SN 007000) (includes 1-20a, 21a, 22-41a, 42a, and 43-46) usually ships 10-13 days
0b 275-2644 Squeegee assy 48 inch (1200mm) rear linatex (Tennant Ind) $2,707.21 1 (after SN 006999) (includes 1-19, 20b, 21b, 22-40, 41b, 42b, and 43-46) usually ships 1-5 days
1 275-2643 Squeegee frame weldment (Tennant Industrial) $1,301.43 1 usually ships 1-5 days
2 275-8723 BLADE, SQGE, FRONT, 57.00L linatex [48 inch]  (Tennant Indu $164.53 1 usually ships 1-5 days
3 275-8724 CLAMP WLDT, FRONT (Tennant Industrial) $144.53 1 usually ships 10-13 days
4 175-0813 PIN, GRVD, 0.43D 01.8L [303SS] (Tennant Industrial) $27.34 4 usually ships 10-13 days
5 175-0814 Retaining ring (Tennant Industrial) $4.00 4 usually ships 10-13 days
6 175-0815 PIN WLDT, FRONT (Tennant Industrial) $65.18 1 usually ships 10-13 days
7 375-4391 Front cam (yellow) (Tennant Industrial) $21.67 1 usually ships 10-13 days
8 275-8725 BLADE, SQGE, REAR, 58.62L linatex [48 inch]  (Tennant Indus $230.55 1 usually ships 10-13 days
9 275-8732 CLAMP WLDT, REAR, 48.0L (Tennant Industrial) $140.36 1 usually ships 10-13 days
10 175-0818 BAR WLDT, RETAINER, SQGE, REAR (Tennant Industrial) $84.52 1 usually ships 10-13 days
11 175-0819 CAM, REAR (Tennant Industrial) $12.50 1 usually ships 10-13 days
12 175-0820 STRIP, NON SLIP, 0.50W 06.0L (Tennant Industrial) $5.67 4 usually ships 10-13 days
13 175-0821 GASKET, SQGE (Tennant Industrial) $19.17 2 usually ships 10-13 days
14 175-3484 BUMPER, SQGE (Tennant Industrial) $41.84 2 usually ships 10-13 days
15 275-8726 SCREW, HEX, M8 X 1.25 X 130, SS (Tennant Industrial) $12.17 1 usually ships 1-5 days
16 999-9097 Washer M8 flat stainless steel $0.99 5 ships same day
17 175-2207 Sleeve $5.94 1 ships same day
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
19 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel $3.83 1 ships same day
20a 275-8727 CHANNEL WLDT (Tennant Industrial) $368.57 1 (before SN 007000) usually ships 1-5 days
20b 275-2645 Iron channel weldment (gray) (Tennant Industrial) $307.06 1 (after SN 006999) usually ships 1-5 days
21a 175-0824 PLATE WLDT, PIVOT, GUARD (Tennant Industrial) $63.51 1 (before SN 007000) usually ships 1-5 days
21b 275-9346 Guard pivot plate weldment (iron gray) (Tennant Industrial) $57.84 1 (after SN 006999) usually ships 1-5 days
22 999-6696 Bolt M12-1.75 x 30mm stainless steel hex cap screw $5.19 2 ships same day
23 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
24 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
25 275-7974 Clevis pin 1/4 x 2 (Tennant Industrial) $26.34 1 usually ships 10-13 days
26 175-2361 Cotter pin $3.30 1 ships same day
27 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
28 175-0828 Stud 5/16-18 (Tennant Industrial) $31.84 2 usually ships 10-13 days
29 175-2208 Plastic star knob $5.28 2 ships same day
30 175-3470 Washer .53b 1.88d .12 steel plated $5.28 2 usually ships 10-13 days
31 175-0829 RING, MTG, SQGE, .50L (Tennant Industrial) $34.51 2 usually ships 10-13 days
32 275-8728 STRIP, BMPR, PYE, .06 1.75W 26.0L (Tennant Industrial) $93.35 1 usually ships 1-5 days
33 175-0832 STRIP, BMPR, PYE, .06 0.75W 01.5L (Tennant Industrial) $30.51 1 usually ships 1-5 days
34 175-0830 SPRING, CMPR, 0.90OD .04WIR 02.0L (Tennant Industrial) $5.67 2 usually ships 10-13 days
35 275-0855 Tube $9.79 1 usually ships 10-13 days
36a 275-2208 WHEEL, 04.0D 0.89W 0.64B $38.50 1 usually ships 10-13 days
36b 991-3067 Wheel $31.97 1 (NON-OEM) usually ships 10-15 days
37 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
38 175-0804 BOLT, EYE, M10 X 1.50 X 064MM, 07.10 EYE (Tennant Industria $19.17 1 usually ships 10-13 days
39 175-0803 SPRING, EXTN, 1.69OD 0.20WIR 09.5L (Tennant Industrial) $42.51 1 usually ships 10-13 days
40 999-1625 Nut M10-1.5 hex jam stainless steel $1.54 2 ships same day
41a 275-8730 BRACKET, STOP, BAR, LH (Tennant Industrial) $44.84 1 (before SN 007000) usually ships 1-5 days
41b 275-2646 Left hand stop bar bracket (gray) (Tennant Industrial) $41.68 1 (after SN 006999) usually ships 1-5 days
42a 275-8731 BRACKET, STOP, BAR, RH (Tennant Industrial) $44.68 1 (before SN 007000) usually ships 1-5 days
42b 275-2647 Right hand stop bar bracket (gray) (Tennant Industrial) $41.51 1 (after SN 006999) usually ships 1-5 days
43 175-0745 BUMPER, RBR, 1.5D 0.63 0.31H (Tennant Industrial) $12.17 2 usually ships 1-5 days
44 N/A Not available Call for price 4 usually ships 3-26 days
45 175-0806 WASHER, THRUST, 0.75B 1.25D 0.06W (Tennant Industrial) $6.67 4 usually ships 10-13 days
46 175-0808 PLATE, SLIDE (Tennant Industrial) $58.18 2 usually ships 10-13 days
47 275-8729 BLADE, SQGE, FRONT, TILE, 57.00L linatex (Tennant Industria $200.87 1 usually ships 1-5 days
