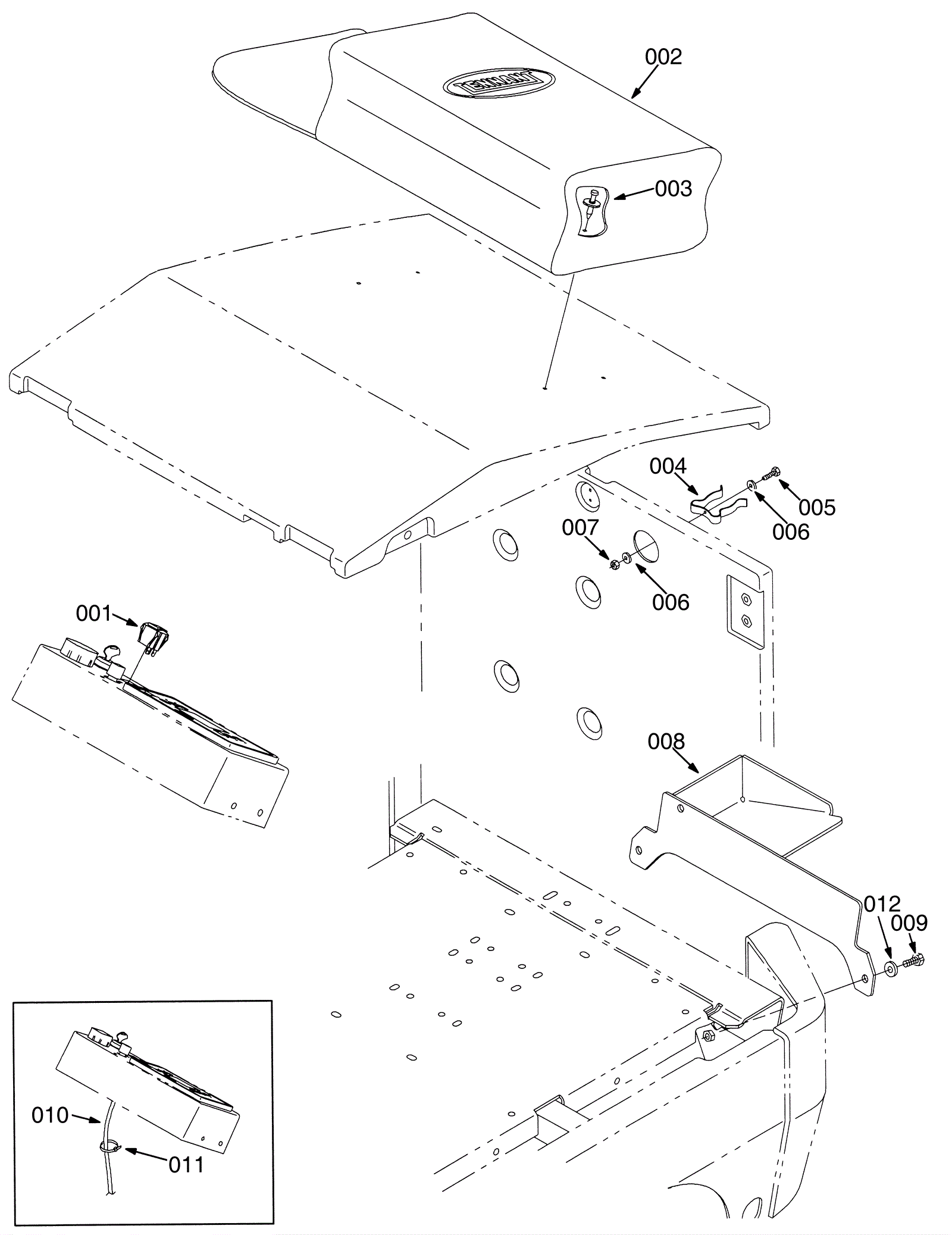

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-3319
|
Switch |
1 |
|
|
002 |
175-9416
|
Power bag |
1 |
|
|
003 |
175-3378
|
Rivet 1/4 x 57/64 plastic |
2 |
|
|
004 |
275-3939
|
CLIP, GRIP, FINGER, 1.00-1.88D,WHITE VYL (Tennant Industria |
1 |
|
|
005 |
175-3291
|
SCREW, HEX, M4 X 0.70 X 20, 8.8 (Tennant Industrial) |
1 |
|
|
006 |
999-0377
|
Washer 6 SAE flat plain finish |
2 |
|
|
007 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
1 |
|
|
008a |
275-8716
|
TRAY WLDT, POWER WAND (Tennant Industrial) |
1 |
(before SN 007000) |
|
008b |
275-2614
|
Power wand tray weldment (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
009 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
3 |
|
|
010a |
275-8717
|
HARNESS, WAND, POWER [7300/8300] (Tennant Industrial) |
1 |
|
|
010b |
275-8718
|
HARNESS, WAND, POWER [7300/8300] (Tennant Industrial) |
1 |
(before SN XXXXXX) |
|
010c |
275-8717
|
HARNESS, WAND, POWER [7300/8300] (Tennant Industrial) |
1 |
(after SN XXXXXX but before SN 003546) |
|
011 |
175-2162
|
Nylon wire tie |
4 |
(before SN 003546) |
|
012 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
