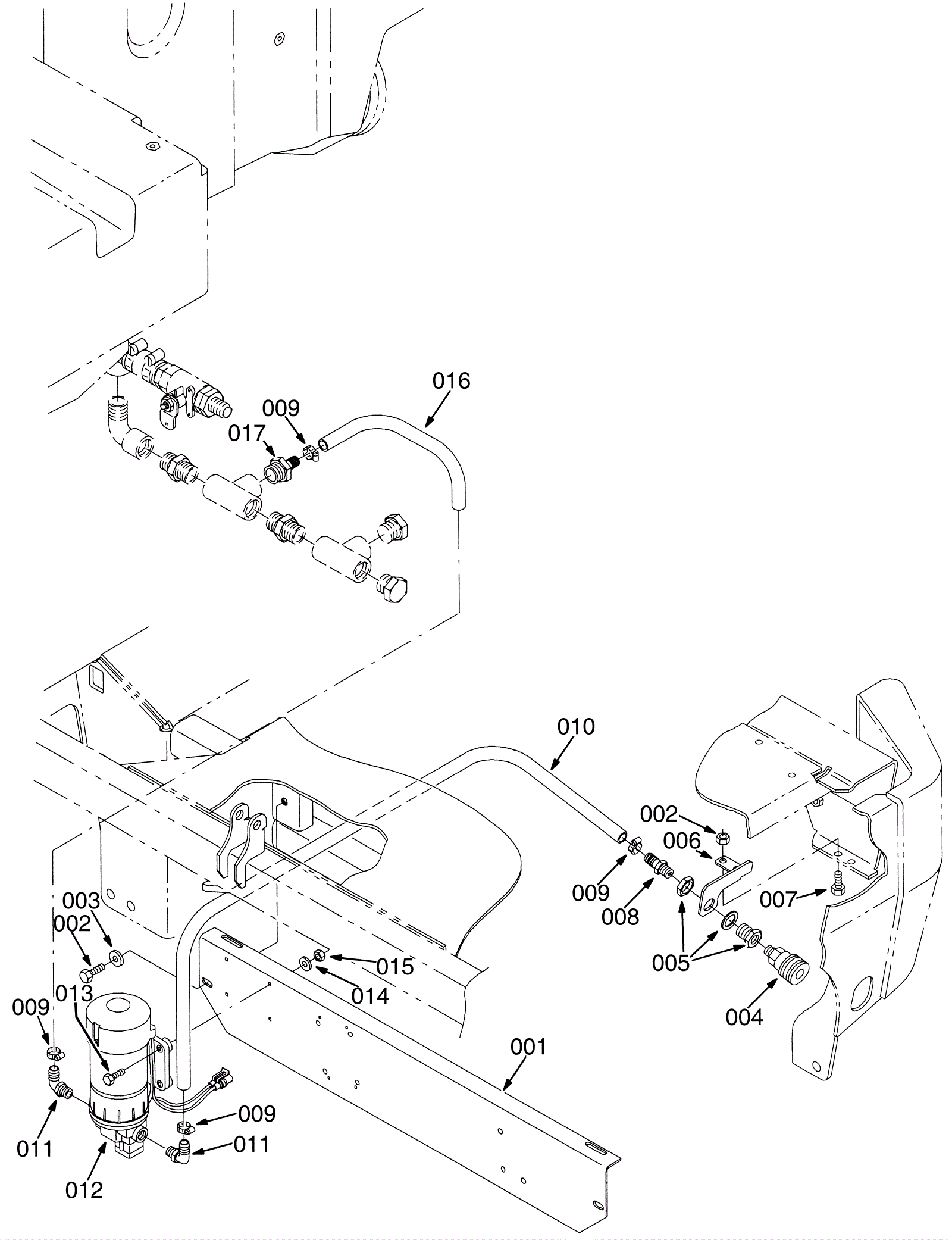

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-2585
|
Iron mounting angle (gray) (Tennant Industrial) |
1 |
|
|
002 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
003 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
004 |
175-9723
|
Brass female quick connect fitting |
1 |
|
|
005 |
175-4814
|
Brass strainer fitting |
1 |
|
|
006 |
275-2612
|
Power wand bracket (gray) (Tennant Industrial) |
1 |
|
|
007 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
008 |
275-4310
|
FITTING, PLSTC, STR, BM08/PM04 (Tennant Industrial) |
1 |
|
|
009 |
175-6081
|
Hose clamp |
4 |
|
|
010 |
275-4311
|
HOSE, PVC, WIR, 0.50ID 0.74OD 037.0L,CLR (Tennant Industria |
1 |
|
|
011 |
275-4308
|
FITTING, PLSTC, E90, BM08/PM04 (Tennant Industrial) |
2 |
|
|
012 |
275-8715
|
PUMP ASSY, WAND, POWER (Tennant Industrial) |
1 |
|
|
013 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
4 |
|
|
014 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
015 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
016 |
275-2613
|
PVC hose (Tennant Industrial) |
1 |
|
|
017 |
175-2523
|
Plastic fitting |
1 |
|
|
