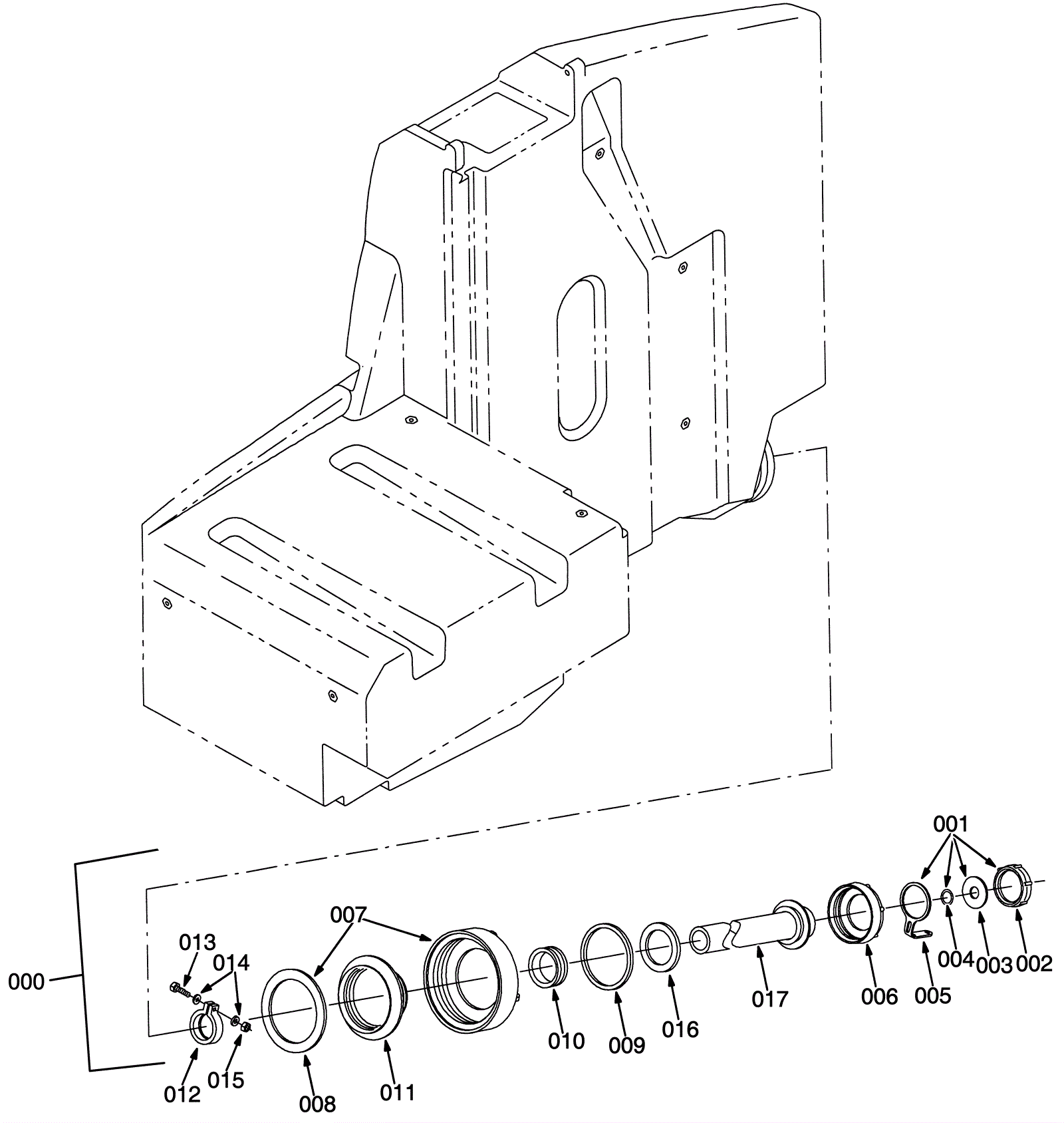

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
275-8692
|
HOSE KIT, DRAIN, SOLTN SIDE (Tennant Industrial) |
1 |
(includes 001-017) |
|
001 |
175-3391
|
Drain cap kit |
1 |
(includes 002-005) |
|
002 |
175-3394
|
Drain tank cap 2.25 thread pye |
1 |
|
|
003 |
175-3393
|
Cap gasket |
1 |
|
|
004 |
175-3395
|
3/4 ID retaining extension ring stainless steel |
1 |
|
|
005 |
175-3392
|
Strap |
1 |
|
|
006 |
175-3390
|
Drain tank cap 3.85 thread pye |
1 |
|
|
007 |
175-3384
|
Tank cap |
1 |
(includes 008) |
|
008 |
275-4663
|
Gasket |
1 |
|
|
009 |
175-3388
|
Drain cap gasket |
1 |
|
|
010 |
175-3387
|
Seal |
1 |
|
|
011 |
175-3386
|
Insert cover |
1 |
|
|
012 |
175-3381
|
Plastic hose clamp 1.6 ID x .62 |
1 |
|
|
013 |
175-3382
|
Bolt M5-.8 x 25mm hex head stainless steel |
1 |
|
|
014 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
015 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
016 |
175-3389
|
Lid gasket |
1 |
|
|
017 |
175-0708
|
HOSE ASSY, DRAIN (Tennant Industrial) |
1 |
|
|
