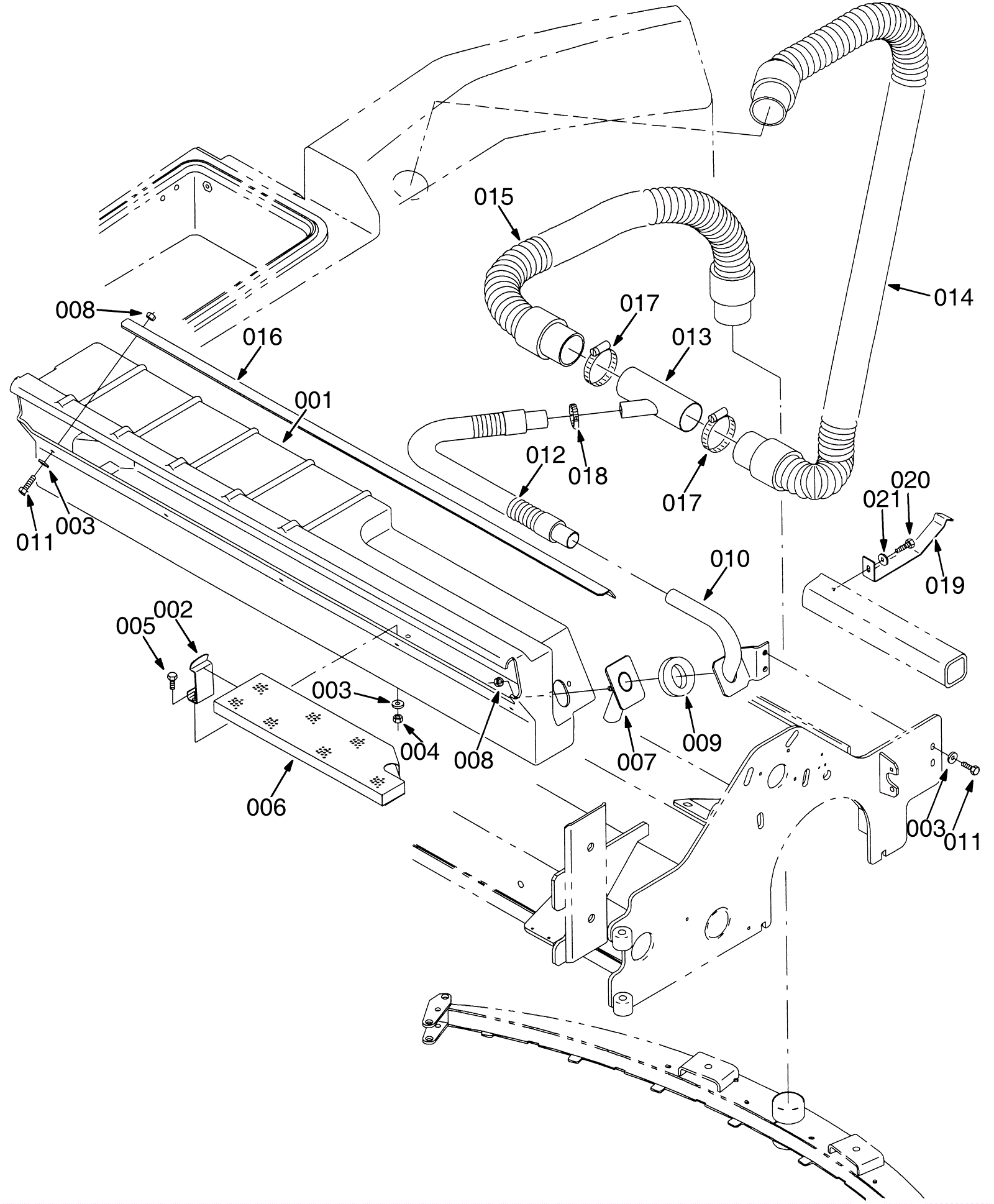

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-8673
|
TRAY, DEBRIS, 48.0L (Tennant Industrial) |
1 |
|
|
002 |
275-8665
|
CLIP, SPRING, PROP ARM (Tennant Industrial) |
1 |
|
|
003 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
14 |
|
|
004 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
005 |
175-8867
|
SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) |
2 |
|
|
006 |
275-8666
|
STRAINER WLDT, TROUGH, DEBRIS,4.3W 15.0L (Tennant Industria |
1 |
|
|
007 |
275-2579
|
Vacuum tube weldment (gray) (Tennant Industrial) |
1 |
|
|
008 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
7 |
|
|
009 |
275-8668
|
GASKET, TUBE, 2.50OD .50, FOAM, ADH (Tennant Industrial) |
1 |
|
|
010 |
275-2580
|
Upper tube weldment (gray) (Tennant) |
1 |
|
|
011 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
7 |
|
|
012a |
775-0475
|
Drain hose assembly (solution) |
1 |
(OEM) (before SN 003546) |
|
012b |
275-8619
|
HOSE ASSY, W/2CUFF, 1.0D 041L 1.0/1.0 (Tennant Industrial) |
1 |
(after SN 003545) |
|
012c |
991-5133
|
Drain hose assembly (solution) |
1 |
(NON-OEM) |
|
013 |
275-8612
|
TUBE WLDT, TEE, 2.0D 5.8L 1.0D (Tennant Industrial) |
1 |
|
|
014a |
275-8618
|
HOSE, VACUUM, 058.5L (Tennant Industrial) |
1 |
(before SN 003546) |
|
014b |
275-8613
|
HOSE ASSY, W/2CUFF, 2.0D 075L 2.0/2.0 (Tennant Industrial) |
1 |
(after SN 003545) |
|
015a |
275-8617
|
HOSE, VACUUM, 2.00ID X 035.0L (Tennant Industrial) |
1 |
(before SN 003546) |
|
015b |
275-8614
|
HOSE ASSY, W/2CUFF, 2.0D 026L 2.0/2.0 (Tennant Industrial) |
1 |
(after SN 003545) |
|
016 |
275-2584
|
Iron angle (gray) (Tennant Industrial) |
1 |
|
|
017 |
997-2006
|
Hose clamp |
2 |
|
|
018 |
175-2254
|
Hose clamp |
1 |
|
|
019 |
275-8616
|
BRACKET, TUBE, TEE (Tennant Industrial) |
1 |
|
|
020 |
175-3166
|
Bolt M6-1 x 16mm hex head |
1 |
|
|
021 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
