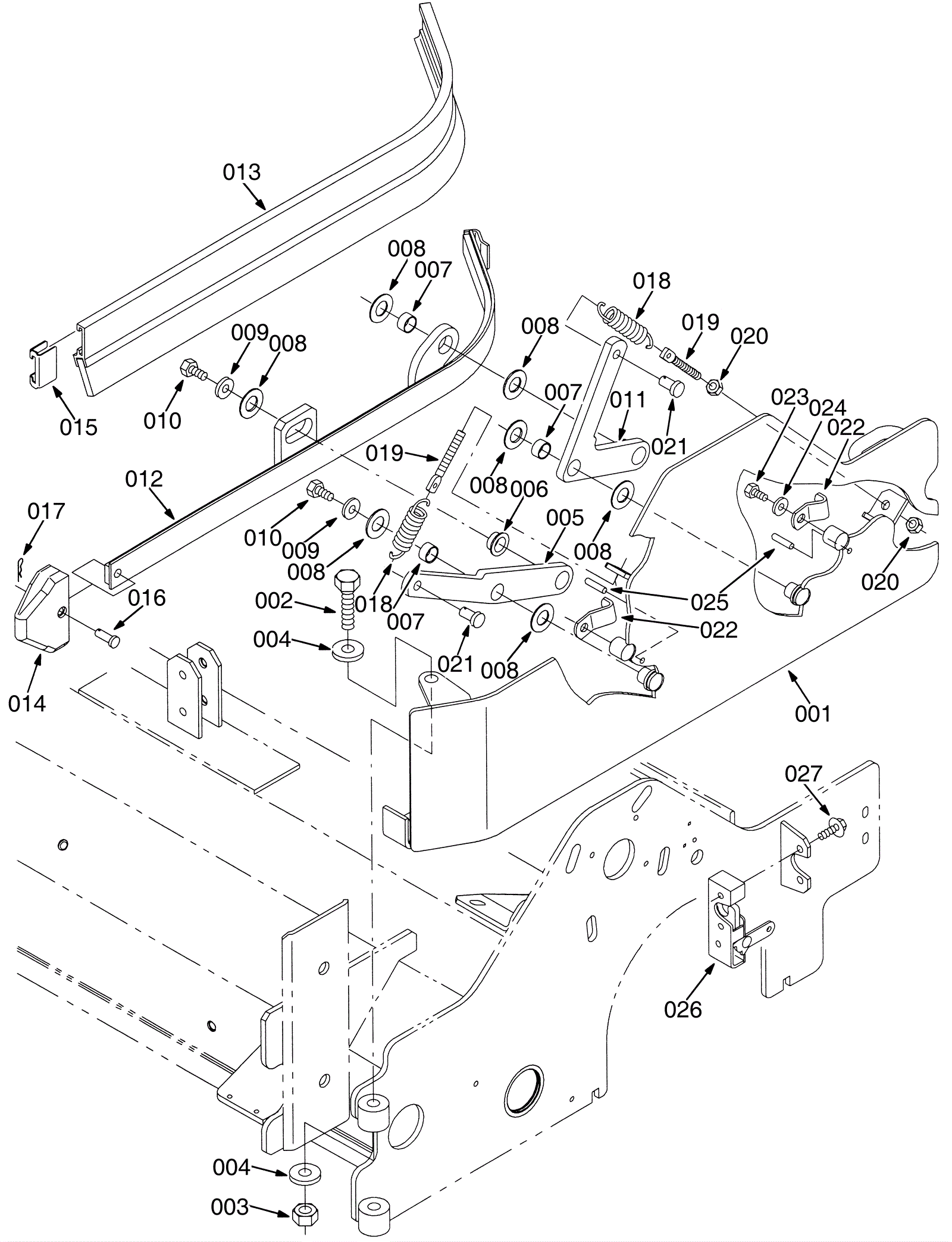

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001a |
275-8658
|
GUARD WLDT, LH (Tennant Industrial) |
$804.16
|
1 |
(before SN 007000) |
usually ships 1-5 days |
001b |
275-2575
|
Left hand guard weldment (gray) (Tennant Industrial) |
$611.12
|
1 |
(after SN 006999) |
usually ships 1-5 days |
002 |
275-2936
|
SCREW, HEX, M12 X 1.75 X 50, SS (Tennant Industrial) |
$10.00
|
2 |
|
usually ships 1-5 days |
003 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
$3.85
|
2 |
|
ships same day |
004 |
175-5407
|
Washer M12 flat stainless steel |
$3.96
|
4 |
|
usually ships 10-16 days |
005a |
275-8659
|
ARM WLDT, FRONT, LH (Tennant Industrial) |
$177.37
|
1 |
(before SN 007000) |
usually ships 1-5 days |
005b |
275-2577
|
Left hand rear arm weldment (gray) (Tennant (Industrial) |
$109.36
|
1 |
(after SN 006999) |
usually ships 1-5 days |
006 |
175-3460
|
Flanged bushing |
$10.78
|
1 |
|
usually ships 10-16 days |
007 |
175-3349
|
Sleeved bushing |
$12.65
|
3 |
|
ships same day |
008 |
175-3347
|
Washer .61 thrust |
$5.50
|
7 |
|
ships same day |
009 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
010 |
999-1415
|
Screw M8-1.25 x 12mm hex head stainless steel |
$1.52
|
4 |
|
ships same day |
011a |
275-8660
|
ARM WLDT, REAR, LH (Tennant Industrial) |
$154.20
|
1 |
(before SN 007000) |
usually ships 1-5 days |
011b |
275-2577
|
Left hand rear arm weldment (gray) (Tennant (Industrial) |
$109.36
|
1 |
(after SN 006999) |
usually ships 1-5 days |
012 |
175-0778
|
FRAME WLDT, SQGE, SIDE, LH (Tennant Industrial) |
$377.24
|
1 |
|
usually ships 10-16 days |
013 |
175-2969
|
BLADE ASSY, SQGE, 28.6L (Tennant Industrial) |
$98.52
|
1 |
|
usually ships 10-16 days |
014 |
175-0774
|
GUIDE, POINT, SQGE, SIDE (Tennant Industrial) |
$58.01
|
1 |
|
ships same day |
015 |
175-3357
|
Squeegee blade retainer |
$11.22
|
1 |
|
ships same day |
016 |
175-0775
|
Clevis pin (Tennant Industrial) |
$6.17
|
1 |
|
ships same day |
017 |
175-7107
|
Cotter hair pin |
$3.04
|
1 |
|
usually ships 10-16 days |
018 |
175-0770
|
Extension spring |
$5.50
|
2 |
|
usually ships 10-16 days |
019 |
175-0772
|
BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial |
$37.34
|
2 |
|
usually ships 1-5 days |
020 |
999-1424
|
Nut M8-1.25 hex stainless steel |
$1.65
|
4 |
|
ships same day |
021 |
275-0146
|
PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) |
$5.17
|
2 |
|
usually ships 10-16 days |
022 |
275-9322
|
Side pivot arm weldment (gray) (Tennant Industrial) |
$140.19
|
2 |
|
usually ships 1-5 days |
023 |
175-8867
|
SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) |
$5.17
|
2 |
|
usually ships 1-5 days |
024 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
025 |
175-0768
|
PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) |
$5.00
|
2 |
|
ships same day |
026 |
275-8661
|
LATCH (Tennant Industrial) |
$101.35
|
1 |
|
usually ships 1-5 days |
027 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
$3.85
|
4 |
|
ships same day |
