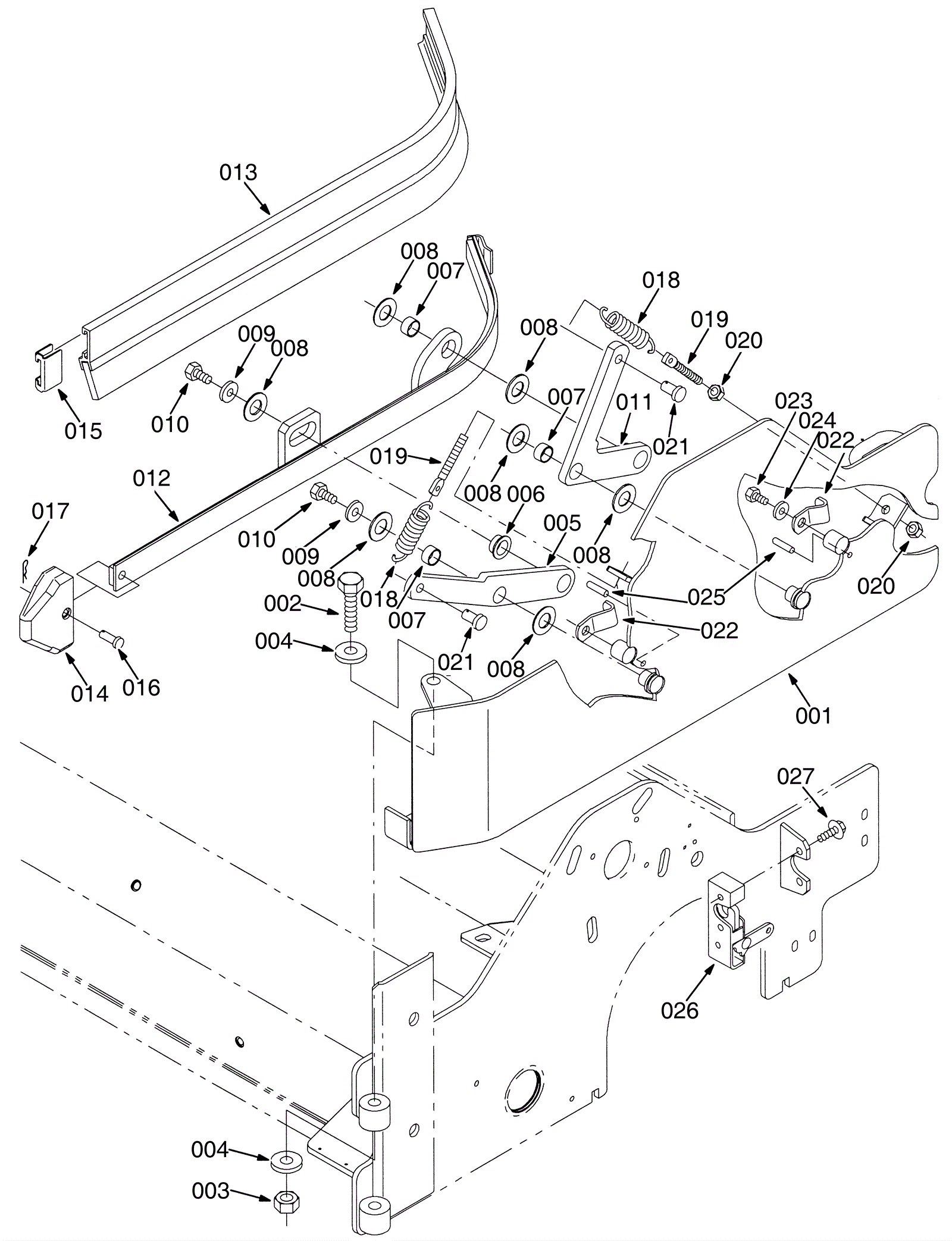

Max Pro 1000 Left Side Squeegee Assembly - Cylindrical

#PartDescription ReqNotesAvailability
001a 275-8658 GUARD WLDT, LH (Tennant Industrial) 1 (before SN 007000)
001b 275-2575 Left hand guard weldment (gray) (Tennant Industrial) 1 (after SN 006999)
002 275-2936 SCREW, HEX, M12 X 1.75 X 50, SS (Tennant Industrial) 2
003 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
005a 275-8659 ARM WLDT, FRONT, LH (Tennant Industrial) 1 (before SN 007000)
005b 275-2576 Left hand front arm weldment (gray) (Tennant Industrial) 1 (after SN 006999)
006 175-3460 Flanged bushing 1
007 175-3349 Sleeved bushing 3
008 175-3347 Washer .61 thrust 7
009 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
010 999-1415 Screw M8-1.25 x 12mm hex head stainless steel 4
011a 275-8660 ARM WLDT, REAR, LH (Tennant Industrial) 1 (before SN 007000)
011b 275-2577 Left hand rear arm weldment (gray) (Tennant (Industrial) 1 (after SN 006999)
012 175-0778 FRAME WLDT, SQGE, SIDE, LH (Tennant Industrial) 1
013 175-2969 BLADE ASSY, SQGE, 28.6L (Tennant Industrial) 1
014 175-0774 GUIDE, POINT, SQGE, SIDE (Tennant Industrial) 1
015 175-3357 Squeegee blade retainer 1
016 175-0775 Clevis pin (Tennant Industrial) 1
017 175-7107 Cotter hair pin 1
018 175-0770 Extension spring 2
019 175-0772 BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial 2
020 999-1424 Nut M8-1.25 hex stainless steel 4
021 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) 2
022 275-2574 Iron arm latch (gray) (Tennant Industrial) 2
023 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) 2
024 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
025 175-0768 PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) 2
026 275-8661 LATCH (Tennant Industrial) 1
027 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
