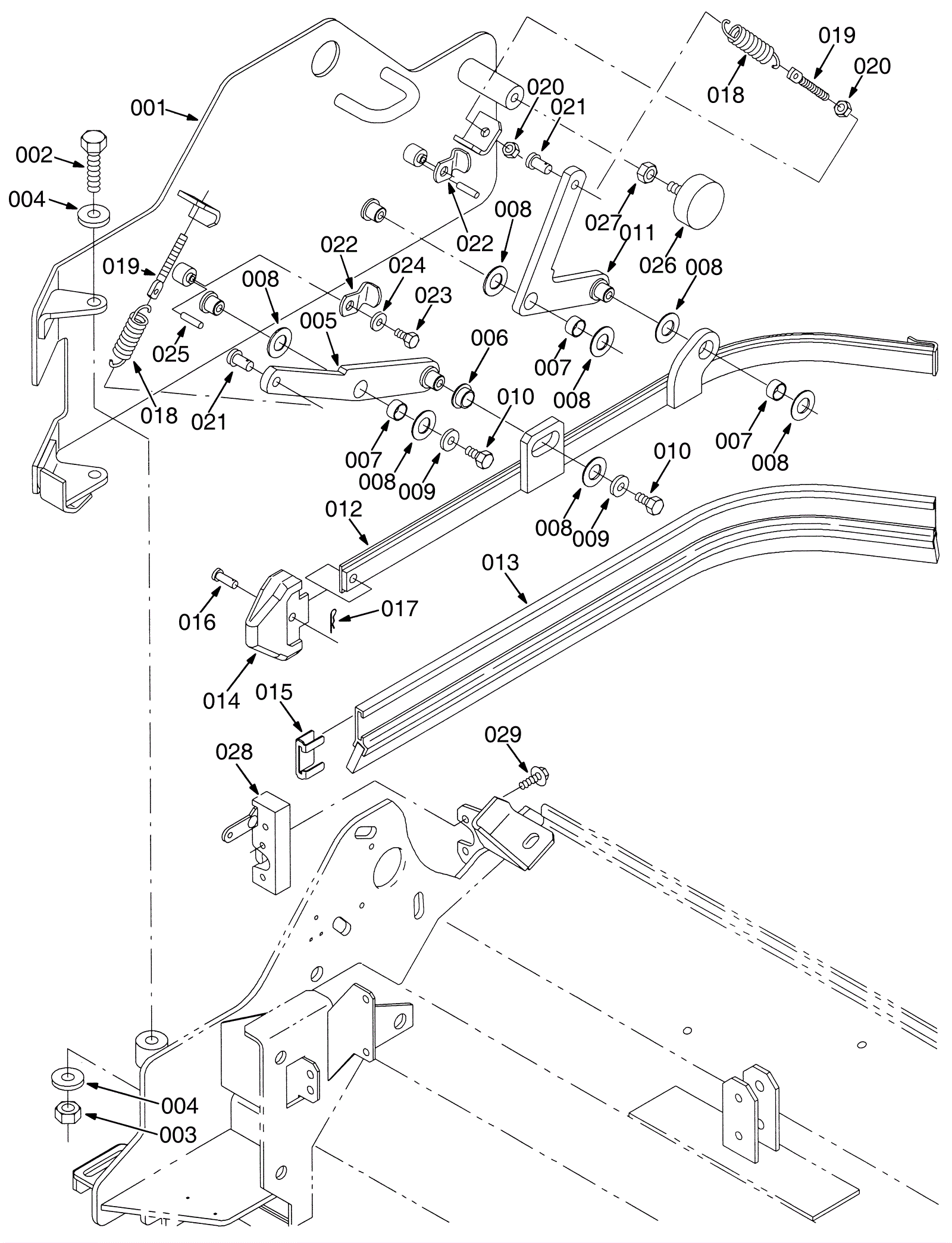

8300 Max Pro 1000 Right Side Squeegee Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
001a 275-8652 GUARD WLDT, RH (Tennant Industrial) $923.52 1 (before SN 007000) usually ships 1-5 days
001b 275-2571 Right hand guard weldment (gray) (Tennant Industrial) $728.98 1 (after SN 006999) usually ships 1-5 days
002 275-2936 SCREW, HEX, M12 X 1.75 X 50, SS (Tennant Industrial) $10.84 2 usually ships 1-5 days
003 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
004 175-5407 Washer M12 flat stainless steel $4.36 4 usually ships 10-16 days
005a 275-8653 ARM WLDT, FRONT, RH (Tennant Industrial) $173.20 1 (before SN 007000) usually ships 1-5 days
005b 275-2572 Right hand front arm weldment (gray) (Tennant Industrial) $102.19 1 (after SN 006999) usually ships 1-5 days
006 175-3460 Flanged bushing $11.55 1 usually ships 10-16 days
007 175-3349 Sleeved bushing $13.64 3 usually ships 10-16 days
008 175-3347 Washer .61 thrust $5.50 7 usually ships 10-16 days
009 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
010 999-1415 Screw M8-1.25 x 12mm hex head stainless steel $1.52 4 ships same day
011a 275-8655 ARM WLDT, REAR, RH (Tennant Industrial) $166.87 1 (before SN 007000) usually ships 1-5 days
011b 275-2573 Right hand rear arm weldment (gray) (Tennant Industrial) $118.02 1 (after SN 006999) usually ships 1-5 days
012 175-0773 FRAME WLDT, SQGE, SIDE, RH (Tennant Industrial) $387.74 1 usually ships 1-5 days
013 175-2969 BLADE ASSY, SQGE, 28.6L (Tennant Industrial) $105.52 1 usually ships 10-16 days
014 175-0774 GUIDE, POINT, SQGE, SIDE (Tennant Industrial) $62.18 1 ships same day
015 175-3357 Squeegee blade retainer $12.10 1 usually ships 10-16 days
016 175-0775 Clevis pin (Tennant Industrial) $6.67 1 ships same day
017 175-7107 Cotter hair pin $3.30 1 usually ships 10-16 days
018 175-0770 Extension spring $5.50 2 usually ships 10-16 days
019 175-0772 BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial $40.01 2 usually ships 1-5 days
020 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 ships same day
021 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) $5.67 2 usually ships 10-16 days
022 275-2574 Iron arm latch (gray) (Tennant Industrial) $16.00 2 usually ships 1-5 days
023 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) $5.67 2 usually ships 1-5 days
024 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
025 175-0768 PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) $5.50 2 ships same day
026 275-3247 BUMPER, RBR, 2.0D 0.75TH .38-16 (Tennant Industrial) $46.18 1 usually ships 10-16 days
027 275-3268 Nut 3/8 - 16 hex, ss $4.49 1 usually ships 1-5 days
028 275-8657 LATCH (Tennant Industrial) $115.52 1 usually ships 1-5 days
029 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 usually ships 12-18 days
