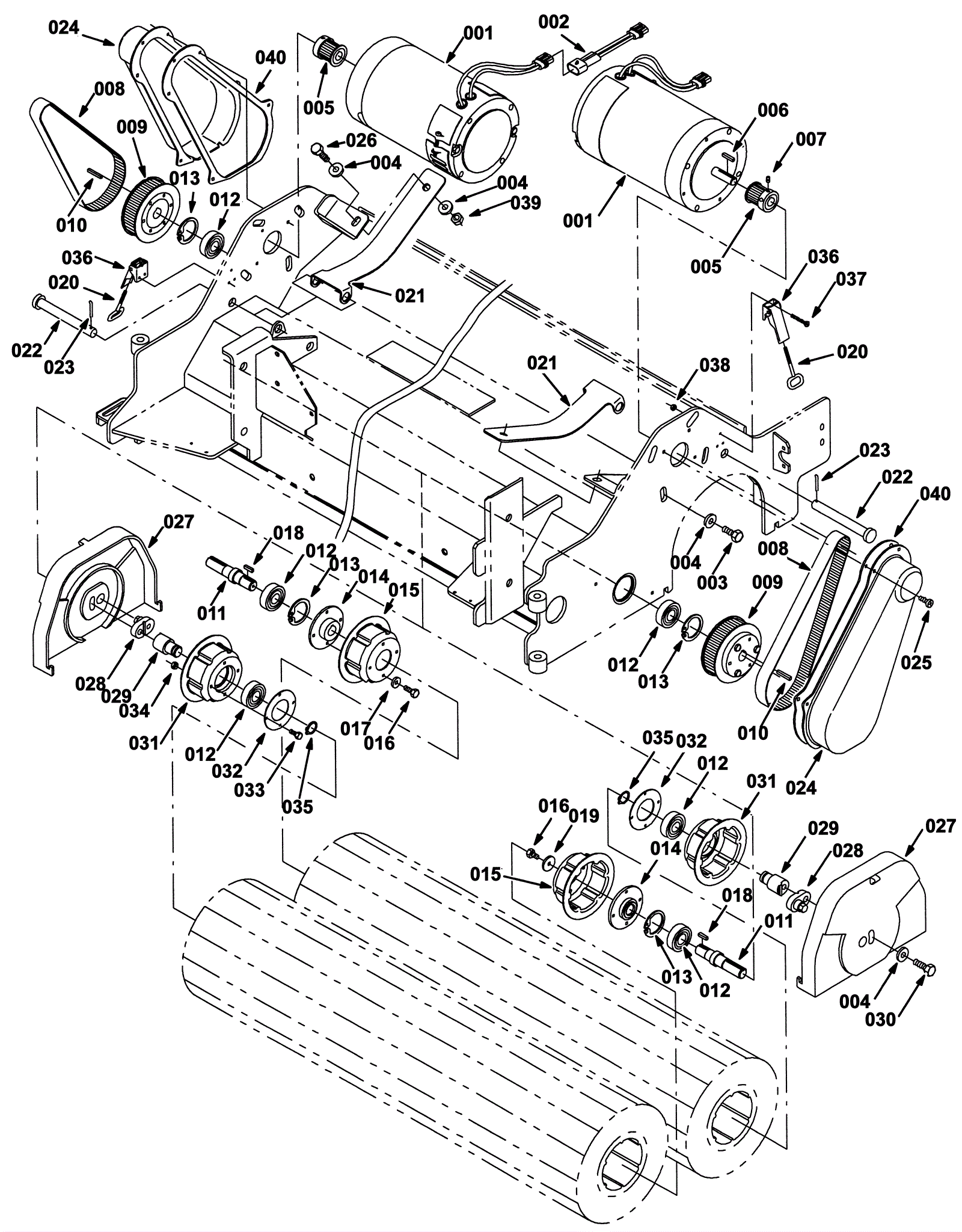

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
275-2566
|
Electric Motor - 1.5 HP 36 Volt (Tennant Industrial) |
2 |
(before SN 003888) |
|
001b |
275-2566
|
Electric Motor - 1.5 HP 36 Volt (Tennant Industrial) |
2 |
(after SN 003887) (includes 1c) |
|
001c |
175-1113
|
Carbon brush (sold individually) |
2 |
(after SN 002093) |
|
002 |
175-5395
|
Jumper reverse wire assembly |
1 |
|
|
003 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
8 |
|
|
004 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
14 |
|
|
005 |
275-8628
|
Timing sprocket 23 tooth |
2 |
|
|
006 |
175-3200
|
Square keyway |
2 |
|
|
007 |
275-0724
|
Screw M1/4 - 20 x 5/16 socket set |
4 |
|
|
008 |
275-8629
|
Belt, synchronous (Tennant Industrial) |
2 |
|
|
009 |
275-8630
|
SPROCKET, TIMING, 4.261PD, 68GRV, PL (Tennant Industrial) |
2 |
|
|
010 |
275-0085
|
Square key .19 x .19 1.25l |
2 |
|
|
011 |
275-8631
|
SHAFT, DRIVE, BRUSH (Tennant Industrial) |
2 |
|
|
012 |
175-9072
|
Ball bearing |
6 |
|
|
013 |
275-8632
|
RING, RETAINING, INT, 1.85D, BASIC (Tennant Industrial) |
4 |
|
|
014 |
275-7993
|
Drive brush hub weldment (gray) (Tennant Industrial) |
2 |
|
|
015 |
275-7994
|
Drive brush plug (gray) (Tennant Industrial) |
2 |
|
|
016 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
10 |
|
|
017 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
018 |
175-8818
|
Square keyway |
2 |
|
|
019 |
275-1464
|
WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) |
2 |
|
|
020 |
275-8633
|
HOOK WLDT, LATCH (Tennant Industrial) |
2 |
|
|
021 |
275-2567
|
Motor spring (gray) (Tennant Industrial) |
2 |
|
|
022 |
275-8635
|
PIN, CLEVIS, 0.62D X 5.25L (Tennant Industrial) |
2 |
|
|
023 |
175-2106
|
Cotter hair pin |
2 |
|
|
024 |
275-8636
|
COVER, DRIVE (Tennant Industrial) |
2 |
|
|
025 |
999-0807
|
Screw M6-1 x 10mm flat head phillips |
10 |
|
|
026 |
999-0774
|
Bolt M10-1.5 x 30mm hex head stainless steel full thread |
2 |
|
|
027 |
175-2977
|
COVER, IDLER (Tennant Industrial) |
2 |
|
|
028 |
275-8637
|
CAM, FRONT (Tennant Industrial) |
2 |
|
|
029 |
275-8638
|
CAM, REAR (Tennant Industrial) |
2 |
|
|
030 |
999-0774
|
Bolt M10-1.5 x 30mm hex head stainless steel full thread |
2 |
|
|
031 |
275-6556
|
Brush drive plug (Tennant Industrial) |
2 |
|
|
032 |
275-6557
|
Bearing retainer (Tennant Industrial) |
2 |
|
|
033 |
999-1220
|
Screw M5-.8 x 12mm hex head stainless steel |
8 |
|
|
034 |
175-2894
|
Nut M5-.8 hex nylon locking |
8 |
|
|
035 |
275-2003
|
Retaining ring (Tennant Industrial) |
2 |
|
|
036 |
275-8639
|
LATCH (Tennant Industrial) |
2 |
|
|
037 |
175-2079
|
Screw M4-.07 x 35mm pan head stainless steel |
6 |
|
|
038 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
6 |
|
|
039 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
040 |
275-8640
|
GASKET, COVER, .09 (Tennant Industrial) |
2 |
|
|
