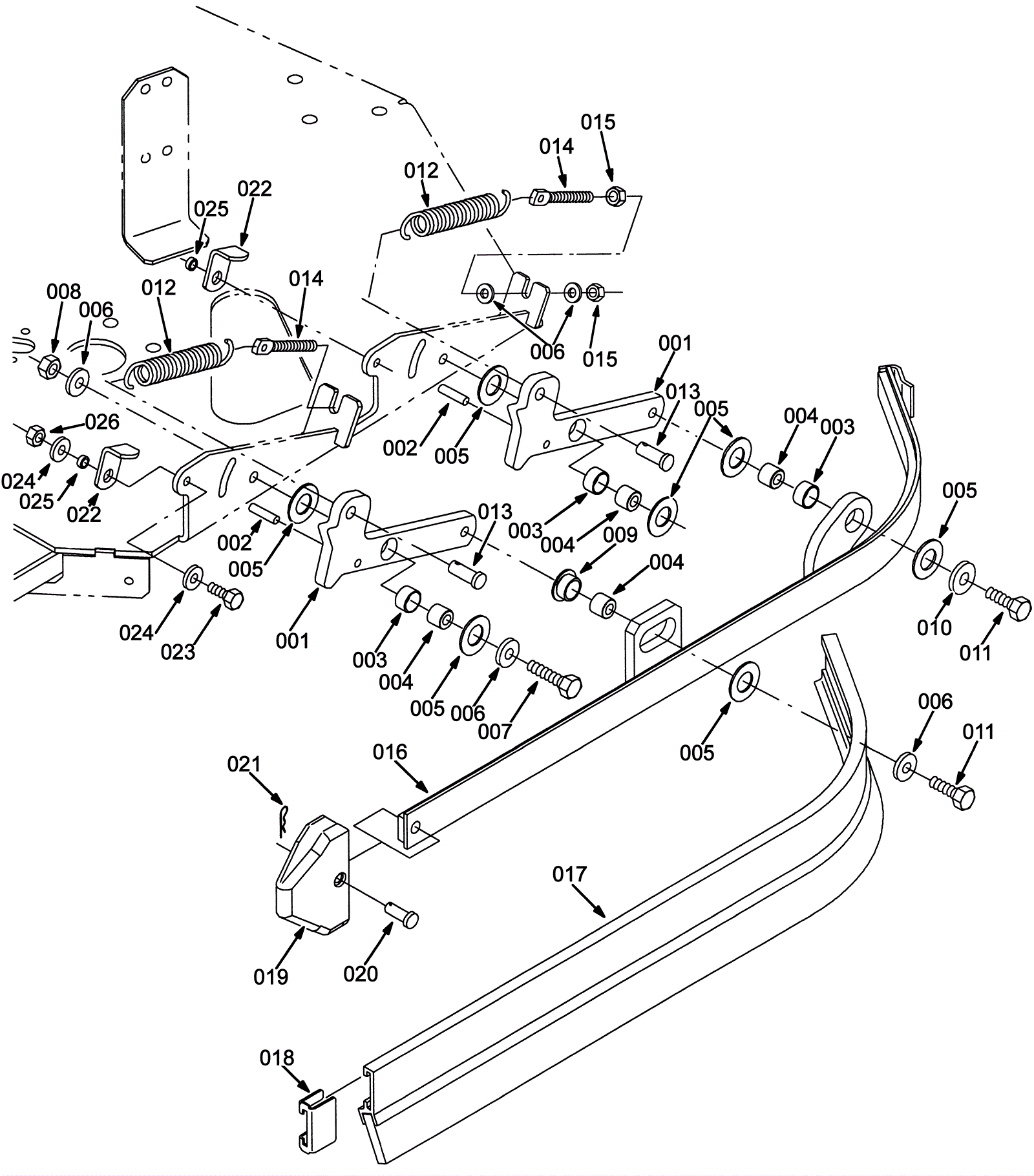

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-0771
|
Squeegee side arm frame weldment (gray) (Tennant Industrial |
2 |
|
|
002 |
175-0768
|
PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) |
2 |
|
|
003 |
175-3349
|
Sleeved bushing |
3 |
|
|
004 |
175-0769
|
SLEEVE, P/M, 0.34B 0.63D 0.5L [316SS] (Tennant Industrial) |
4 |
|
|
005 |
175-3347
|
Washer .61 thrust |
7 |
|
|
006 |
999-9097
|
Washer M8 flat stainless steel |
7 |
|
|
007 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
008 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
009 |
175-3460
|
Flanged bushing |
1 |
|
|
010 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
011 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
012 |
175-0770
|
Extension spring |
2 |
|
|
013 |
202-3501
|
Ring pin |
2 |
|
|
014 |
175-0772
|
BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial |
2 |
|
|
015 |
999-1424
|
Nut M8-1.25 hex stainless steel |
4 |
|
|
016 |
175-0778
|
FRAME WLDT, SQGE, SIDE, LH (Tennant Industrial) |
1 |
|
|
017 |
175-2969
|
BLADE ASSY, SQGE, 28.6L (Tennant Industrial) |
1 |
|
|
018 |
175-3357
|
Squeegee blade retainer |
1 |
|
|
019 |
175-0774
|
GUIDE, POINT, SQGE, SIDE (Tennant Industrial) |
1 |
|
|
020 |
175-0775
|
Clevis pin (Tennant Industrial) |
1 |
|
|
021 |
175-2113
|
Cotter pin |
1 |
|
|
022 |
175-0776
|
BRACKET, LATCH, DBL SCB, SQGE, SIDE (Tennant Industrial) |
2 |
|
|
023 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
024 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
025 |
175-0777
|
P/M sleeve |
2 |
|
|
026 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
