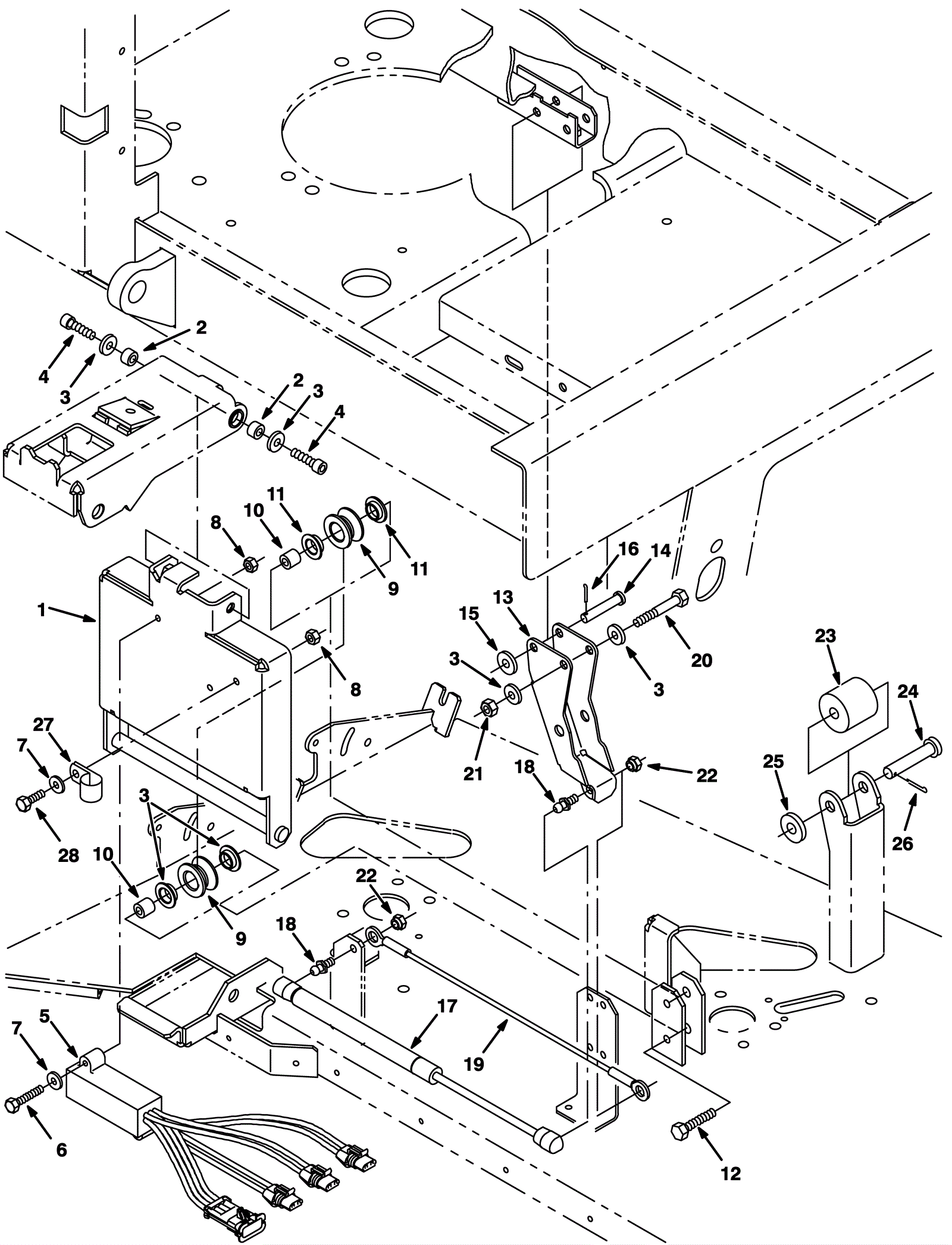

8300 Max Pro 1200 Edge Scrub Assembly - Disc

#PartDescriptionPriceReqNotesAvailability
1 275-9321 Disk head lift rail weldment (iron gray) (Tennant Industria $309.62 1 usually ships 1-5 days
2 175-0755 Sleeve $5.00 2 usually ships 5-16 days
3 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
4 175-0602 Screw M8-1.25 x 25mm socket $3.00 2 usually ships 5-16 days
5 275-4168 SHUNT, 3 STD MOTOR, YEL [SCB 515] (Tennant Industrial) $413.49 1 usually ships 1-5 days
6 175-0758 Bolt M6-1 x 40mm hex head stainless steel $3.00 2 usually ships 1-5 days
7 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
8 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 3 ships same day
9 175-0753 ROLLER, V-GROOVE, 1.5D 0.72B 0.8L [STL] (Tennant Industrial $60.29 2 usually ships 1-5 days
10 175-2563 Sleeve $3.50 2 usually ships 5-16 days
11 175-2099 Flanged bushing $8.30 4 ships same day
12 175-2854 Screw M8-1.25 x 45mm hex head stainless steel $3.60 2 ships same day
13 275-9322 Side pivot arm weldment (gray) (Tennant Industrial) $137.61 1 usually ships 1-5 days
14 173-1595 Clevis pin (OBSOLETE) $3.60 1 usually ships 5-16 days
15 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
16 175-6176 Cotter pin $2.20 1 ships same day
17 175-0765 Gas spring, 56lb, 6.3 stroke (Tennant Industrial) $156.65 1 usually ships 5-16 days
18 175-0761 Gas spring ball stud $7.20 2 usually ships 5-16 days
19 175-0766 CABLE, GLV .13D 015.5L .50EYE /.50EYE (Tennant Industrial) $49.10 1 usually ships 1-5 days
20 999-1368 Screw M8-1.25 x 60mm hex head stainless steel $3.41 1 ships same day
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
22 175-0762 NUT, RETAINER, .31-18 (Tennant Industrial) $22.88 2 usually ships 1-5 days
23 175-0742 TUBE, 0.52ID 1.75OD 01.6L, STL (Tennant Industrial) $40.08 1 usually ships 1-5 days
24 175-0716 Clevis pin $3.60 1 usually ships 5-16 days
25 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
26 175-3281 Cotter pin $2.20 1 usually ships 5-16 days
27 175-3168 P clamp $3.60 1 usually ships 5-16 days
28 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
