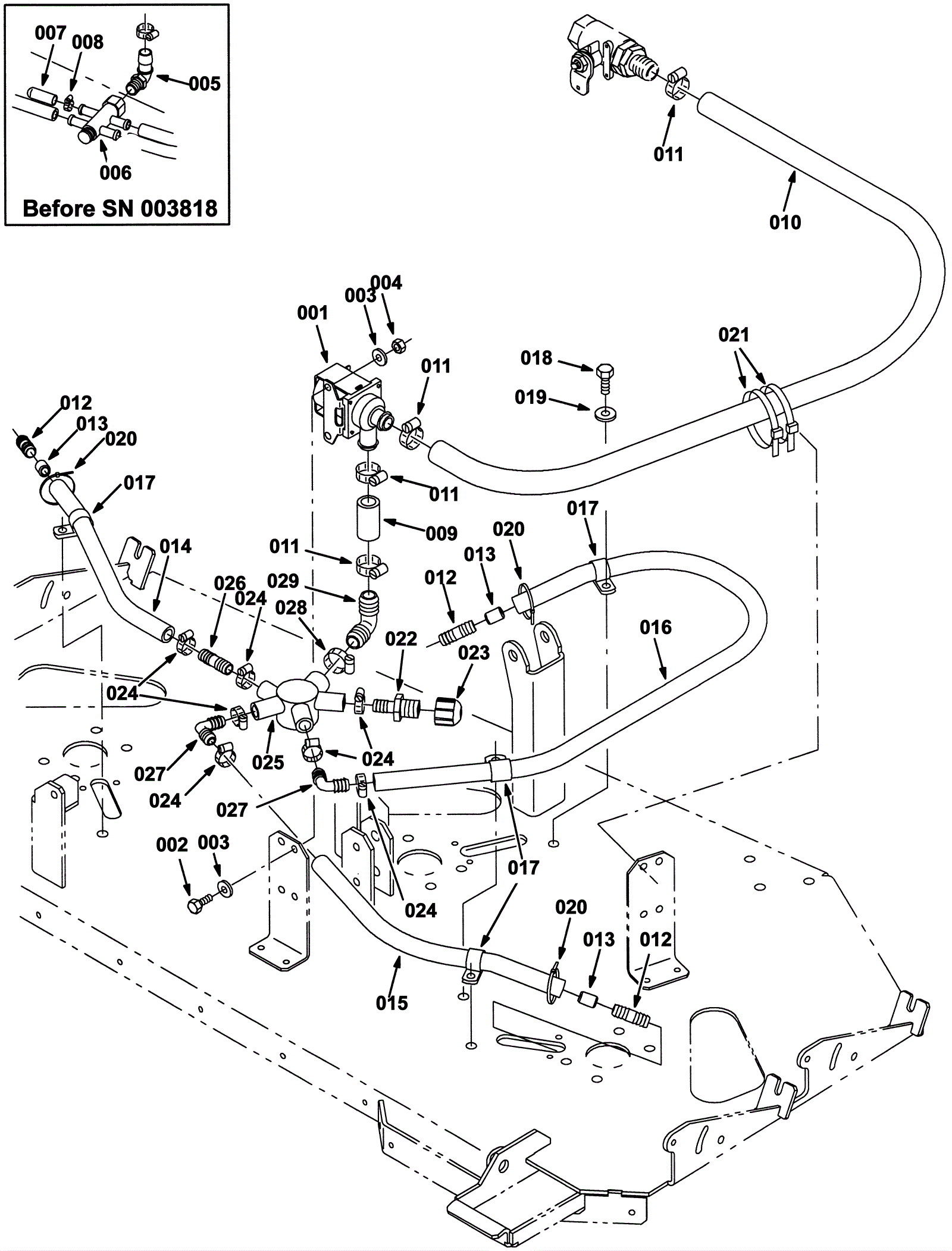

Max Pro 1200 Solution Valve Assembly - Disc

#PartDescription ReqNotesAvailability
002 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
003 999-0123 Washer 1/4 SAE flat zinc plated 4
004 999-0497 Nut M6-1 nylon insert lock stainless steel 2
005 275-8603 FITTING, PLSTC, E90, BM12/PM08 (Tennant Industrial) 1 (before SN 003817)
006 275-2227 FITTING, PLSTC, MANIFOLD, BM06/PF08 [4] (Tennant Industrial 1 (before SN 003817)
007 275-8604 CAP, RBR, 0.50ID 1.18L BLK (Tennant Industrial) 1 (before SN 003817)
008 175-6081 Hose clamp 1 (before SN 003817)
009 275-2184 HOSE, PVC, BRD, 0.75ID 1.03OD 002.0L,CLR (Tennant Industria 1
010 175-0749 HOSE, PVC, BRD, 0.75ID 1.03OD 044.5L,CLR (Tennant Industria 1
011 175-0199 Hose clamp 4
012 175-5209 FITTING, PLSTC, STR, BM08/BM08 (Tennant Industrial) 3
013 275-2230 FITTING, PLSTC, RST, .50OD/.31ID (Tennant Industrial) 3
014 175-9685 Vinyl braided hose .5id .8od 18l 1
015 175-5229 HOSE, AFMKT, PVC, BRD, 0.50ID, 02FT, CLR (Tennant Industria 1
016 175-9681 HOSE, PVC, BRD, 0.50ID 0.73OD 033.0L,CLR (Tennant Industria 1
017 175-3168 P clamp 4
018 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
019 999-9097 Washer M8 flat stainless steel 4
020 175-2162 Nylon wire tie 3
021 175-2226 Nylon wire tie 2
022 175-6924 Plastic strainer fitting 1 (after SN 003817)
023 275-8605 Plastic cap fitting 1 (after SN 003817)
024 175-6081 Hose clamp 7 (after SN 003817)
025 275-8606 MANIFOLD, CNTRL, SOLTN (Tennant Industrial) 1 (after SN 003817)
026 175-5209 FITTING, PLSTC, STR, BM08/BM08 (Tennant Industrial) 1 (after SN 003817)
027 175-5233 Plastic fitting 2 (after SN 003817)
028 175-2159 Hose clamp 1 (after SN 003817)
029 275-2183 FITTING, PLSTC, E90, BM12/BM12 (Tennant Industrial) 1 (after SN 003817)
