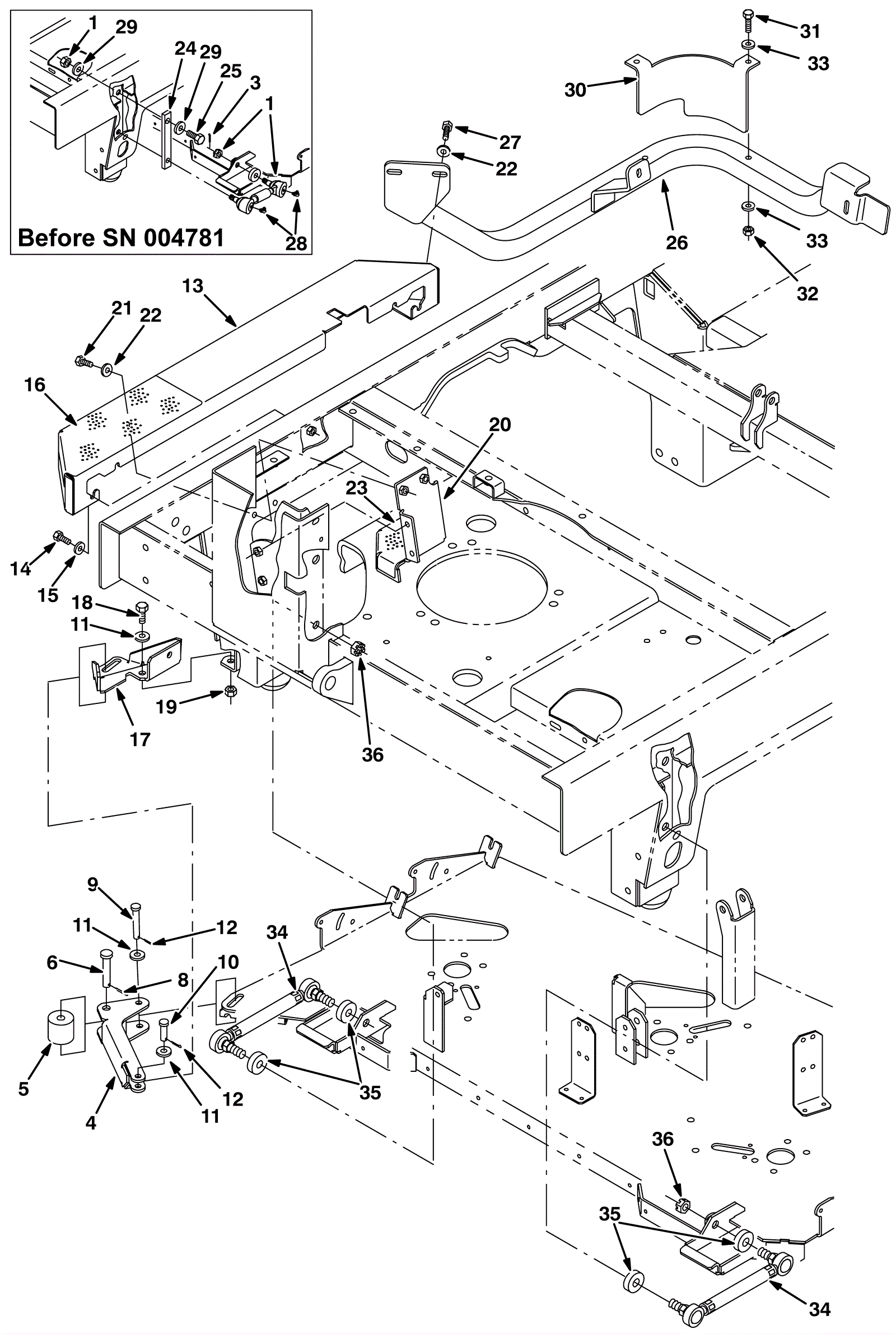

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-2563
|
Rod-end link assembly (Tennant Industrial) |
2 |
(before SN 004781) |
|
2 |
275-2563
|
Rod-end link assembly (Tennant Industrial) |
2 |
(before SN 004781) |
|
3 |
175-2040
|
Cotter pin |
4 |
(before SN 004781) |
|
4a |
275-8346
|
GUARD, KICK IN, SCB HEAD (Tennant Industrial) |
1 |
(before SN 007000) |
|
4b |
275-9318
|
Scrub head kick in guard (iron gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
5 |
175-0742
|
TUBE, 0.52ID 1.75OD 01.6L, STL (Tennant Industrial) |
1 |
|
|
6 |
175-0716
|
Clevis pin |
1 |
|
|
7 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
2 |
(before SN 004781) |
|
8 |
175-3281
|
Cotter pin |
1 |
|
|
9 |
175-0743
|
PIN, CLEVIS, 0.38D X 2.50L (Tennant Industrial) |
1 |
|
|
10 |
175-0744
|
Clevis pin .37D x 1 5/16 |
1 |
|
|
11 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
12 |
175-6176
|
Cotter pin |
2 |
|
|
13a |
275-8595
|
BUMPER, SIDE, SCB HEAD, WIDE (Tennant Industrial) |
1 |
(before SN 007000) |
|
13b |
275-2558
|
Scrub head side bumper (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
14 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
|
15 |
999-0024
|
Washer 5/16 flat stainless steel |
6 |
|
|
16 |
275-8596
|
TREAD, NON-SKID, 05.8W 12.5L, BMPR, SIDE (Tennant Industria |
1 |
|
|
17a |
275-8597
|
BRACKET, ADAPTER, MTG, KICK IN, FRAME (Tennant Industrial) |
1 |
(before SN 007000) |
|
17b |
275-2559
|
Frame bracket adapter (Tennant Industrial) |
1 |
(after SN 006999) |
|
18 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
|
19 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
|
20a |
275-8598
|
BRACKET, STEP (Tennant Industrial) |
1 |
(before SN 007000) |
|
20b |
275-2560
|
Step bracket (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
21 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
|
22 |
999-9097
|
Washer M8 flat stainless steel |
8 |
|
|
23 |
275-8599
|
TREAD, NON-SKID, STEP, 04.5W 05.6L (Tennant Industrial) |
1 |
|
|
24 |
N/A
|
Not available |
2 |
Link (before SN 004781) |
|
25 |
175-0647
|
SCREW, HEX, M12 X 1.75 X 40, 8.8 (Tennant Industrial) |
2 |
(before SN 004781) |
|
26a |
275-8600
|
GUARD WLDT, SQGE, REAR [MP1200] (Tennant Industrial) |
1 |
(before SN 007000) |
|
26b |
275-2561
|
Rear squeegee guard weldment (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
27 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
28 |
275-8601
|
FITTING, GREASE, E90 PM04 .75L (Tennant Industrial) |
4 |
(before SN 004781) |
|
29 |
999-0114
|
Washer 1/2 SAE flat |
4 |
(before SN 004781) |
|
30a |
275-8602
|
GUARD, BMPR (Tennant Industrial) |
1 |
(after SN 007000) |
|
30b |
275-2562
|
Bumper guard (gray) (Tennant Industrial) |
1 |
(before SN 006999) |
|
31 |
999-1297
|
Screw M8 x 50mm hex head stainless steel |
2 |
|
|
32 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
33 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
34 |
275-2563
|
Rod-end link assembly (Tennant Industrial) |
2 |
(after SN 004780) |
|
35 |
275-9320
|
Rod-end tube (gray) (Tennant Industrial) |
4 |
(after SN 004780) |
|
36 |
999-0403
|
Nut 5/8-18 nylon insert lock grade 8 yellow zinc |
4 |
(after SN 004780) |
|
