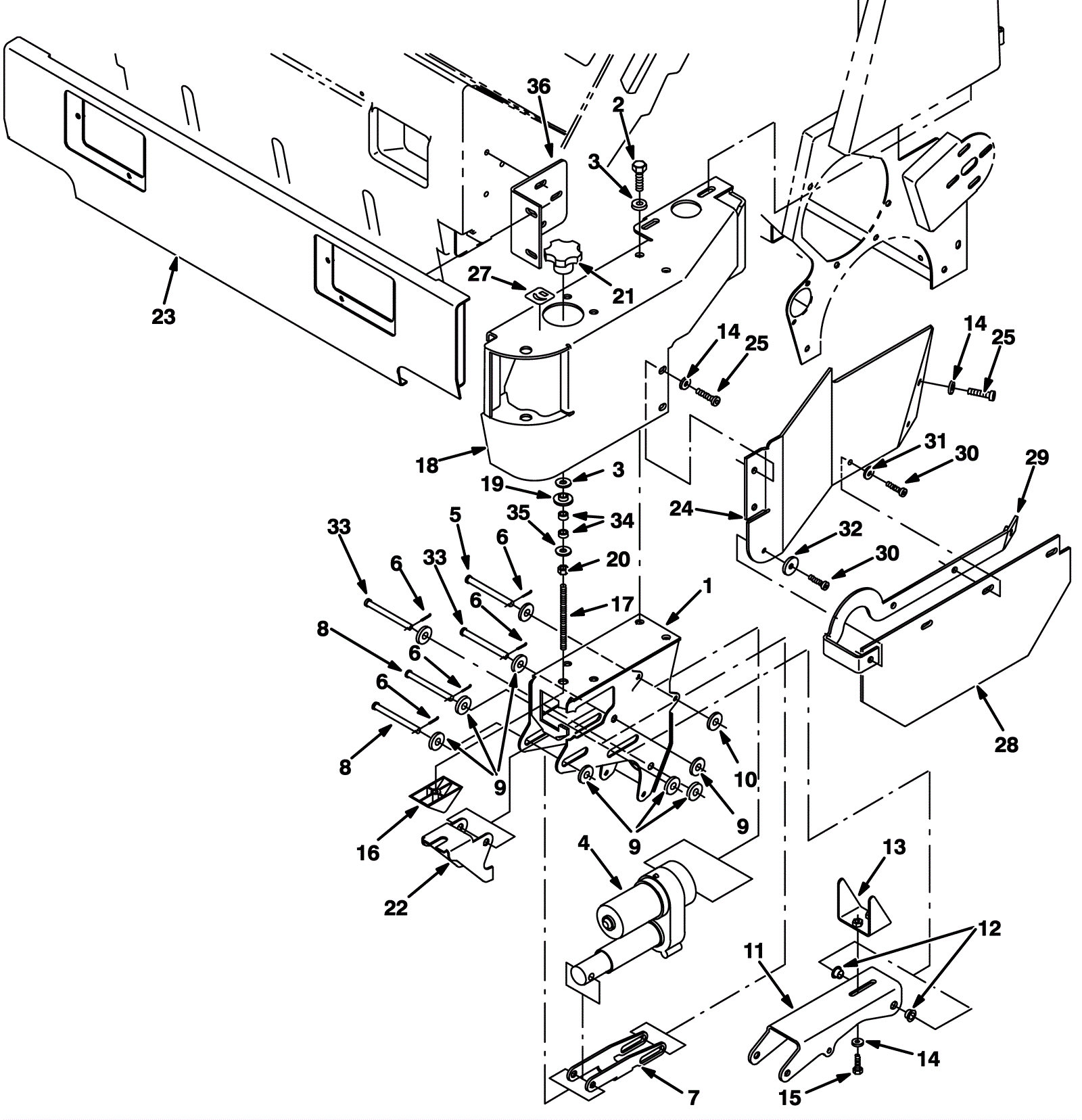

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7985
|
Side brush housing weldment (gray) (Tennant Industrial) |
1 |
|
|
2 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
4 |
|
|
3 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
4 |
175-2590
|
Stroke actuator |
1 |
|
|
5 |
275-3031
|
PIN, CLEVIS, 0.37D X 4.00L (Tennant Industrial) |
1 |
|
|
6 |
175-6176
|
Cotter pin |
5 |
|
|
7 |
275-7986
|
Iron bracket (gray) (Tennant Industrial) |
1 |
|
|
8 |
275-8369
|
PIN, CLEVIS, 0.50D X 4.00L (Tennant Industrial) |
2 |
|
|
9 |
999-0114
|
Washer 1/2 SAE flat |
8 |
|
|
10 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
11 |
275-7987
|
Iron channel (gray) (Tennant Industrial) |
1 |
|
|
12 |
175-3335
|
Flanged bushing |
2 |
|
|
13 |
275-7988
|
Iron bracket (gray) (Tennant Industrial) |
1 |
|
|
14 |
999-0024
|
Washer 5/16 flat stainless steel |
5 |
|
|
15 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
|
16 |
275-8372
|
BLOCK, ADJ (Tennant Industrial) |
1 |
|
|
17 |
275-0142
|
SHAFT, THRD (Tennant Industrial) |
1 |
|
|
18a |
275-8588
|
BUMPER WLDT, LH (Tennant Industrial) |
1 |
(before SN 007000) |
|
18b |
275-2552
|
Left hand bumper weldment (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
19 |
175-3287
|
Flanged bushing |
1 |
|
|
20 |
999-1281
|
Nut M10-1.25 hex fine thread |
1 |
|
|
21 |
275-0141
|
KNOB, STAR, 2.50D 5EAR 1.5L .38-16,PLSTC (Tennant Industria |
1 |
|
|
22 |
275-7989
|
Iron pivot bracket (gray) (Tennant Industrial) |
1 |
|
|
23a |
275-8589
|
BUMPER WLDT (Tennant Industrial) |
1 |
(before SN 007000) |
|
23b |
275-2553
|
Bumper weldment (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
24a |
275-8590
|
DOOR, BRUSH, LH (Tennant Industrial) |
1 |
(before SN 007000) |
|
24b |
275-2554
|
Left hand brush door (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
25 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
3 |
|
|
26 |
275-8373
|
WASHER, FLAT, 0.81B 1.24D .03, STL, PL (Tennant Industrial) |
1 |
|
|
27 |
275-8376
|
LABEL, INFO, BRUSH, SIDE, ADJ (Tennant Industrial) |
1 |
|
|
28 |
275-8354
|
SKIRT, NEO, .18, 04.25W 23.53L, 04/ SL (Tennant Industrial) |
1 |
|
|
29 |
275-2555
|
Iron strip (gray) (Tennant Industrial) |
1 |
|
|
30 |
275-0443
|
Screw M8-1.25 x 25 button head stainless steel |
4 |
|
|
31 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
|
32 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
33 |
175-2116
|
Clevis pin |
2 |
|
|
34 |
175-2814
|
Spacer |
2 |
|
|
35 |
999-0032
|
Washer 3/8 USS flat plain finish |
1 |
|
|
36a |
275-8591
|
ANGLE, BMPR, MTG, LH (Tennant Industrial) |
1 |
(before SN 007000) |
|
36b |
275-2556
|
Left hand bumper mounting angle (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
