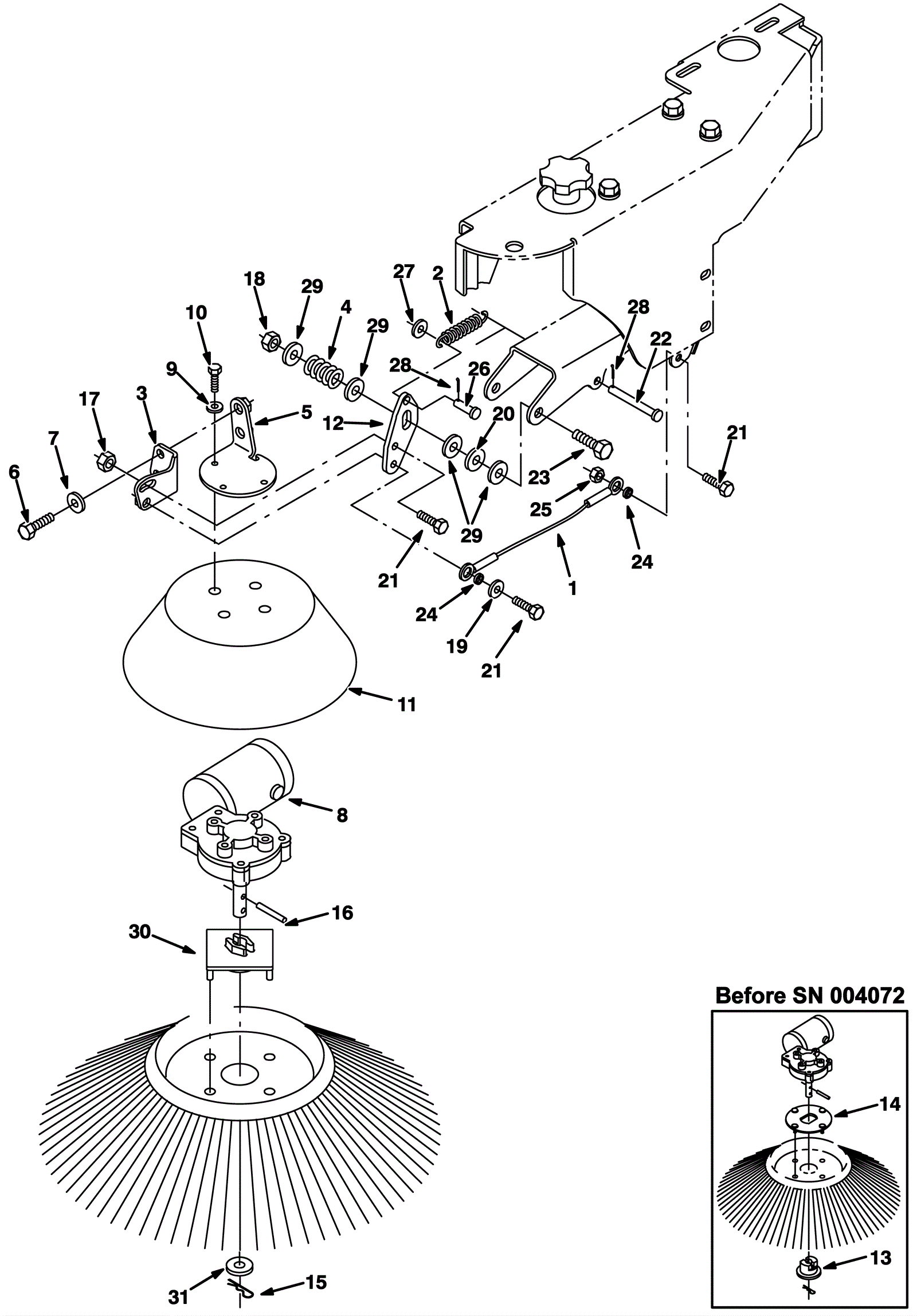

Side Brush Motor and Pivot Assembly - Left

#PartDescription ReqNotesAvailability
1 275-0833 Cable 1
2 275-0154 SPRING, EXTN, 1.10OD 0.15WIR 03.2L (Tennant Industrial) 1
3 275-2550 Motor mounting bracket (gray) (Tennant Industrial) 2
4 275-0157 SPRING, DSL, 1.00OD 0.50ID 1.25L (Tennant Industrial) 2
5 275-2551 Motor mounting bracket (gray) (Tennant Industrial) 1
6 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 2
7 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
8a 275-4683 Electric motor 36VDC .08hp 1 (includes 8b-8e)
8b 275-0109 Carbon brush assembly 1
8c 175-9270 Brush cap 2
8d 175-9271 Brush holder 2
8e 175-9272 Clip 2
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
10 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
11 275-8358 GUARD, BRUSH, SIDE, 10.5D 3.8H (Tennant Industrial) 1
12 275-7980 Iron plate (gray) (Tennant Industrial) 1
13 275-8360 HUB, ADAPTER, BRUSH, 1.7D 0.6B 1.4L (Tennant Industrial) 1 (before SN 004072)
14 275-8361 PLATE, ADAPTER, BRUSH (Tennant Industrial) 1 (before SN 004072)
15 175-2117 Cotter pin 1
16 275-1660 PIN, ROLL, .250D X 2.00L, .250/.256 (Tennant Industrial) 1
17 999-0665 Nut M8-1.25 flange lock 1
18 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
19 999-0024 Washer 5/16 flat stainless steel 1
20 175-3354 Thrust washer 1
21 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 3
22 275-8362 PIN, CLEVIS, 0.37D X 3.25L (Tennant Industrial) 1
23 999-1280 Screw M12-1.75 x 80mm hex 1
24 175-0550 Sleeve 2
25 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
26 175-9085 PIN, CLEVIS, 0.37D X 0.62L (Tennant Industrial) 1
27 999-9097 Washer M8 flat stainless steel 1
28 175-6176 Cotter pin 2
29 999-0114 Washer 1/2 SAE flat 4
30 275-7983 Brush adapter plate (Tennant Industrial) 1
31 275-7984 Washer (Tennant Industrial) (OBSOLETE) 1
