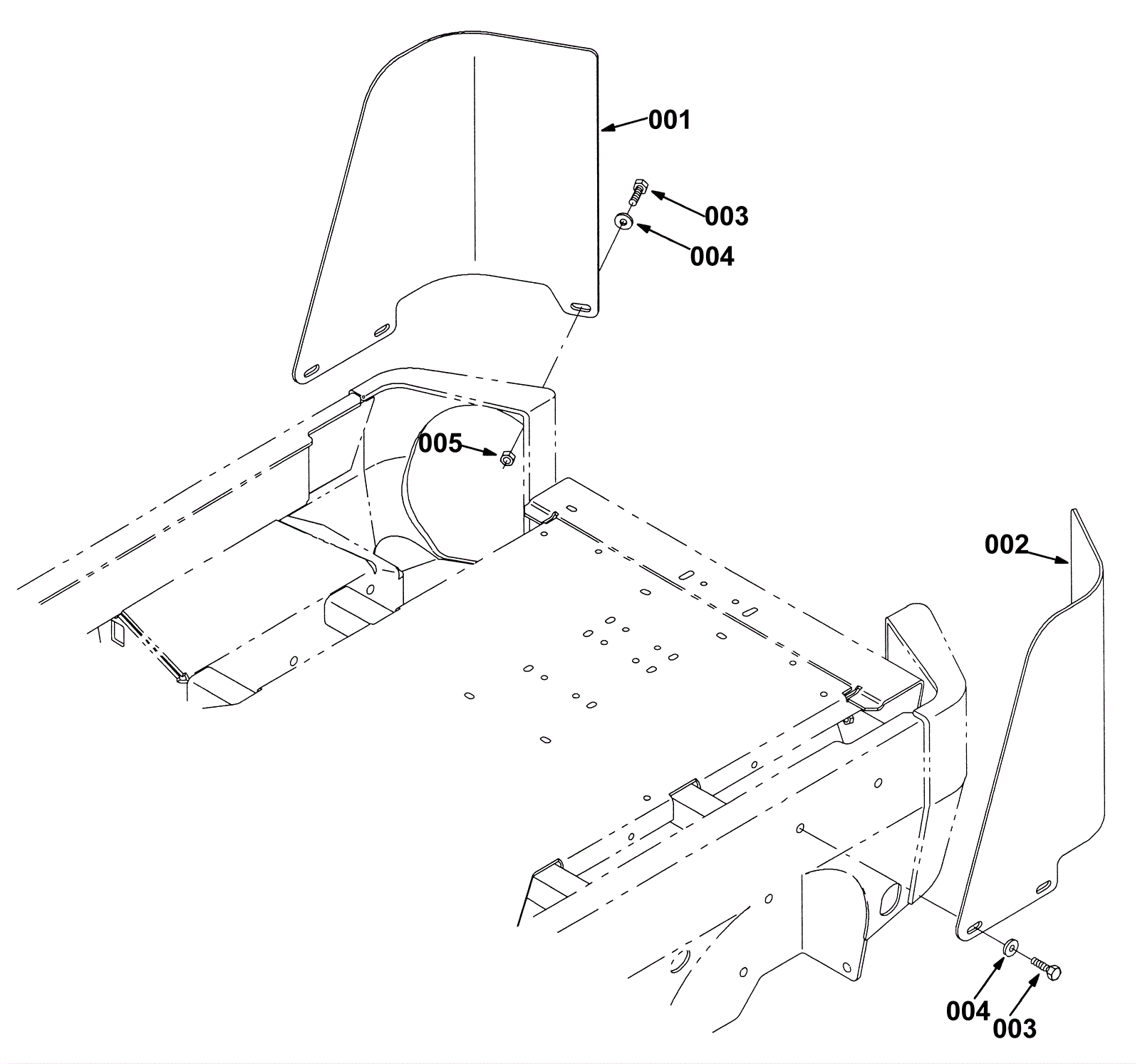

| # | Part | Description |
Req | Notes | Availability |
|---|
000a |
275-8577
|
BUMPER KIT, REAR, CI (Tennant Industrial) |
1 |
(before SN 007000) (includes 001a, 002a, and 003-005) |
|
000b |
275-2536
|
Rear bumper kit (Tennant Industrial) |
1 |
(after SN 006999) (includes 001b, 002b, and 003-005) |
|
001a |
275-8578
|
BUMPER, REAR, RH (Tennant Industrial) |
1 |
(before SN 007000) |
|
001b |
275-2537
|
Right hand rear bumper (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
002a |
275-8579
|
BUMPER, REAR, LH (Tennant Industrial) |
1 |
(before SN 007000) |
|
002b |
275-2538
|
Left hand rear bumper (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
003 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
6 |
|
|
004 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
6 |
|
|
005 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
