| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-8564
|

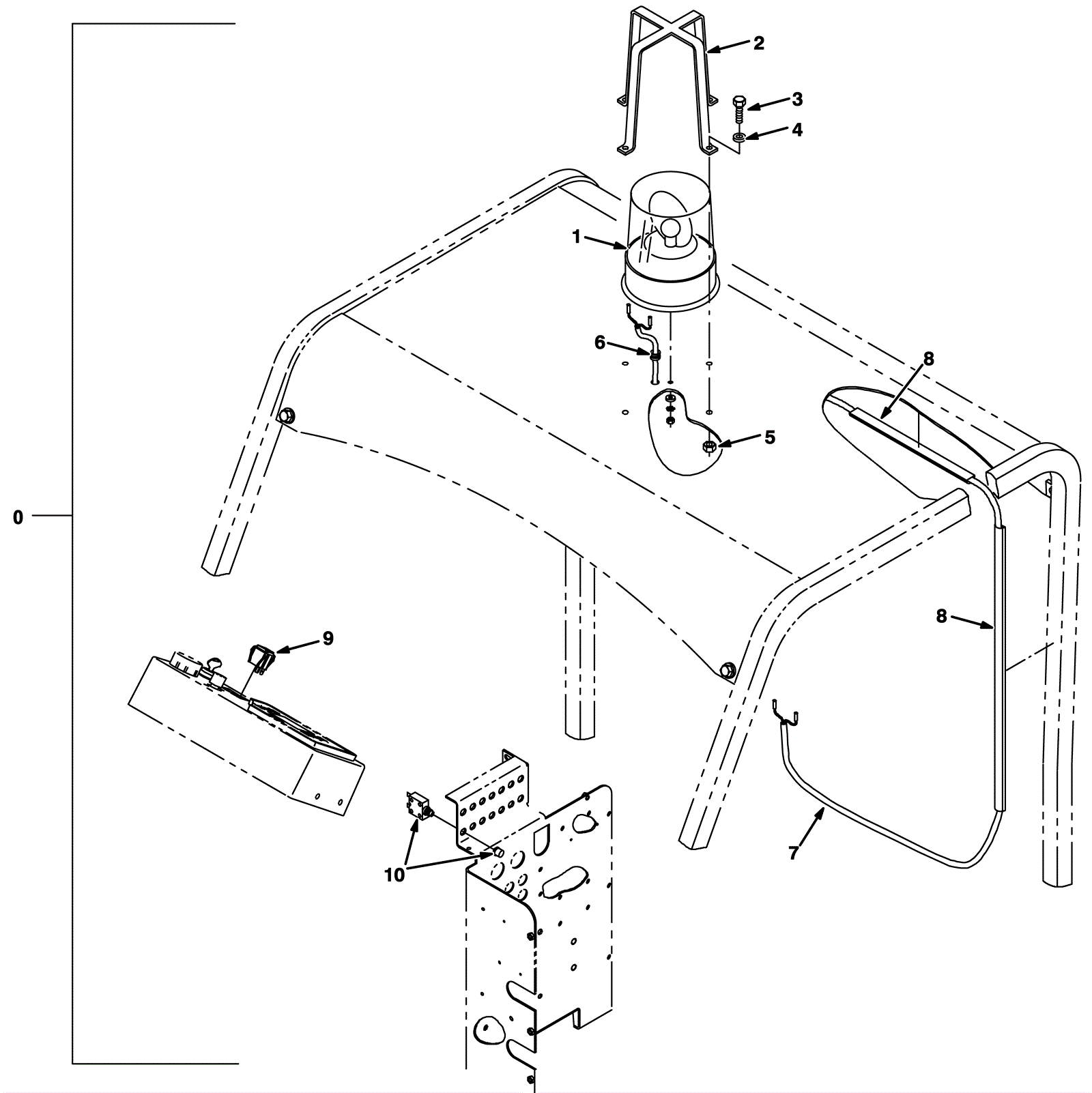

LIGHT KIT, REVL, W/ OHG, CI [7300/8300] (Tennant Industrial |
1 |
(includes 1-10) |
|
1a |
275-4242
|
LIGHT, REVL, 36VDC, AMB, RWK 44684 (Tennant Industrial) |
1 |
(includes 1b and 1c) |
|
1b |
175-5418
|
Revolving light amber lens |
1 |
|
|
1c |
175-5417
|
Lamp |
1 |
|
|
2 |
175-5420
|
Revolving/flashing light guard weldment |
1 |
|
|
3 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
4 |
|
|
4 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
5 |
999-0665
|
Nut M8-1.25 flange lock |
4 |
|
|
6 |
175-4401
|
GROMMET, RBR, 0.38ID, F/0.5H, .12 MATL (Tennant Industrial) |
1 |
|
|
7 |
275-8565
|
HARNESS, LIGHT, REVL, OHG (Tennant Industrial) |
1 |
|
|
8 |
175-3261
|
PVC duct |
2 |
|
|
9 |
175-0569
|
Rocker switch |
1 |
|
|
10 |
175-0842
|
15amp circuit breaker |
1 |
|
|
N/S |
175-5422
|
Revolving light red lens |
1 |
|
|
N/S |
175-5423
|
Revolving light blue lens |
1 |
|
|
