| # | Part | Description |
Req | Notes | Availability |
|---|

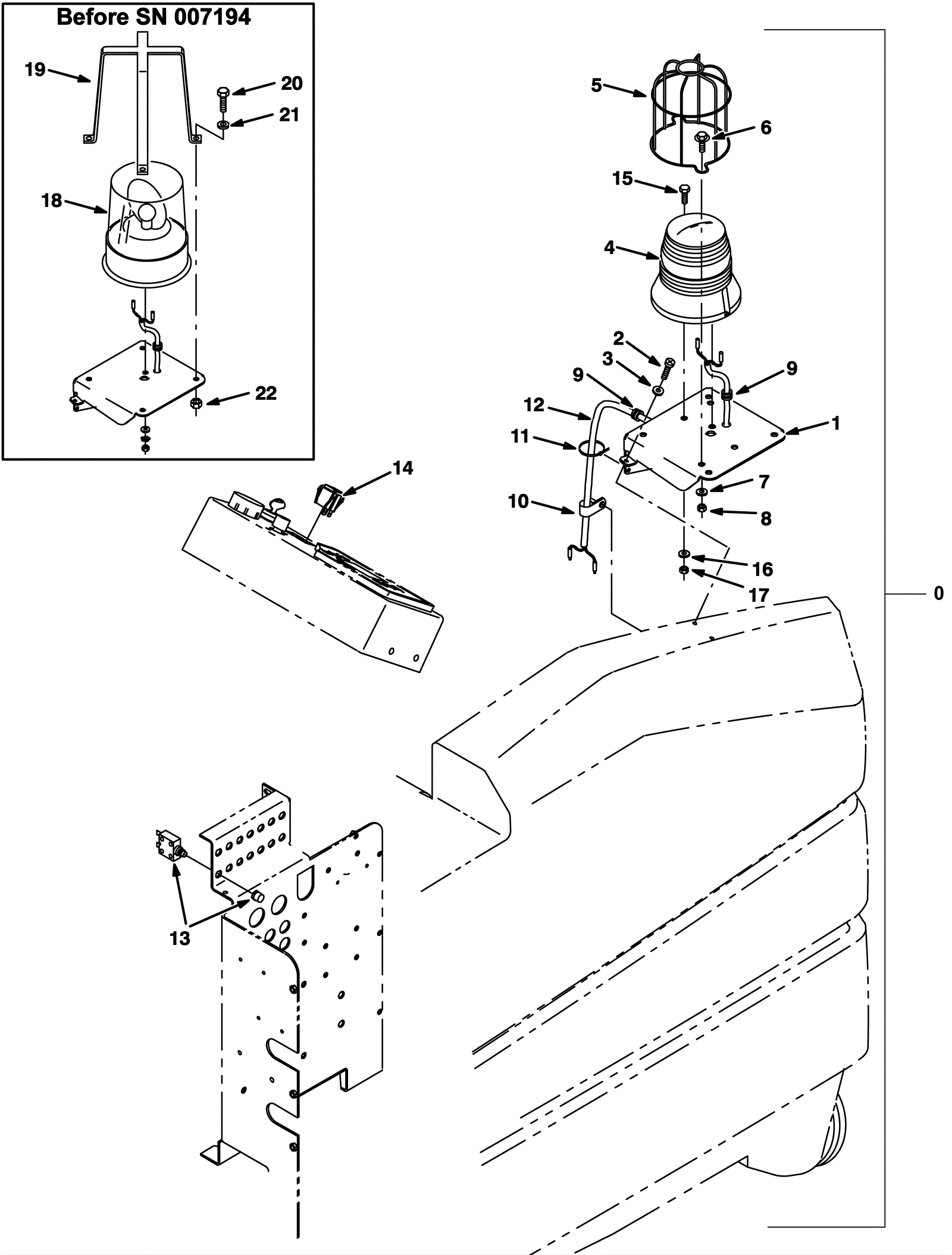

0a |
275-2471
|
Light kit without overhead guard (Tennant Industrial) |
1 |
(after SN 006999) (includes 1-17) |
|
0b |
275-8561
|
LIGHT KIT, REVL, W/O OHG, CI [7300/8300] (Tennant Industria |
1 |
(before SN 007000) (includes 1b-3, 9-14, 18, 19b, and 20-22) |
|
1a |
275-2470
|
Bracket (iron gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
1b |
275-8562
|
BRACKET, MTG (Tennant Industrial) |
1 |
(before SN 007000) |
|
2 |
999-1352
|
Screw 10-14 x 3/4 phillips pan head plastic thread rolling |
5 |
|
|
3 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
4a |
375-4398
|
LED strobe light (Tennant Industrial) |
1 |
(after SN 007193) (includes 4b and 4c) |
|
4b |
275-4675
|
Lens |
1 |
(after SN 007193) |
|
4c |
275-4678
|
Bulb |
1 |
(after SN 007193) |
|
5 |
275-7188
|
Light guard |
1 |
(after SN 007193) |
|
6 |
175-3382
|
Bolt M5-.8 x 25mm hex head stainless steel |
2 |
(after SN 007193) |
|
7 |
999-0998
|
Washer #10 flat stainless steel |
2 |
(after SN 007193) |
|
8 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
(after SN 007193) |
|
9 |
175-4401
|
GROMMET, RBR, 0.38ID, F/0.5H, .12 MATL (Tennant Industrial) |
2 |
|
|
10 |
175-5421
|
P clamp |
1 |
|
|
11 |
175-2162
|
Nylon wire tie |
1 |
|
|
12 |
275-8563
|
HARNESS, LIGHT, REVL, SHRD (Tennant Industrial) |
1 |
|
|
13 |
175-0842
|
15amp circuit breaker |
1 |
|
|
14 |
175-0569
|
Rocker switch |
1 |
|
|
15 |
175-0837
|
Bolt M5-.8 x 16mm hex head |
2 |
(after SN 007193) |
|
16 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
(after SN 007193) |
|
17a |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
(after SN 007193) |
|
17b |
275-7186
|
Lens (red) (Tennant Industrial) |
1 |
(after SN 007193) |
|
17c |
275-7187
|
Lens (blue) (Tennant Industrial) |
1 |
(after SN 007193) |
|
18a |
275-4242
|
LIGHT, REVL, 36VDC, AMB, RWK 44684 (Tennant Industrial) |
1 |
(before SN 007194) (includes 18b and 18c) |
|
18b |
175-5418
|
Revolving light amber lens |
1 |
(before SN 007194) |
|
18c |
175-5417
|
Lamp |
1 |
(before SN 007194) |
|
19a |
275-2469
|
Light guard weldment (Tennant Industrial) |
1 |
(after SN 006999 but before SN 007194) |
|
19b |
175-5420
|
Revolving/flashing light guard weldment |
1 |
(before SN 007000) |
|
20 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
4 |
(before SN 007194) |
|
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
(before SN 007194) |
|
22 |
999-0665
|
Nut M8-1.25 flange lock |
4 |
(before SN 007194) |
|
N/S |
175-5422
|
Revolving light red lens |
1 |
(after SN 007193) |
|
N/S |
175-5423
|
Revolving light blue lens |
1 |
(after SN 007193) |
|
