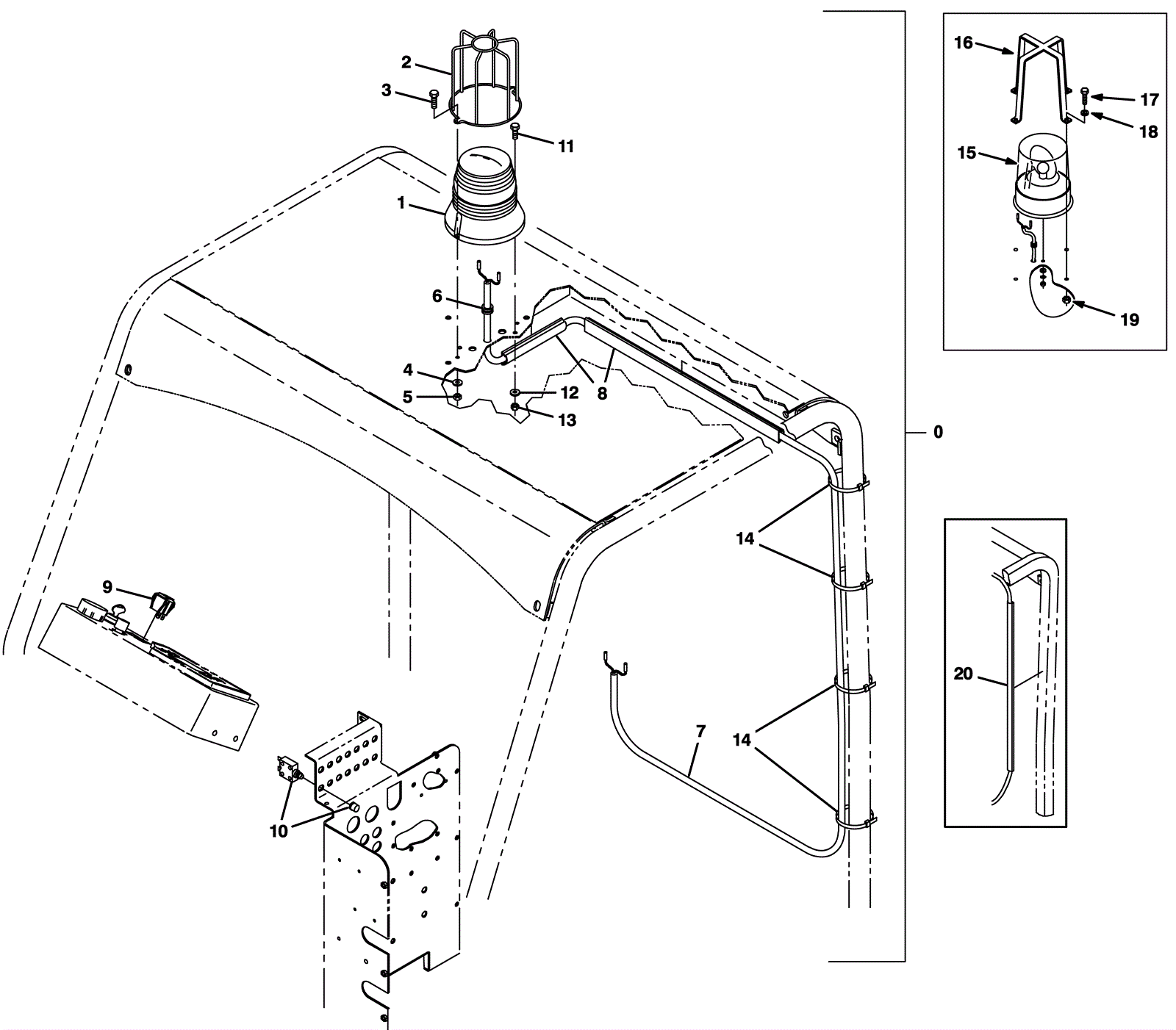

Revolving Light Overhead Guard Kit - After SN 006999

#PartDescription ReqNotesAvailability
0 275-2472 Light kit with overhead guard (Tennant Industrial) 1 (includes 1-14)
1a 375-4398 LED strobe light (Tennant Industrial) 1 (after SN 007193) (includes 1b and 1c)
1b 275-4675 Lens 1 (after SN 007193)
1c 275-4678 Bulb 1 (after SN 007193)
2 275-7188 Light guard 1 (after SN 007193)
3 175-3382 Bolt M5-.8 x 25mm hex head stainless steel 4 (after SN 007193)
4 999-0998 Washer #10 flat stainless steel 4 (after SN 007193)
5 999-0740 Nut M5-.8 hex stainless steel 4 (after SN 007193)
6 175-4401 GROMMET, RBR, 0.38ID, F/0.5H, .12 MATL (Tennant Industrial) 1
7 275-8565 HARNESS, LIGHT, REVL, OHG (Tennant Industrial) 1
8 175-3261 PVC duct 1
9 175-0569 Rocker switch 1
10 175-0842 15amp circuit breaker 1
11 175-0837 Bolt M5-.8 x 16mm hex head (after SN 007193)
12 999-0006 Washer 3/16 flat zinc plated (after SN 007193)
13 175-2894 Nut M5-.8 hex nylon locking (after SN 007193)
14 175-2226 Nylon wire tie 4 (after SN 007342)
15a 275-4242 LIGHT, REVL, 36VDC, AMB, RWK 44684 (Tennant Industrial) 1 (after SN 006999 but before SN 007194)
15b 175-5418 Revolving light amber lens 1 (after SN 006999 but before SN 007194)
15c 175-5417 Lamp 1 (after SN 006999 but before SN 007194)
16 275-2469 Light guard weldment (Tennant Industrial) 1 (after SN 006999 but before SN 007194)
17 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 4 (after SN 006999 but before SN 007194)
18 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4 (after SN 006999 but before SN 007194)
19 999-0665 Nut M8-1.25 flange lock 4 (after SN 006999 but before SN 007194)
20 175-3261 PVC duct 1 (after SN 006999 but before SN 007343)
N/S 275-7186 Lens (red) (Tennant Industrial) 1 (after SN 007193)
N/S 275-7187 Lens (blue) (Tennant Industrial) 1 (after SN 007193)
N/S 175-5422 Revolving light red lens 1 (after SN 006999 but before SN 007194)
N/S 175-5423 Revolving light blue lens 1 (after SN 006999 but before SN 007194)
