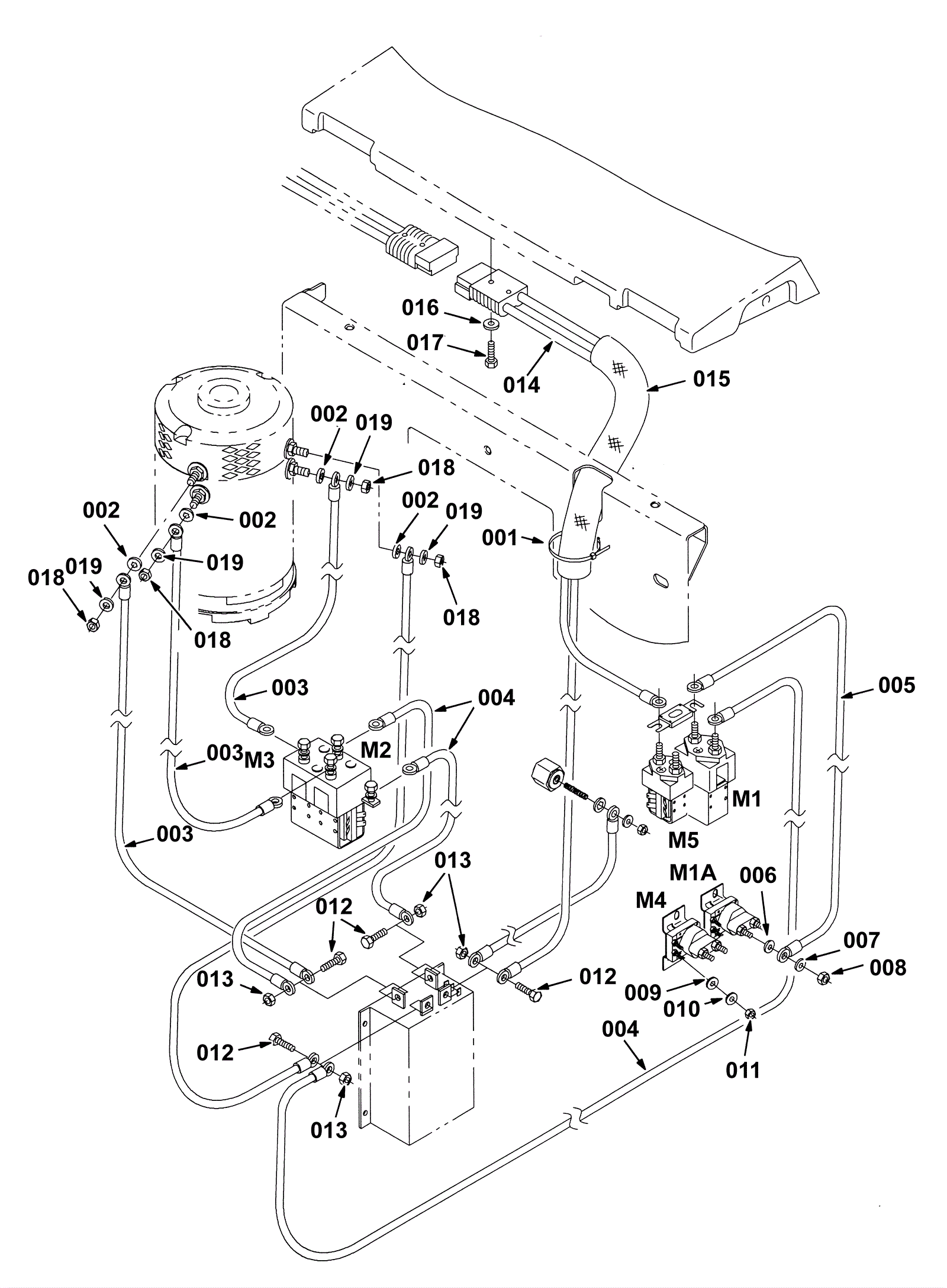

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-0862
|
TIE, CABLE, NYL, 28.3L .50W 8.0 MAX D (Tennant Industrial) |
4 |
|
|
002 |
999-0201
|
Washer 3/8 internal star lock |
2 |
|
|
003 |
175-0864
|
CABLE, 02GA 27.0L BLK .34RING /.34RING (Tennant Industrial) |
4 |
|
|
004 |
275-8541
|
CABLE, 02GA 10.0L BLK .34RING /.34RING (Tennant Industrial) |
4 |
|
|
005 |
175-2120
|
6 gauge black wire jumper cable |
1 |
|
|
006 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
4 |
|
|
007 |
175-0867
|
WASHER, FLAT, 1.50B 3.50D .18, PL (Tennant Industrial) |
4 |
|
|
008 |
175-0849
|
Nut 5/16-24 hex |
4 |
|
|
009 |
999-1026
|
Washer #10 internal lock stainless steel |
4 |
|
|
010 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
011 |
999-0460
|
Nut 10-32 hex |
4 |
|
|
012 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
|
013 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
014 |
175-0869
|
HARNESS, BATTERY, CONNECTING (Tennant Industrial) |
1 |
|
|
015 |
175-0870
|
SLEEVE, NYL, 1.06ID 14.0L (Tennant Industrial) |
1 |
|
|
016 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
017 |
175-0758
|
Bolt M6-1 x 40mm hex head stainless steel |
2 |
|
|
018 |
999-0579
|
Nut M8-1.25 hex coarse thread zinc |
4 |
|
|
019 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
