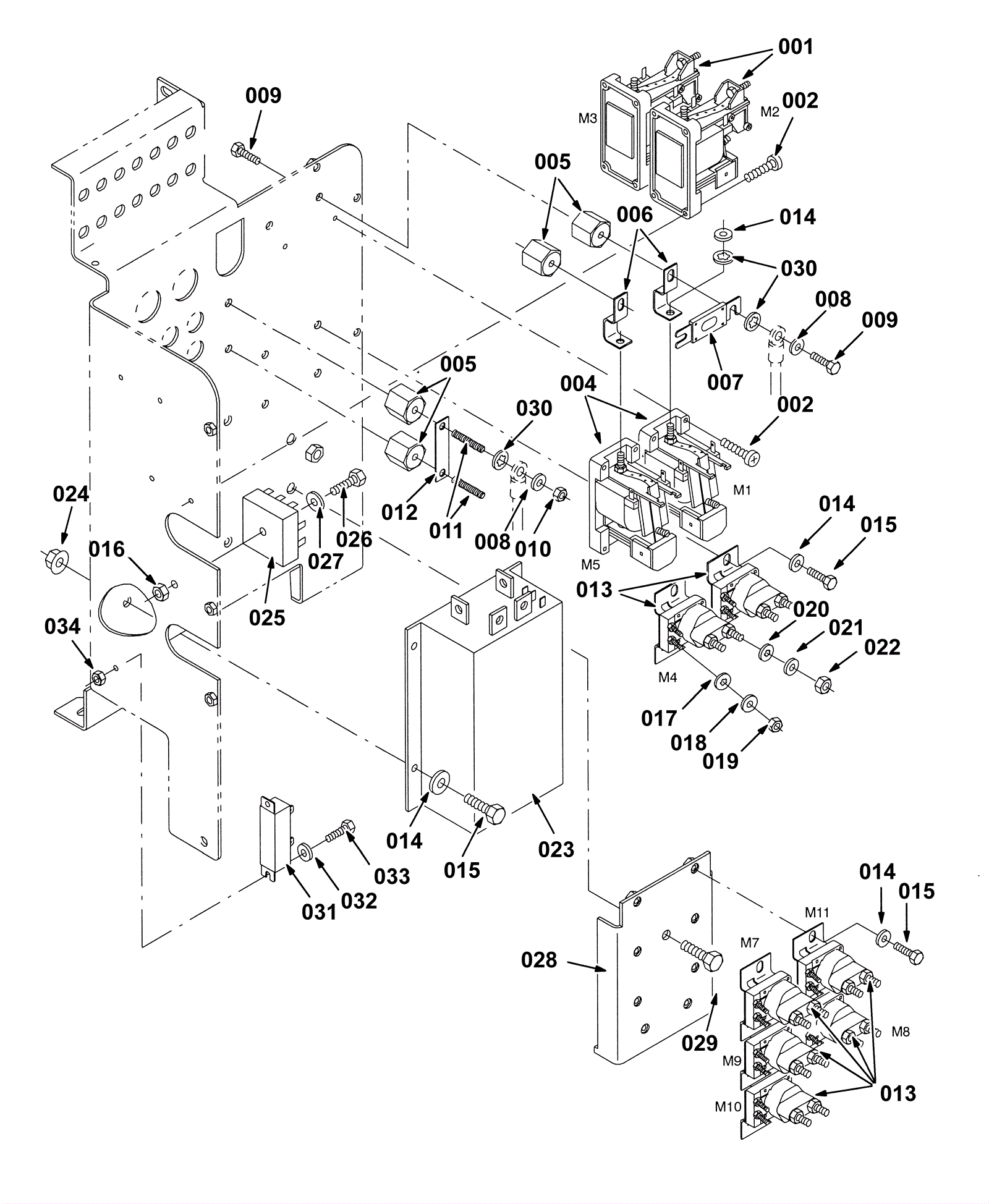

8300 Control Box Contactor Assembly - Before SN 003546

#PartDescriptionPriceReqNotesAvailability
001 175-0845 RELAY, 36VDC, 100A, SPDT NO [CABELFORM] (Tennant Industrial $520.71 2 usually ships 1-5 days
002 999-0789 Screw M4-.7 x 20mm hex head $0.99 8 ships same day
003 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 8 ships same day
004 275-4173 CONTACTOR, 36VDC [SPNO] (Tennant Industrial) $535.90 2 usually ships 1-5 days
005 175-3226 Insulated stand off $8.50 4 ships same day
006 175-0846 BUSBAR, FUSE, .6 0.6W 0.8H 2.0L (Tennant Industrial) $35.07 2 usually ships 1-5 days
007 275-8535 FUSE, 200A, 0.88 2.4L [SLO-BLO] (Tennant Industrial) $89.35 1 usually ships 1-5 days
008 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
009 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc $4.17 6 ships same day
010 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
011 175-3227 Threaded rod $6.70 2 usually ships 1-5 days
012 175-0848 BUSBAR, .06 0.6W 2.5L 2/.28H (Tennant Industrial) $18.20 1 usually ships 1-5 days
013 175-2373 36V contactor $32.20 7 ships same day
014 999-0016 Washer 1/4 flat plain finish $0.99 20 ships same day
015 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 14 ships same day
016 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 7 ships same day
017 999-0089 Washer #10 internal star lock zinc plated $0.99 14 ships same day
018 999-0006 Washer 3/16 flat zinc plated $0.99 14 ships same day
019 999-0460 Nut 10-32 hex $0.99 14 ships same day
020 999-0406 Washer 5/16 internal star lock zinc plated $0.99 14 ships same day
021 175-0849 Nut 5/16-24 hex $2.40 14 usually ships 1-5 days
022 275-8536 CONTROLLER, MOTOR, 36VDC 400A [CURT1205] (Tennant Industria $2,933.86 14 usually ships 1-5 days
023 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 1 ships same day
024 275-8537 Module $143.00 4 usually ships 5-16 days
025 175-0574 Bolt 6mm-1 x 35 hex head $3.00 1 usually ships 5-16 days
026 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
027 275-8538 PLATE, MTG, CONTACTOR (Tennant Industrial) $139.78 1 usually ships 1-5 days
028 175-3436 Bolt 8mm-1.25 x 40mm hex head $3.00 1 usually ships 1-5 days
029 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
030 999-0238 Washer 1/4 internal star lock zinc plated $0.99 9 ships same day
031 175-0851 RESISTOR, 040.000HM, 0040WATT (Tennant Industrial) $51.60 1 usually ships 1-5 days
032 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
033 175-0852 Bolt 5mm-.8 x 12 hex head $3.60 2 usually ships 5-16 days
034 175-2894 Nut M5-.8 hex nylon locking $2.20 2 usually ships 5-16 days
