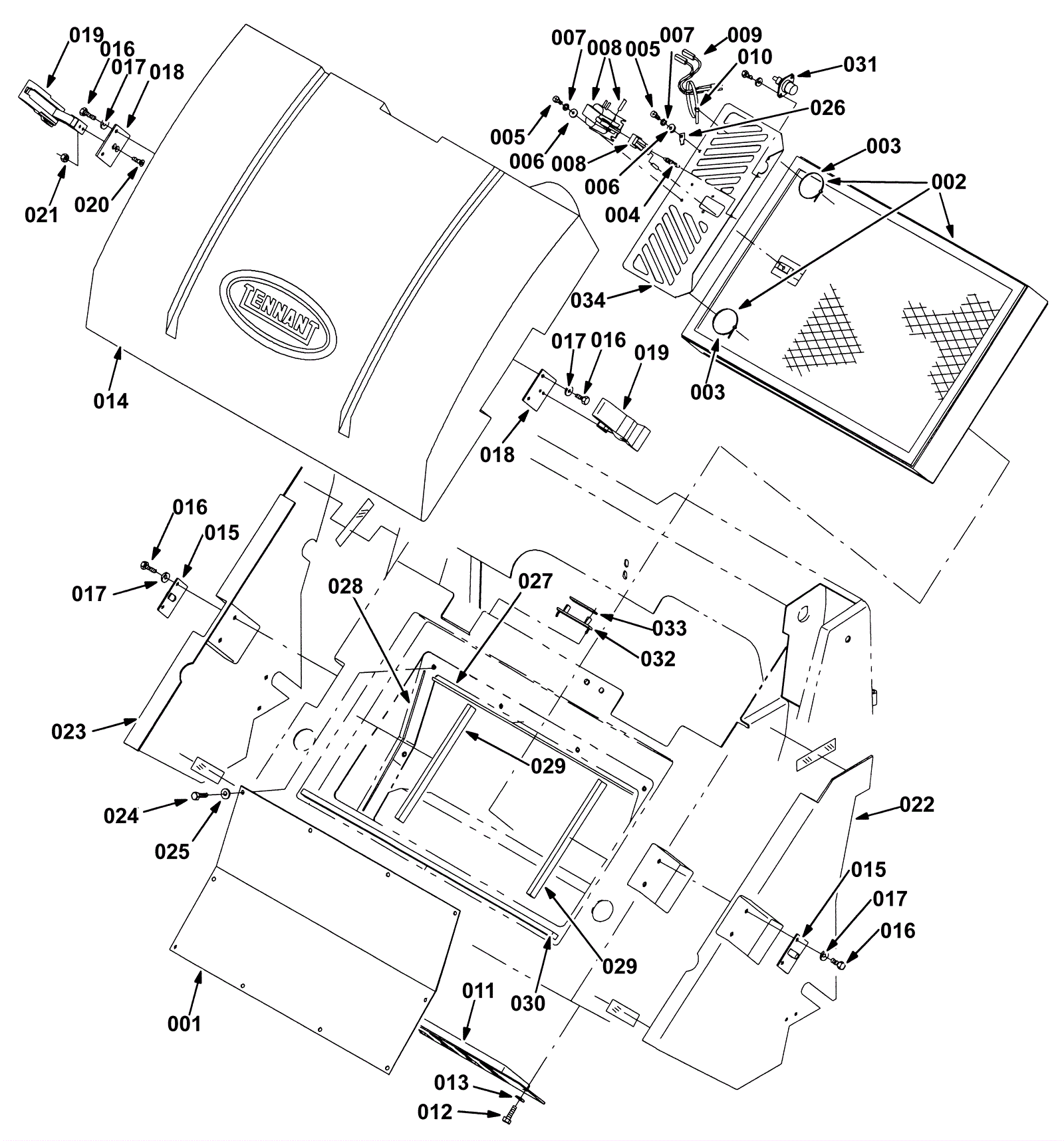

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
275-8494
|
PANEL, ACCESS (Tennant Industrial) |
1 |
(before SN 007000) |
|
001b |
275-2512
|
Iron access panel (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
002 |
275-2513
|
Filter (Tennant Industrial) |
1 |
(includes item 3) |
|
003 |
175-2162
|
Nylon wire tie |
2 |
|
|
004 |
275-6153
|
Spring |
1 |
|
|
005 |
999-0534
|
Screw M4-.7 x 10mm pan head slotted zinc |
5 |
|
|
006 |
999-0412
|
Washer #8 SAE flat |
5 |
|
|
007 |
999-0092
|
Washer #8 internal star lock zinc plated |
5 |
|
|
008 |
275-8495
|
Filter shaker solenoid |
1 |
|
|
009 |
275-0540
|
HARNESS, SOLENOID, SHAKR [6200] (Tennant Industrial) |
1 |
|
|
010 |
175-2162
|
Nylon wire tie |
1 |
|
|
011a |
275-8496
|
PANEL WLDT, PERMA-FILTER (Tennant Industrial) |
1 |
(before SN 007000) |
|
011b |
275-2514
|
Perma-filter panel weldment (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
012 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
|
013 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
014a |
275-8497
|
COVER, HPPR (Tennant Industrial) |
1 |
(before SN 007000) |
|
014b |
275-2515
|
Hopper cover (teal) (Tennant Industrial) |
1 |
(after SN 006999) |
|
015a |
275-8498
|
PLATE, LATCH, UPPER (Tennant Industrial) |
2 |
(before SN 007000) |
|
015b |
275-2516
|
Upper iron latch plate (gray) (Tennant Industrial) |
2 |
(after SN 006999) |
|
016 |
175-5113
|
Bolt M6 x 12mm hex head |
8 |
|
|
017 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
8 |
|
|
018a |
275-8499
|
PLATE, LATCH, LOWER (Tennant Industrial) |
2 |
(before SN 007000) |
|
018b |
275-2517
|
Lower iron latch plate (gray) (Tennant Industrial) |
2 |
(after SN 006999) |
|
019 |
275-8500
|
LATCH (Tennant Industrial) |
2 |
|
|
020 |
275-3071
|
SCREW, FLT, SOC, M5 X 0.80 X 12, 10.9 (Tennant Industrial) |
4 |
|
|
021 |
175-2894
|
Nut M5-.8 hex nylon locking |
4 |
|
|
022a |
275-8501
|
PANEL KIT, LH (Tennant Industrial) |
1 |
(before SN 007000) |
|
022b |
275-2518
|
Left hand panel kit (teal) (Tennant Industrial) |
1 |
(after SN 006999) |
|
023a |
275-8502
|
PANEL KIT, RH (Tennant Industrial) |
1 |
(before SN 007000) |
|
023b |
275-2519
|
Right hand panel kit (teal) (Tennant Industrial) |
1 |
(after SN 006999) |
|
024 |
175-5113
|
Bolt M6 x 12mm hex head |
10 |
|
|
025 |
999-0016
|
Washer 1/4 flat plain finish |
10 |
|
|
026 |
275-1863
|
TERMINAL, TAB, .25 .19H .84L (Tennant Industrial) |
1 |
|
|
027 |
275-8503
|
SEAL, FOAM, 0.06 0.25W 22.0L, ADH (Tennant Industrial) |
2 |
|
|
028 |
275-8504
|
SEAL, VERTICAL (Tennant Industrial) |
2 |
|
|
029 |
275-8507
|
SEAL, RBR, OPEN, 0.50, 0.75L 10.0L ADH (Tennant Industrial) |
2 |
|
|
030 |
275-8508
|
SEAL, RBR, OPEN, 0.50, 0.75W 26.0L ADH (Tennant Industrial) |
1 |
|
|
031 |
275-8509
|
Thermostat |
1 |
|
|
032 |
175-0565
|
CLAMP, CABLE, RIBBON, BASE, .6W 2.7L (Tennant Industrial) |
1 |
|
|
033 |
175-0566
|
CLAMP, CABLE, RIBBON, HOLD-DOWN .6W 2.9L (Tennant Industria |
1 |
|
|
034 |
275-8510
|
ANGLE, MTG, SHAKR, FLTR (Tennant Industrial) |
1 |
|
|
