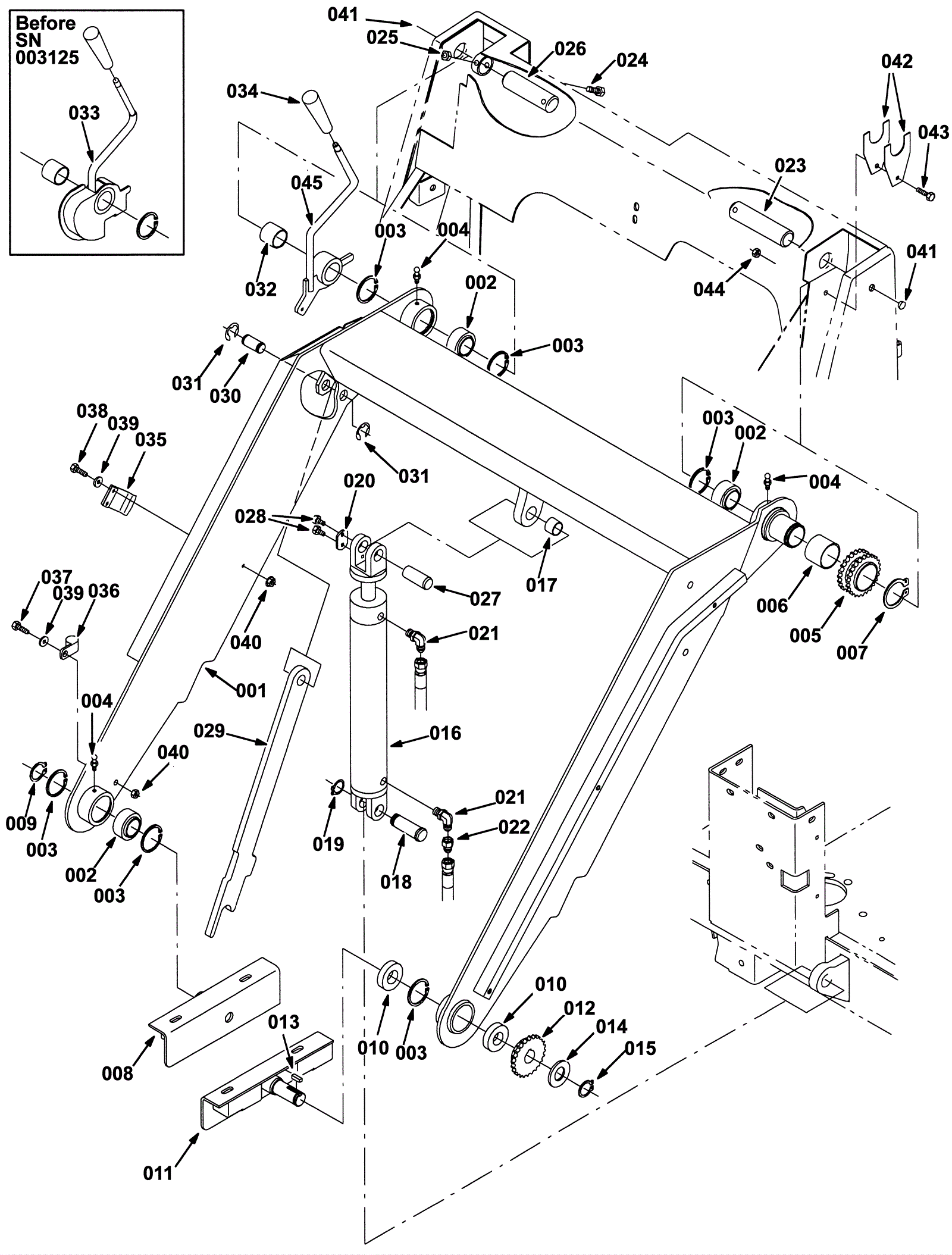

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
275-8452
|
ARM ASSY, LIFT, HPPR, W/ LABEL [8300] (Tennant Industrial) |
1 |
(before SN 007000) |
|
001b |
275-2504
|
Iron hopper lift arm assembly (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
002 |
275-2505
|
Self align bearing (Tennant Industrial) |
3 |
|
|
003 |
275-8454
|
RING, RETAINING, INT, 2.00D (Tennant Industrial) |
6 |
|
|
004 |
175-3248
|
Grease fitting |
3 |
|
|
005 |
275-2506
|
Sprocket weldment (Tennant Industrial) |
1 |
|
|
006 |
275-8456
|
BEARING, SLEEVE, 1.75ID (Tennant Industrial) |
1 |
|
|
007 |
275-8457
|
RING, RETAINING, EXT, 1.75D, HD (Tennant Industrial) |
1 |
|
|
008 |
275-2507
|
Right hand hopper bracket (gray) (Tennant Industrial) |
1 |
|
|
009 |
275-2038
|
RETAINER, RING (Tennant Industrial) |
1 |
|
|
010 |
275-8459
|
BEARING, BALL, 1.00B 2.00D 0.50W [2SEAL] (Tennant Industria |
2 |
|
|
011a |
275-8460
|
BRACKET, HPPR, LH (Tennant Industrial) |
1 |
(before SN 007000) |
|
011b |
275-2508
|
Left hand hopper iron bracket (Tennant Industrial) |
1 |
(after SN 006999) |
|
012 |
275-8461
|
SPROCKET, 40, 18TOOTH, 1.00B (Tennant Industrial) |
1 |
|
|
013 |
175-2236
|
Square keyway |
1 |
|
|
014 |
275-8462
|
WASHER, FLAT, 1.00 SAE, UNPL (Tennant Industrial) |
1 |
|
|
015 |
275-8463
|
RING, RETAINING, EXT, 1.00D (Tennant Industrial) |
1 |
|
|
016 |
275-8464
|
CYLINDER, HYD, 2.0B 21.3L 12.00STRK 2500 (Tennant Industria |
1 |
|
|
017 |
275-8465
|
BUSHING, SLEEVE, 0.88B 1.00D 0.75L, BNZ (Tennant Industrial |
1 |
|
|
018 |
275-8466
|
PIN, CLEVIS, GRVD, 0.88D X 2.25L (Tennant Industrial) |
1 |
|
|
019 |
275-8467
|
RING, RETAINING, EXT, 0.88D (Tennant Industrial) |
1 |
|
|
020 |
275-8468
|
PLATE, PIN, CLEVIS, UPPER (Tennant Industrial) |
1 |
|
|
021 |
175-6919
|
Elbow fitting |
2 |
|
|
022 |
275-0378
|
FITTING, HYD, RST, JF04/JM04, .047 (Tennant Industrial) |
1 |
|
|
023 |
275-8469
|
PIN, 1.25D 05.3L, 1/.34H, 2CHAM, STL (Tennant Industrial) |
1 |
|
|
024 |
999-0309
|
Bolt M8-1.25 x 50mm hex head part thread zinc |
2 |
|
|
025 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
026 |
275-8470
|
PIN, 1.25D 04.4L, 1/.34H, 2CHAM, STL (Tennant Industrial) |
1 |
|
|
027 |
275-8471
|
PIN, 0.87D 02.0L, M06 X 1.0 (Tennant Industrial) |
1 |
|
|
028 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
029 |
275-8472
|
Safety arm with decal (Tennant Industrial) (OBSOLETE) |
1 |
|
|
030 |
275-8473
|
PIN, ARM, SAFETY (Tennant Industrial) |
1 |
|
|
031 |
N/A
|
Not available |
2 |
Retaining ring |
|
032 |
275-8475
|
BEARING, SLEEVE, 1.25ID (Tennant Industrial) |
1 |
|
|
033 |
275-8480
|
LEVER ASSY, FLAP (Tennant Industrial) (OBSOLETE) |
1 |
(before SN 003125) |
|
034 |
275-8476
|
KNOB, 1.12D 3.86L M10 X 1.5, PLSTC TPR] (Tennant Industrial |
1 |
|
|
035 |
275-8477
|
CLIP, SPRING, PROP ARM (Tennant Industrial) |
1 |
|
|
036 |
175-3179
|
P clamp |
1 |
|
|
037 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
038 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
039 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
040 |
999-6694
|
Nut M6-1 hex serrated flange stainless steel |
3 |
|
|
041 |
175-2423
|
Nylon plug (black) |
2 |
|
|
042 |
275-8478
|
PLATE, SPACER, LIFT ARM (Tennant Industrial) |
4 |
|
|
043 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
044 |
999-6694
|
Nut M6-1 hex serrated flange stainless steel |
1 |
|
|
045 |
275-8479
|
LEVER WLDT, FLAP (Tennant Industrial) |
1 |
(after SN 003124) |
|
