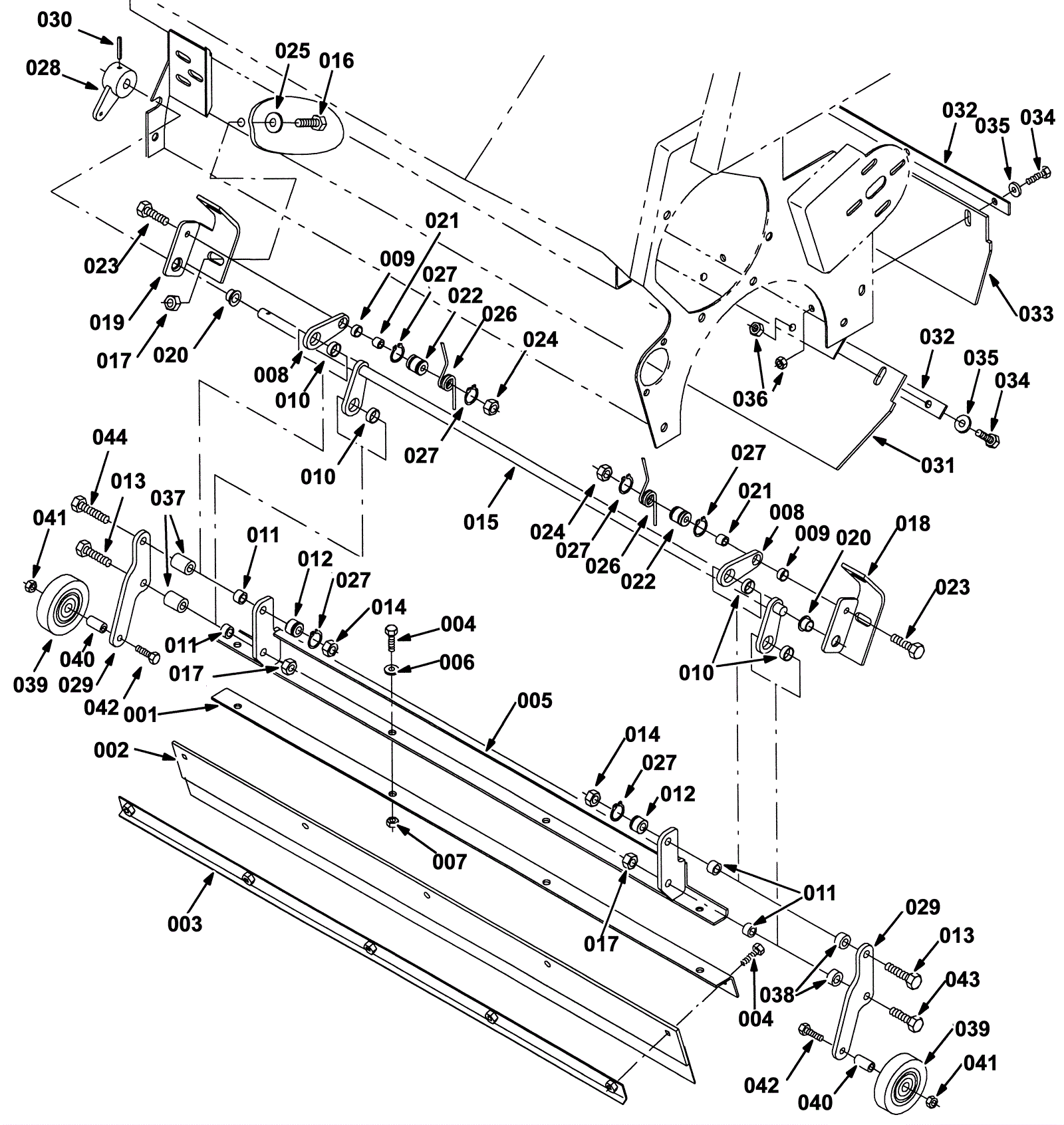

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
275-8432
|
ANGLE, MTG, FRONT (Tennant Industrial) |
1 |
(before SN 007000) |
|
001b |
275-2485
|
Front mounting angle (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
002 |
275-8275
|
FLAP, FRONT (Tennant Industrial) |
1 |
|
|
003 |
275-2493
|
Strip (gray) (Tennant Industrial) |
1 |
|
|
004 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
9 |
|
|
005a |
275-8434
|
CHANNEL WLDT (Tennant Industrial) |
1 |
(before SN 007000) |
|
005b |
275-2494
|
Weldment channel (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
006 |
999-9097
|
Washer M8 flat stainless steel |
4 |
|
|
007 |
999-1424
|
Nut M8-1.25 hex stainless steel |
4 |
|
|
008 |
275-2495
|
Arm (gray) (Tennant Industrial) |
2 |
|
|
009 |
175-6830
|
BUSHING, SLEEVE, 0.50B 0.59D 0.25L, OIB (Tennant Industrial |
2 |
|
|
010 |
275-8436
|
BUSHING, SLEEVE, 0.63B 0.72D 0.25L (Tennant Industrial) |
4 |
|
|
011 |
275-8437
|
BEARING, SLEEVE, 0.62OD (Tennant Industrial) |
4 |
|
|
012 |
275-8438
|
TUBE, 0.41ID 0.75OD 00.6L, SS, GRVD (Tennant Industrial) |
2 |
|
|
013 |
275-2926
|
SCREW, HEX, M10 X 1.50 X 70, 8.8 (Tennant Industrial) |
2 |
|
|
014 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
015 |
275-2496
|
Lower arm weldment (gray) (Tennant Industrial) |
1 |
|
|
016 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
4 |
|
|
017 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
4 |
|
|
018 |
275-2497
|
Left hand bar weldment (gray) (Tennant Industrial) |
1 |
|
|
019 |
275-2498
|
Right hand bar weldment (gray) (Tennant Industrial) |
1 |
|
|
020 |
175-3335
|
Flanged bushing |
2 |
|
|
021 |
275-8442
|
TUBE, 0.33ID 0.50OD 00.4L, SS (Tennant Industrial) |
2 |
|
|
022 |
275-8443
|
SPACER (Tennant Industrial) |
2 |
|
|
023 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
2 |
|
|
024 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
025 |
999-9099
|
Washer M10 flat stainless steel |
4 |
|
|
026 |
275-8444
|
SPRING, TORS, 0.81ID .09WIR 03.0COIL (Tennant Industrial) |
2 |
|
|
027 |
275-2003
|
Retaining ring (Tennant Industrial) |
6 |
|
|
028 |
275-2499
|
Flap arm weldment (gray) (Tennant Industrial) |
1 |
|
|
029a |
275-8446
|
LEG (Tennant Industrial) |
1 |
(before SN 007000) |
|
029b |
275-2500
|
Leg (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
030 |
275-1737
|
PIN, ROLL, .187D X 1.25L, .187/.192 (Tennant Industrial) |
1 |
|
|
031 |
275-8276
|
SKIRT, NEO, .18, 04.12W 36.11L, 04/ HOLE (Tennant Industria |
1 |
|
|
032 |
275-2501
|
Recirculation strip (gray) (Tennant Industrial) |
1 |
|
|
033 |
275-8277
|
SKIRT, NEO, .18, 05.85W 36.11L, 04/ SL (Tennant Industrial) |
1 |
|
|
034 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
4 |
|
|
035 |
999-0024
|
Washer 5/16 flat stainless steel |
8 |
|
|
036 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
8 |
|
|
037a |
275-8448
|
SPACER (Tennant Industrial) |
2 |
(before SN 007000) |
|
037b |
275-2502
|
Spacer (gray) (Tennant Industrial) |
2 |
(after SN 006999) |
|
038a |
275-8449
|
SPACER (Tennant Industrial) |
2 |
(before SN 007000) |
|
038b |
275-2503
|
Spacer (gray) (Tennant Industrial) |
2 |
(after SN 006999) |
|
039a |
175-2181
|
Wheel |
2 |
|
|
039b |
991-3030
|
Wheel |
2 |
(NON-OEM) |
|
039c |
991-3060
|
Bumper wheel |
1 |
(NON-OEM) |
|
040 |
175-2182
|
Sleeve |
2 |
|
|
041 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
042 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
2 |
|
|
043 |
275-8450
|
Screw M10-1.5 x 50mm stainless steel |
1 |
|
|
044 |
275-8451
|
SCREW, HEX, M10 X 1.50 X 80, 8.8 (Tennant Industrial) |
1 |
|
|
