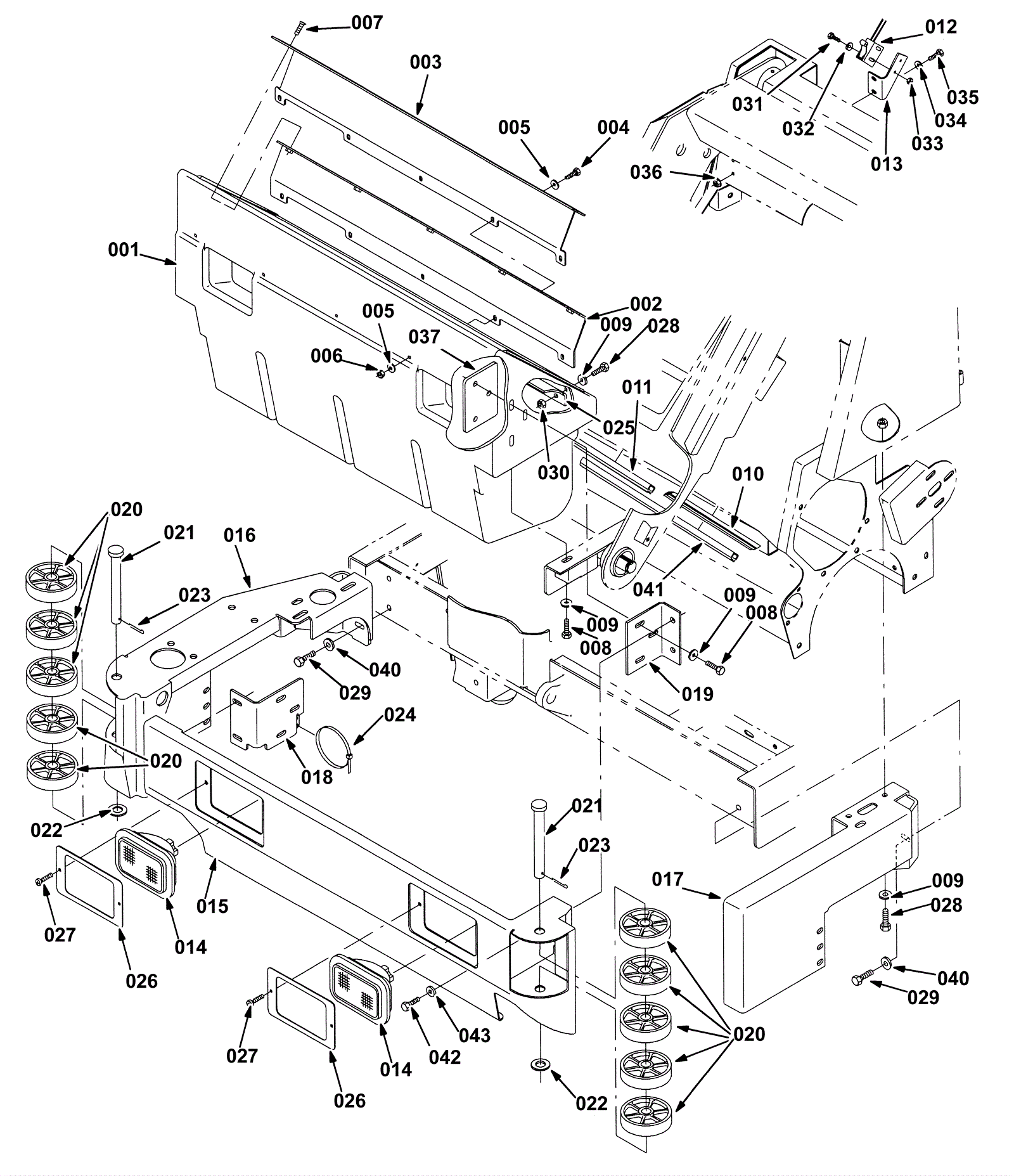

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
275-8413
|
HOPPER, SWPR [8300] (Tennant Industrial) |
1 |
(before SN 007000) |
|
001b |
275-2482
|
Hopper (teal) (Tennant Industrial) |
1 |
(after SN 006999) |
|
002a |
275-8415
|
BRACE, HPPR, INT (Tennant Industrial) |
1 |
(before SN 007000) |
|
002b |
275-2483
|
Hopper internal brace (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
003a |
275-8420
|
BRACE, HPPR, EXT (Tennant Industrial) |
1 |
(before SN 007000) |
|
003b |
275-2484
|
Hopper external brace (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
004 |
999-0518
|
Bolt M6-1 x 25mm hex head full thread zinc |
5 |
|
|
005 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
10 |
|
|
006 |
999-0439
|
Nut M6-1 hex coarse thread |
5 |
|
|
007 |
999-1282
|
Screw M6-1 x 25mm flat head phillips zinc |
5 |
|
|
008 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
|
009 |
999-0024
|
Washer 5/16 flat stainless steel |
18 |
|
|
010 |
275-8421
|
SEAL (Tennant Industrial) |
2 |
|
|
011 |
275-8422
|
SEAL (Tennant Industrial) |
1 |
|
|
012 |
175-5910
|
SWITCH, SNAP, 15A NO, RLR (Tennant Industrial) |
1 |
|
|
013a |
275-9076
|
Switch bracket (Tennant Industrial) |
1 |
(before SN 007000) |
|
013b |
N/A
|
Not available |
1 |
(switch bracket) (after SN 006999) |
|
014a |
175-0524
|
Headlight |
1 |
(includes 14b) |
|
014b |
175-3165
|
Lamp |
1 |
|
|
015a |
275-8423
|
BUMPER WLDT (Tennant Industrial) |
1 |
(before SN 007000) |
|
015b |
275-2486
|
Bumper weldment (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
016a |
275-8424
|
BUMPER WLDT, RH (Tennant Industrial) |
1 |
(before SN 007000) |
|
016b |
275-2487
|
Right hand bumper weldment (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
017a |
275-8425
|
BUMPER WLDT, LH (Tennant Industrial) |
1 |
(before SN 007000) |
|
017b |
275-2488
|
Left hand bumper weldment (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
018a |
275-8426
|
ANGLE, BMPR, MTG (Tennant Industrial) |
1 |
(before SN 007000) |
|
018b |
275-2489
|
Bumper mounting angle (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
019a |
275-8427
|
BRACKET, BMPR (Tennant Industrial) |
1 |
(after SN 003184 and before SN 007000) |
|
019b |
275-2490
|
Bumper bracket (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
020 |
175-0529
|
Wheel |
10 |
|
|
021 |
175-0530
|
PIN, CLEVIS, 0.75D X 6.50L (Tennant Industrial) |
2 |
|
|
022 |
999-0630
|
Washer 3/4 SAE flat |
2 |
|
|
023 |
175-0532
|
Cotter pin |
2 |
|
|
024 |
175-2162
|
Nylon wire tie |
3 |
|
|
025 |
275-8428
|
ANGLE (Tennant Industrial) |
1 |
|
|
026a |
275-8429
|
PLATE, HEADLIGHT (Tennant Industrial) |
2 |
|
|
026b |
275-2491
|
Headlight plate (gray) (Tennant Industrial) |
2 |
(after SN 006999) |
|
027 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
4 |
|
|
028 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
8 |
|
|
029 |
275-0025
|
Screw M10-1.5 x 25 hex head 8.8 |
4 |
|
|
030 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
031 |
175-0837
|
Bolt M5-.8 x 16mm hex head |
2 |
|
|
032 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
033 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
|
|
034 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
035 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
036 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
037 |
275-2492
|
Plate (gray) (Tennant Industrial) |
2 |
|
|
038 |
175-0634
|
Bolt M8-1 1/4 x 35mm hex head |
6 |
|
|
039 |
999-0665
|
Nut M8-1.25 flange lock |
4 |
|
|
040 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
041 |
275-9084
|
SEAL (Tennant Industrial) |
1 |
|
|
042 |
175-0634
|
Bolt M8-1 1/4 x 35mm hex head |
2 |
(after SN 003184) |
|
043 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
(after SN 003184) |
|
