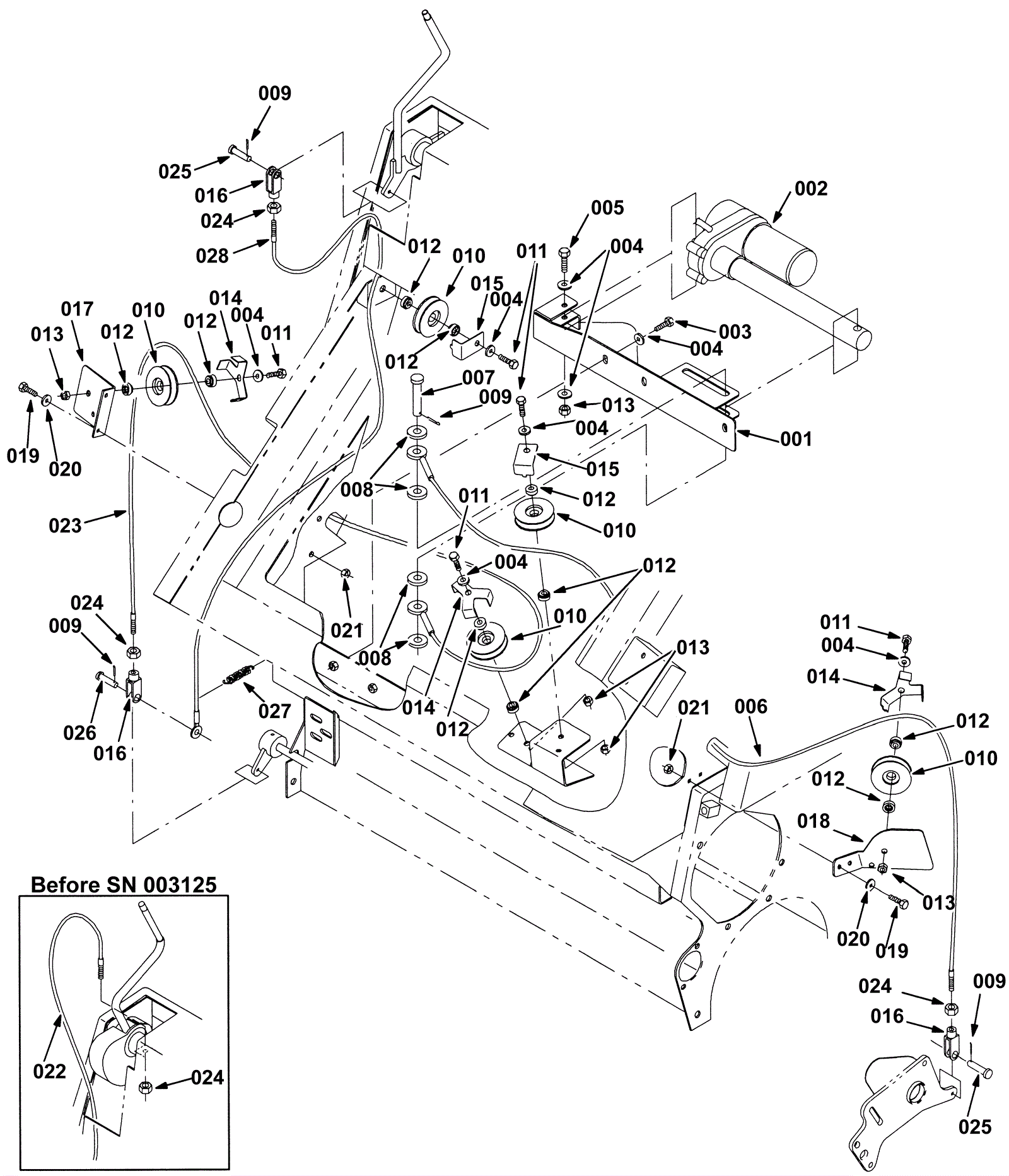

Sweeper Main Brush Lift Assembly

#PartDescription ReqNotesAvailability
001a 275-8395 BRACKET WLDT, ACTUATOR (Tennant Industrial) 1 (before SN 007000)
001b 275-2479 Actuator bracket weldment (gray) (Tennant Industrial) 1 (after SN 006999)
002 175-3313 Actuator 1
003 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 3
004 999-0024 Washer 5/16 flat stainless steel 10
005 999-0309 Bolt M8-1.25 x 50mm hex head part thread zinc 1
006 275-8407 CABLE, GLV .13D 035.2L .50EYE /.25-28 (Tennant Industrial) 1
007 275-3047 PIN, CLEVIS, 0.50D X 2.62L (Tennant Industrial) 1
008 999-0114 Washer 1/2 SAE flat 4
009 175-4986 Cotter pin 4
010 275-8408 SHEAVE, IDLER, 015MMID, 2.44PD (Tennant Industrial) 5
011 175-3436 Bolt 8mm-1.25 x 40mm hex head 5
012 275-8409 SPACER, IDLER .25 LG (Tennant Industrial) 10
013 999-0471 Nut M8-1.25 nylon insert lock zinc plated 5
014 275-8410 ANGLE, KEEPER, CABLE (Tennant Industrial) 3
015 275-8411 ANGLE, KEEPER, CABLE (Tennant Industrial) 2
016 275-8412 CLEVIS, ADJ, 0.25PIN, 0.25-28 RH, PL (Tennant Industrial) 3
017a 275-9073 Angle (OBSOLETE) 1 (before SN 007000)
017b 275-2480 Angle (Tennant Industrial) 1 (after SN 006999)
018a 275-8414 ANGLE (Tennant Industrial) (OBSOLETE) 1 (before SN 007000)
018b 275-2481 Angle (Tennant Industrial) 1 (after SN 006999)
019 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 4
020 N/A Not available 4 Adjustment clevis
021 999-0439 Nut M6-1 hex coarse thread 4
022 275-8419 CABLE, GLV .13D 053.0L .25EYE /.25-28 (Tennant Industrial) 1 (before SN 003125)
023 275-8416 CABLE, GLV .13D 054.6L .50EYE /.25-28 (Tennant Industrial) 1
024 999-0651 Nut 1/4-28 hex stainless steel 4
025 175-9987 Clevis pin 1/4 x 3/4 2
026 275-8417 PIN, CLEVIS, 0.25D X 1.00L (Tennant Industrial) 1
027 175-2064 Extension spring 1
028 275-8418 CABLE, GLV .13D 041.5L .25EYE /.25-28 (Tennant Industrial) 1 (after SN 003124)
