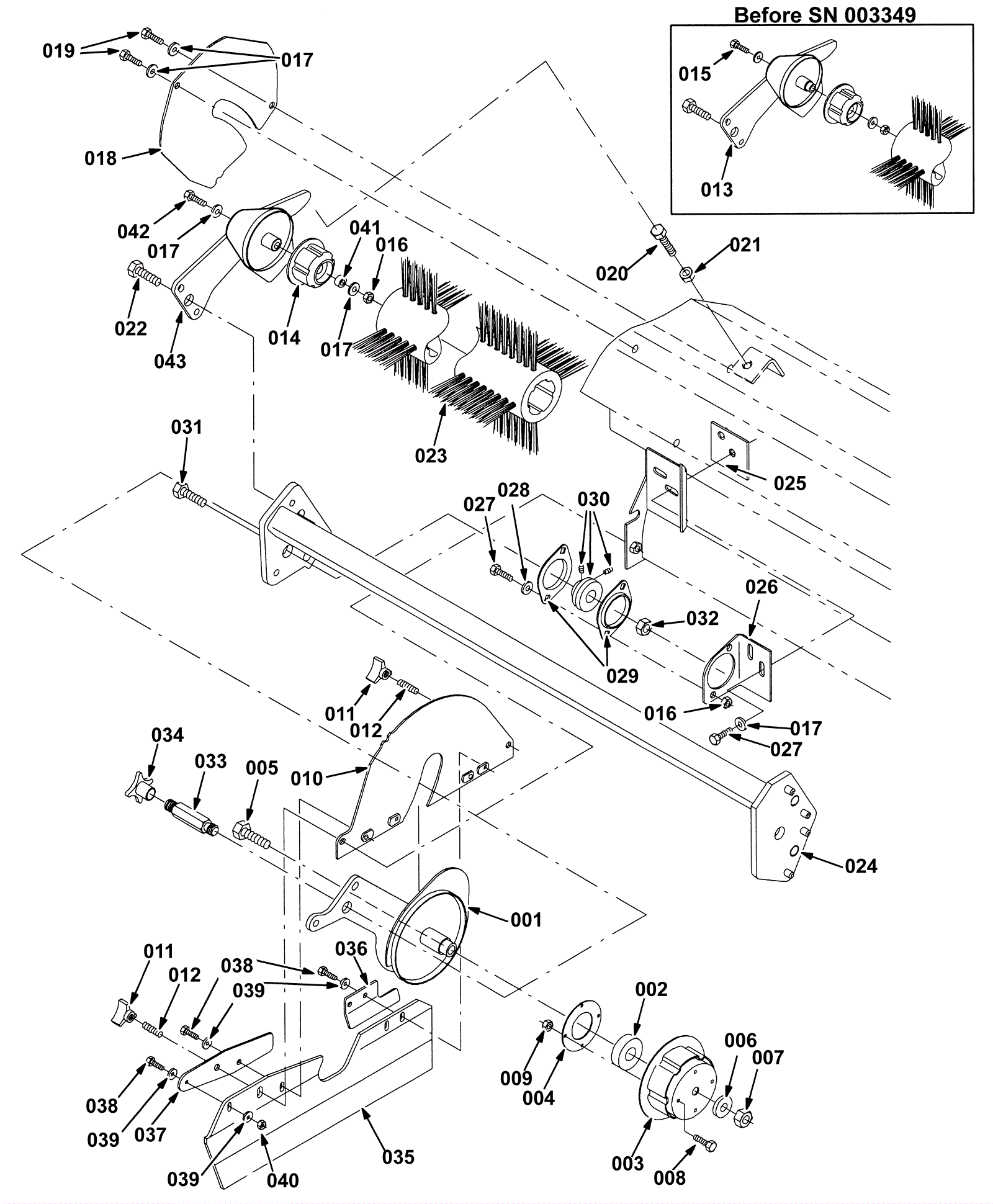

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-2406
|
Brush idler arm weldment (gray) (Tennant Industrial) |
1 |
|
|
002 |
175-9072
|
Ball bearing |
1 |
|
|
003 |
275-6556
|
Brush drive plug (Tennant Industrial) |
1 |
|
|
004 |
275-6557
|
Bearing retainer (Tennant Industrial) |
1 |
|
|
005 |
275-0463
|
Screw M12-1.75 x 120mm hex head |
1 |
|
|
006 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
007 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
008 |
175-0852
|
Bolt 5mm-.8 x 12 hex head |
4 |
|
|
009 |
175-2894
|
Nut M5-.8 hex nylon locking |
4 |
|
|
010 |
275-2417
|
Brush door plate (gray) (Tennant Industrial) |
1 |
|
|
011 |
175-2525
|
Knob |
2 |
|
|
012 |
175-2524
|
Plated stud |
2 |
|
|
013 |
275-2431
|
Brush arm weldment (Tennant Industrial) |
1 |
(before SN 003349) |
|
014 |
175-2478
|
Brush idler plug |
1 |
|
|
015 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
1 |
(before SN 003349) |
|
016 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
017 |
999-0024
|
Washer 5/16 flat stainless steel |
16 |
|
|
018 |
275-2473
|
Brush door (gray) (Tennant Industrial) |
1 |
|
|
019 |
175-0591
|
Bolt M8-1.25 x 12mm hex head |
2 |
|
|
020 |
999-1408
|
Screw M10-1.5 x 90mm hex head stainless steel |
1 |
|
|
021 |
275-0332
|
NUT, HEX, STD, M10 X 1.50, SS |
1 |
|
|
022 |
275-8386
|
SCREW, HEX, M16 X 2.00 X 20, 8.8 (Tennant Industrial) |
1 |
|
|
023 |
275-8397
|
BRUSH, SWP, 35L, 04SR, PYP, SPL (Tennant Industrial) |
1 |
|
|
024 |
275-2474
|
Brush tube weldment (gray) (Tennant Industrial) |
1 |
|
|
025 |
275-2475
|
Nut plate (gray) (Tennant Industrial) |
1 |
|
|
026 |
275-2476
|
Mounting bracket (gray) (Tennant Industrial) |
1 |
|
|
027 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
5 |
|
|
028 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
029 |
275-0491
|
Bearing flange 1.91id 2h |
2 |
|
|
030 |
275-0492
|
Bearing with collar 3/4b 1.85d 1.06w |
1 |
|
|
031 |
175-3258
|
Bolt M10-1.5 x 35mm hex head |
1 |
|
|
032 |
999-0767
|
Nut M10-1.5 hex coarse thread |
1 |
|
|
033 |
275-8401
|
SHAFT, THRD (Tennant Industrial) |
1 |
|
|
034 |
275-8402
|
KNOB, STAR, 2.50D 5EAR 1.5L .62-18,PLSTC (Tennant Industria |
1 |
|
|
035 |
275-8403
|
SKIRT ASSY, .25, 03.75W 17.87L, 05/ SL (Tennant Industrial) |
1 |
|
|
036 |
275-2477
|
Right side retainer (gray) (Tennant Industrial) |
1 |
|
|
037 |
275-7999
|
Skirt retainer (gray) (Tennant Industrial) |
1 |
|
|
038 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
|
039 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
5 |
|
|
040 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
041 |
275-8405
|
TUBE, 0.32ID 0.59OD 00.3L, SS (Tennant Industrial) |
1 |
(after SN 003348) |
|
042 |
275-0444
|
SCREW, HEX, M8 X 1.25 X 90, 8.8 (Tennant Industrial) |
1 |
(after SN 003348) |
|
043 |
275-2478
|
Brush idler arm weldment (gray) (Tennant Industrial) |
1 |
(after SN 003348) |
|
