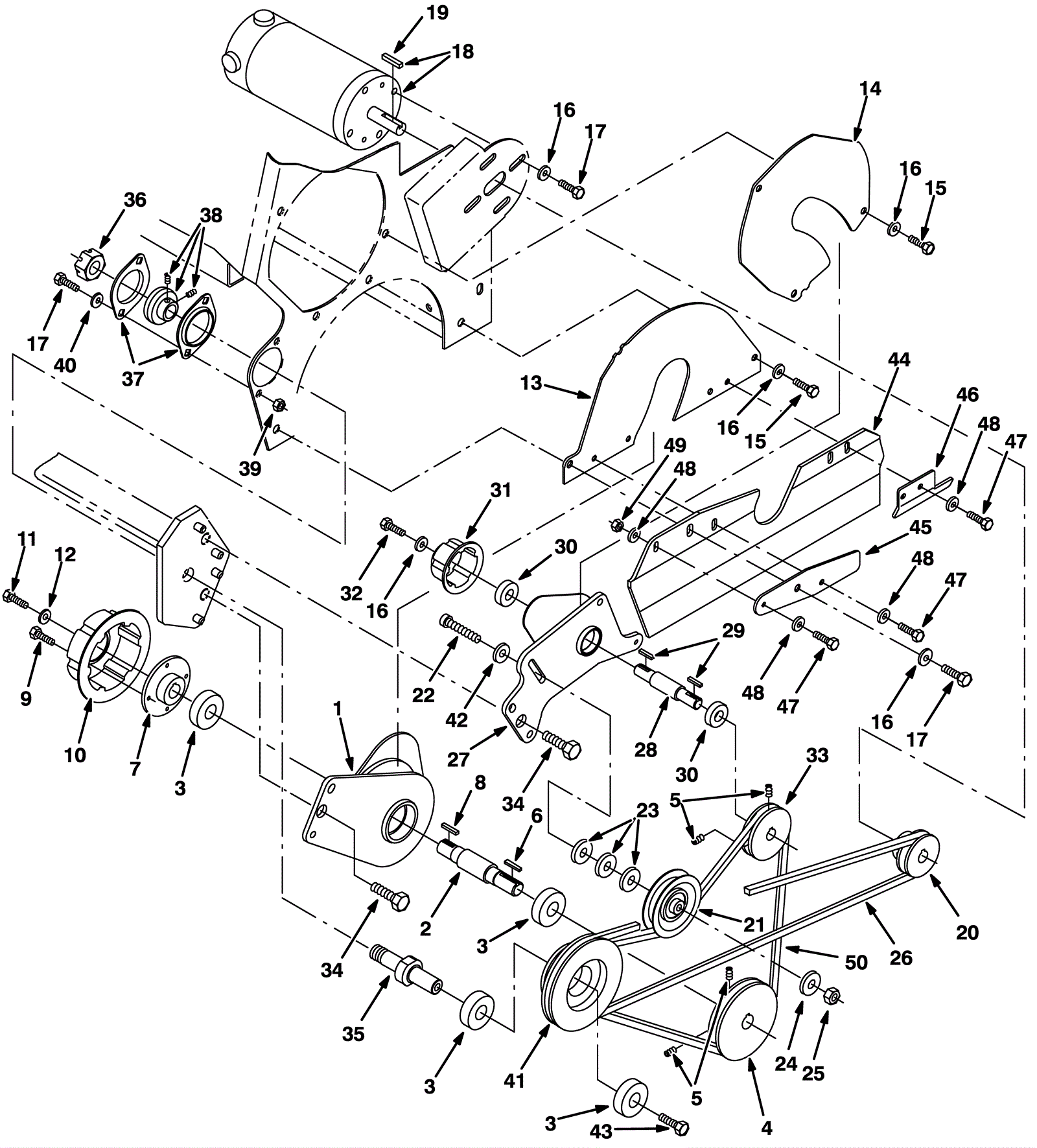

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7990
|
Drive brush arm weldment (gray) (Tennant Industrial) |
1 |
|
|
2 |
275-7991
|
Drive brush shaft (Tennant Industrial) |
1 |
|
|
3 |
175-9072
|
Ball bearing |
4 |
|
|
4 |
275-7992
|
Sheave (gray) (Tennant Industrial) |
1 |
|
|
5 |
175-9339
|
Screw M6-1 x 8mm set socket |
4 |
|
|
6 |
175-3200
|
Square keyway |
2 |
|
|
7 |
275-7993
|
Drive brush hub weldment (gray) (Tennant Industrial) |
1 |
|
|
8 |
175-8818
|
Square keyway |
1 |
|
|
9 |
175-0852
|
Bolt 5mm-.8 x 12 hex head |
4 |
|
|
10 |
275-7994
|
Drive brush plug (gray) (Tennant Industrial) |
1 |
|
|
11 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
12 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
13 |
275-7995
|
Brush door plate (gray) (Tennant Industrial) |
1 |
|
|
14 |
275-7996
|
Brush door (gray) (Tennant Industrial) |
1 |
|
|
15 |
175-0591
|
Bolt M8-1.25 x 12mm hex head |
4 |
|
|
16 |
999-0024
|
Washer 5/16 flat stainless steel |
10 |
|
|
17 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
7 |
|
|
18 |
275-9049
|
Electric motor |
1 |
(includes 19) |
|
19 |
175-3200
|
Square keyway |
1 |
|
|
20 |
275-7997
|
Sheave (gray) (Tennant Industrial) |
1 |
|
|
21 |
275-0474
|
Flat sheave |
1 |
|
|
22 |
175-9093
|
Bolt 3/8-16 x 2 cariage |
1 |
|
|
23 |
999-0032
|
Washer 3/8 USS flat plain finish |
3 |
|
|
24 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
25 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
|
26 |
275-8274
|
BELT, V, 41.0L [HC41] (Tennant Industrial) |
2 |
|
|
27 |
275-7998
|
Drive brush arm weldment (gray) (Tennant Industrial) |
1 |
|
|
28 |
275-8383
|
SHAFT, DRIVE, BRUSH (Tennant Industrial) |
1 |
|
|
29 |
275-8384
|
KEY, SQ, 0.19 X 0.19, 0.62L (Tennant Industrial) |
2 |
|
|
30 |
175-2471
|
Ball bearing |
2 |
|
|
31 |
175-8819
|
Drive plug |
1 |
|
|
32 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
33 |
275-8385
|
SHEAVE, 01GRV, 03.8PD 0.68B [3V] (Tennant Industrial) |
1 |
|
|
34 |
275-8386
|
SCREW, HEX, M16 X 2.00 X 20, 8.8 (Tennant Industrial) |
2 |
|
|
35 |
275-8387
|
SHAFT, IDLER, DRIVE, BRUSH (Tennant Industrial) |
1 |
|
|
36 |
275-4066
|
NUT, HEX, SLTD, .75-16 (Tennant Industrial) |
1 |
|
|
37 |
275-0491
|
Bearing flange 1.91id 2h |
2 |
|
|
38 |
275-0492
|
Bearing with collar 3/4b 1.85d 1.06w |
1 |
|
|
39 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
40 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
41 |
275-8388
|
SHEAVE, 02GRV, 4.9/3.2PD 1.85B [HC41] (Tennant Industrial) |
1 |
|
|
42 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
43 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
|
44 |
275-8389
|
SKIRT, LH, 05/ SL (Tennant Industrial) |
1 |
|
|
45 |
275-7999
|
Skirt retainer (gray) (Tennant Industrial) |
1 |
|
|
46 |
275-8004
|
Skirt retainer (gray) (Tennant Industrial) |
1 |
|
|
47 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
|
48 |
999-0016
|
Washer 1/4 flat plain finish |
5 |
|
|
49 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
50 |
275-8392
|
BELT, V, 35.5L [3V, 3VX] (Tennant Industrial) |
1 |
|
|
