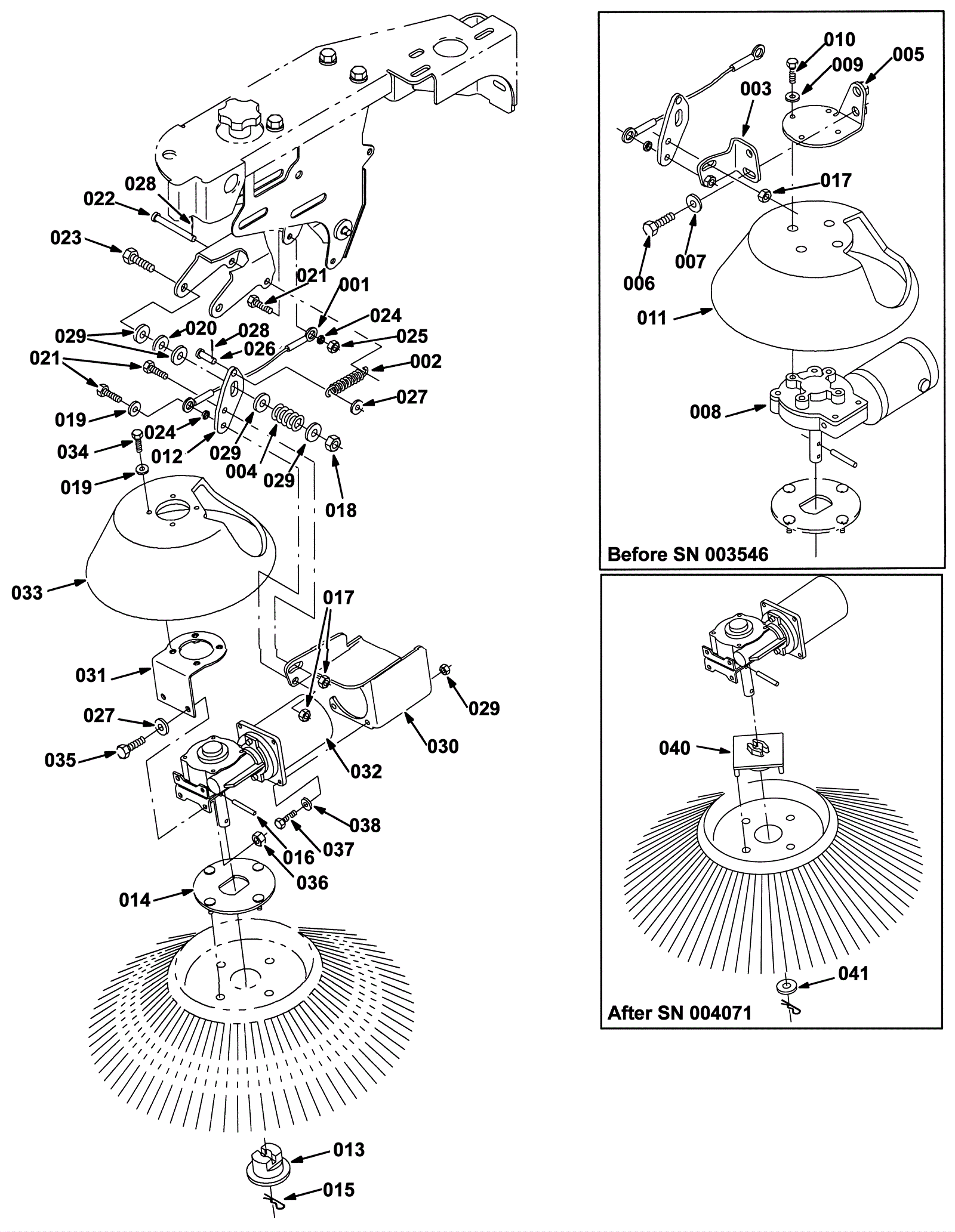

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-0833
|
Cable |
1 |
|
|
002 |
275-0154
|
SPRING, EXTN, 1.10OD 0.15WIR 03.2L (Tennant Industrial) |
1 |
|
|
003 |
275-7978
|
Iron motor mounting bracket (gray) (Tennant Industrial) |
2 |
(before SN 003546) |
|
004 |
275-0157
|
SPRING, DSL, 1.00OD 0.50ID 1.25L (Tennant Industrial) |
2 |
|
|
005 |
275-7979
|
Iron motor mounting bracket (gray) (Tennant Industrial) |
1 |
(before SN 003546) |
|
006 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
(before SN 003546) |
|
007 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
(before SN 003546) |
|
008a |
275-0108
|
36V sidebrush motor |
1 |
(before SN 003546) (includes 008b-008e) |
|
008b |
275-0109
|
Carbon brush assembly |
1 |
(before SN 003546) |
|
008c |
175-9270
|
Brush cap |
2 |
(before SN 003546) |
|
008d |
175-9271
|
Brush holder |
2 |
(before SN 003546) |
|
008e |
175-9272
|
Clip |
2 |
(before SN 003546) |
|
009 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
(before SN 003546) |
|
010 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
(before SN 003546) |
|
011 |
275-8358
|
GUARD, BRUSH, SIDE, 10.5D 3.8H (Tennant Industrial) |
1 |
(before SN 003546) |
|
012 |
275-7980
|
Iron plate (gray) (Tennant Industrial) |
1 |
|
|
013 |
275-8360
|
HUB, ADAPTER, BRUSH, 1.7D 0.6B 1.4L (Tennant Industrial) |
1 |
(before SN 004072) |
|
014 |
275-8361
|
PLATE, ADAPTER, BRUSH (Tennant Industrial) |
1 |
(before SN 004072) |
|
015 |
175-2106
|
Cotter hair pin |
1 |
|
|
016 |
275-1660
|
PIN, ROLL, .250D X 2.00L, .250/.256 (Tennant Industrial) |
1 |
|
|
017 |
999-0665
|
Nut M8-1.25 flange lock |
2 |
|
|
018 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
019 |
999-0024
|
Washer 5/16 flat stainless steel |
5 |
|
|
020 |
175-3354
|
Thrust washer |
1 |
|
|
021 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
3 |
|
|
022 |
275-8362
|
PIN, CLEVIS, 0.37D X 3.25L (Tennant Industrial) |
1 |
|
|
023 |
999-1280
|
Screw M12-1.75 x 80mm hex |
1 |
|
|
024 |
175-0550
|
Sleeve |
2 |
|
|
025 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
026 |
175-9085
|
PIN, CLEVIS, 0.37D X 0.62L (Tennant Industrial) |
1 |
|
|
027 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
028 |
175-6176
|
Cotter pin |
2 |
|
|
029 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
030 |
275-7981
|
Motor mounting bracket weldment (gray) (Tennant Industrial) |
1 |
(after SN 003545) |
|
031 |
275-7982
|
Side brush mounting weldment (gray) (Tennant Industrial) |
1 |
(after SN 003545) |
|
032 |
275-8366
|
MOTOR, ELE, 36VDC 0075RPM 0.16HP GEAR (Tennant Industrial) |
1 |
(after SN 003545) |
|
033 |
275-8367
|
GUARD, BRUSH, SIDE [8300] (Tennant Industrial) |
1 |
(after SN 003545) |
|
034 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
(after SN 003545) |
|
035 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
(after SN 003545) |
|
036 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
(after SN 003545) |
|
037 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
(after SN 003545) |
|
038 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
(after SN 003545) |
|
039 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
3 |
(after SN 003545) |
|
040 |
275-7983
|
Brush adapter plate (Tennant Industrial) |
1 |
(after SN 004071) |
|
041 |
275-7984
|
Washer (Tennant Industrial) (OBSOLETE) |
1 |
(after SN 004071) |
|
