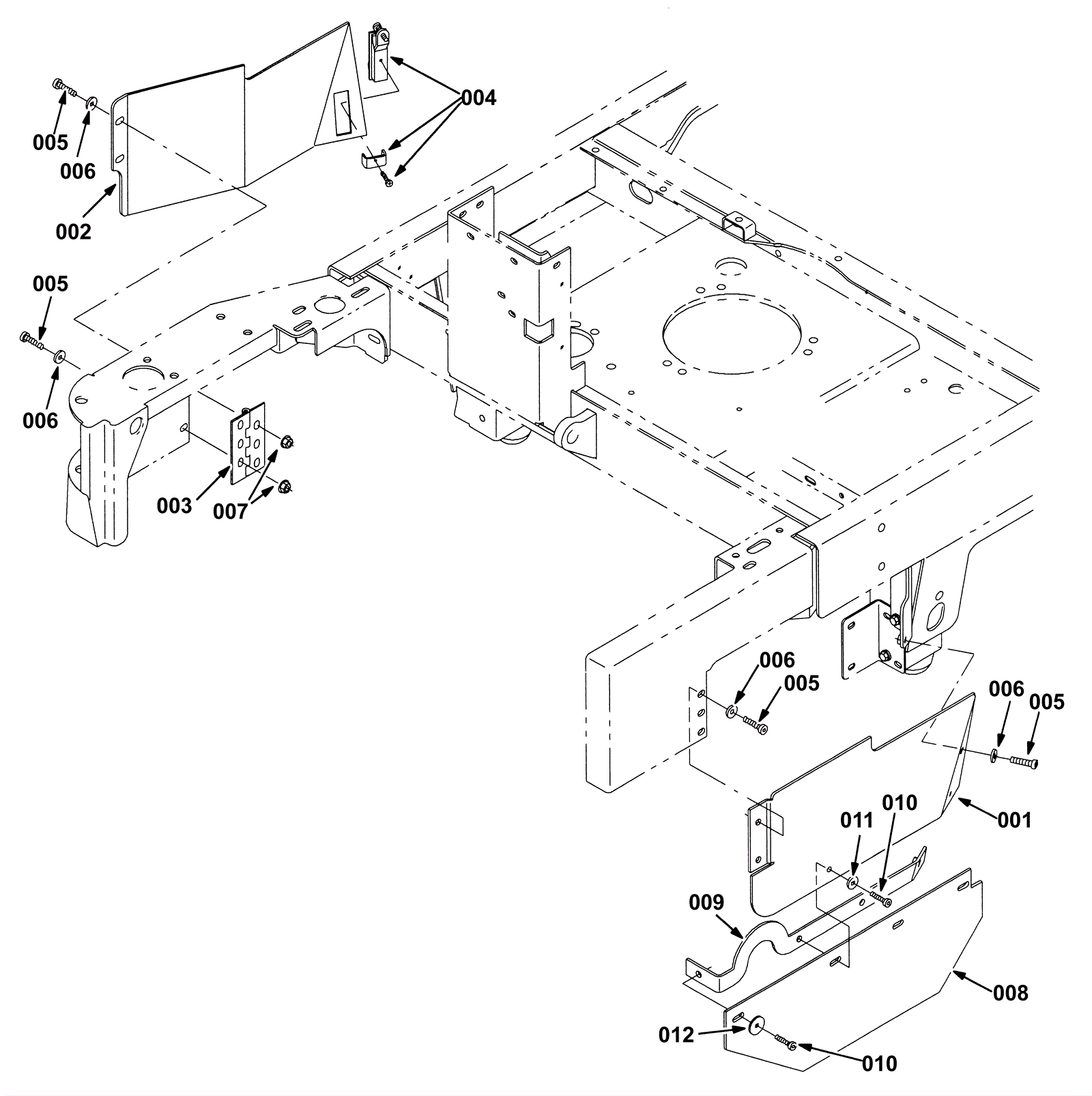

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
275-8351
|
DOOR, BRUSH, LH (Tennant Industrial) |
1 |
(before SN 007000) |
|
001b |
275-7975
|
Left hand iron brush door (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
002a |
275-8352
|
DOOR, BRUSH, RH (Tennant Industrial) |
1 |
(before SN 007000) |
|
002b |
275-7976
|
Right hand iron brush door (gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
003 |
275-8353
|
HINGE, .25PIN .25 3.0W 05.0L, 6/0.44H (Tennant Industrial) |
1 |
|
|
004 |
175-0541
|
LATCH, TRIGGER (Tennant Industrial) |
1 |
|
|
005 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
8 |
|
|
006 |
999-0024
|
Washer 5/16 flat stainless steel |
8 |
|
|
007 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
7 |
|
|
008 |
275-8354
|
SKIRT, NEO, .18, 04.25W 23.53L, 04/ SL (Tennant Industrial) |
1 |
|
|
009 |
275-7977
|
Iron strip (gray) (Tennant Industrial) |
1 |
|
|
010 |
275-0443
|
Screw M8-1.25 x 25 button head stainless steel |
4 |
|
|
011 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
|
012 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
