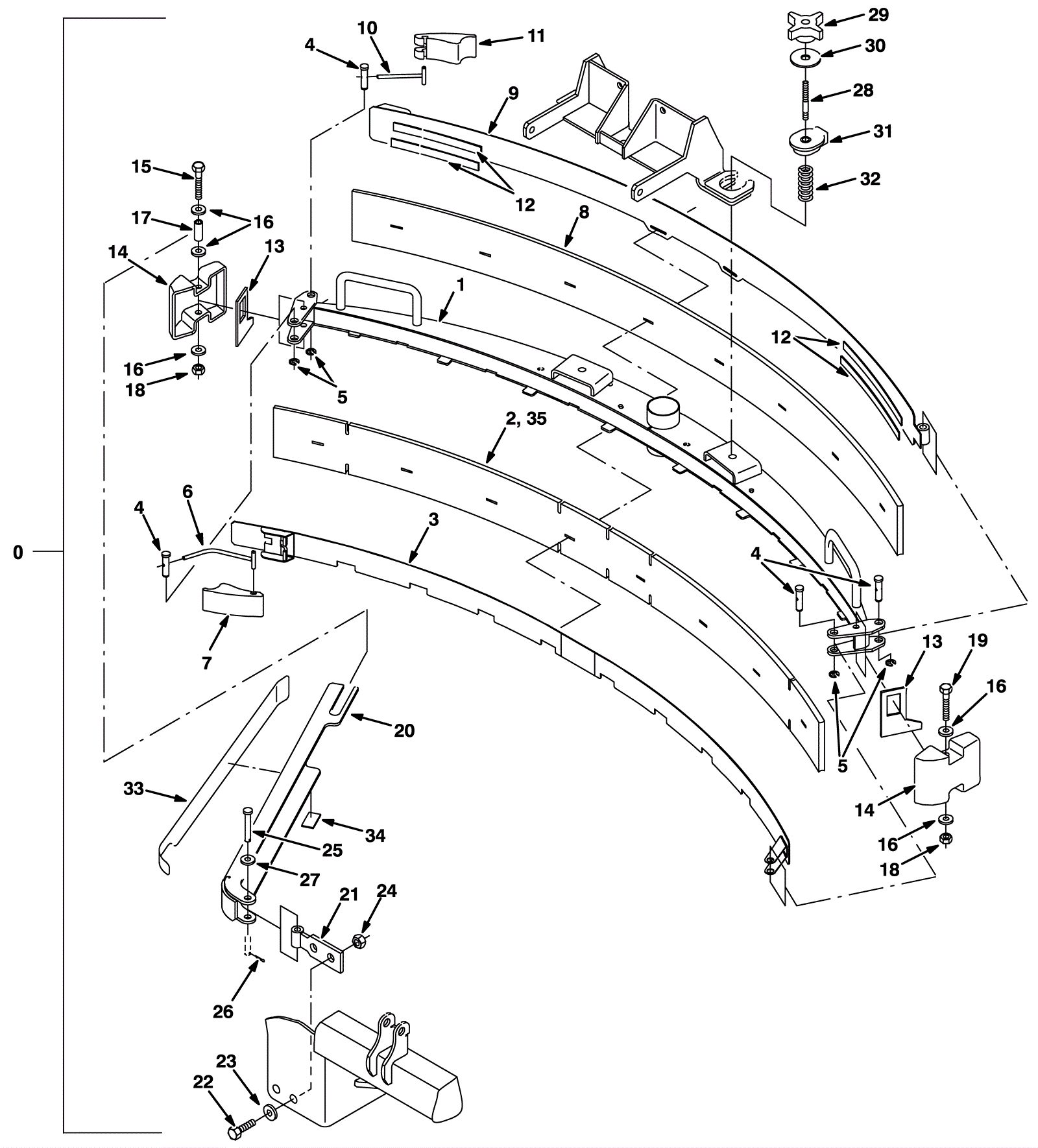

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0a |
175-0809
|
SQUEEGEE ASSY KIT, REAR, CI [MP1000] (Tennant Industrial) |
$2,139.27
|
1 |
(before SN 007000) (includes 1-20a, 21a, and 22-34) |
usually ships 5-16 days |
0b |
275-9344
|
Rear squeegee kit assembly (Tennant Industrial) |
$2,048.09
|
1 |
(after SN 006999) (includes 1-19, 20b, 21b, and 22-34) |
usually ships 1-5 days |
1 |
275-7973
|
Iron squeegee frame weldment (gray) (Tennant Industrial) |
$1,009.52
|
1 |
|
usually ships 1-5 days |
2 |
175-0811
|
BLADE, SQGE, FRONT, 49.00L linatex (Tennant Industrial) |
$143.45
|
1 |
|
usually ships 5-16 days |
3 |
175-0812
|
CLAMP WLDT, FRONT (Tennant Industrial) |
$115.23
|
1 |
|
usually ships 5-16 days |
4 |
175-0813
|
PIN, GRVD, 0.43D 01.8L [303SS] (Tennant Industrial) |
$25.05
|
4 |
|
usually ships 5-16 days |
5 |
175-0814
|
Retaining ring (Tennant Industrial) |
$3.51
|
4 |
|
usually ships 5-16 days |
6 |
175-0815
|
PIN WLDT, FRONT (Tennant Industrial) |
$59.62
|
1 |
|
usually ships 5-16 days |
7 |
375-4391
|
Front cam (yellow) (Tennant Industrial) |
$19.71
|
1 |
|
ships same day |
8 |
175-0816
|
BLADE, SQGE, REAR, 51.38L linatex (Tennant Industrial) |
$169.84
|
1 |
|
usually ships 5-16 days |
9 |
175-0817
|
CLAMP WLDT, REAR (Tennant Industrial) |
$115.23
|
1 |
|
usually ships 5-16 days |
10 |
175-0818
|
BAR WLDT, RETAINER, SQGE, REAR (Tennant Industrial) |
$77.32
|
1 |
|
usually ships 5-16 days |
11 |
175-0819
|
CAM, REAR (Tennant Industrial) |
$11.36
|
1 |
|
usually ships 5-16 days |
12 |
175-0820
|
STRIP, NON SLIP, 0.50W 06.0L (Tennant Industrial) |
$5.01
|
4 |
|
usually ships 5-16 days |
13 |
175-0821
|
GASKET, SQGE (Tennant Industrial) |
$17.37
|
2 |
|
usually ships 5-16 days |
14 |
175-3484
|
BUMPER, SQGE (Tennant Industrial) |
$38.24
|
2 |
|
usually ships 5-16 days |
15 |
175-0822
|
SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) |
$7.52
|
1 |
|
usually ships 5-16 days |
16 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
5 |
|
ships same day |
17 |
175-2207
|
Sleeve |
$4.90
|
1 |
|
ships same day |
18 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
$1.08
|
2 |
|
ships same day |
19 |
999-0909
|
Bolt M8-1.25 x 70mm hex head stainless steel |
$3.83
|
1 |
|
ships same day |
20a |
175-0823
|
CHANNEL WLDT, GUARD, RH (Tennant Industrial) |
$216.60
|
1 |
(before SN 007000) |
usually ships 1-5 days |
20b |
275-9345
|
Channel weldment (iron gray) (Tennant Industrial) |
$243.82
|
1 |
(after SN 006999) |
usually ships 1-5 days |
21a |
175-0824
|
PLATE WLDT, PIVOT, GUARD (Tennant Industrial) |
$58.28
|
1 |
(before SN 007000) |
usually ships 1-5 days |
21b |
275-9346
|
Guard pivot plate weldment (iron gray) (Tennant Industrial) |
$52.94
|
1 |
(after SN 006999) |
usually ships 1-5 days |
22 |
999-6696
|
Bolt M12-1.75 x 30mm stainless steel hex cap screw |
$5.19
|
2 |
|
ships same day |
23 |
999-0114
|
Washer 1/2 SAE flat |
$0.99
|
2 |
|
ships same day |
24 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
$2.12
|
2 |
|
ships same day |
25 |
275-7974
|
Clevis pin 1/4 x 2 (Tennant Industrial) |
$24.05
|
1 |
|
usually ships 5-16 days |
26 |
175-2361
|
Cotter pin |
$2.20
|
1 |
|
ships same day |
27 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
28 |
175-0828
|
Stud 5/16-18 (Tennant Industrial) |
$29.06
|
2 |
|
ships same day |
29 |
175-2208
|
Plastic star knob |
$3.60
|
2 |
|
ships same day |
30 |
175-3470
|
Washer .53b 1.88d .12 steel plated |
$3.60
|
2 |
|
ships same day |
31 |
175-0829
|
RING, MTG, SQGE, .50L (Tennant Industrial) |
$31.56
|
2 |
|
ships same day |
32 |
175-0830
|
SPRING, CMPR, 0.90OD .04WIR 02.0L (Tennant Industrial) |
$5.01
|
2 |
|
ships same day |
33 |
175-0831
|
STRIP, BMPR, PYE, .06 1.75W 22.0L (Tennant Industrial) |
$90.85
|
1 |
|
usually ships 1-5 days |
34 |
175-0832
|
STRIP, BMPR, PYE, .06 0.75W 01.5L (Tennant Industrial) |
$27.89
|
1 |
|
usually ships 1-5 days |
35 |
175-0833
|
BLADE, SQGE, FRONT, TILE, 49.00L linatex (Tennant Industria |
$169.00
|
1 |
|
usually ships 5-16 days |
