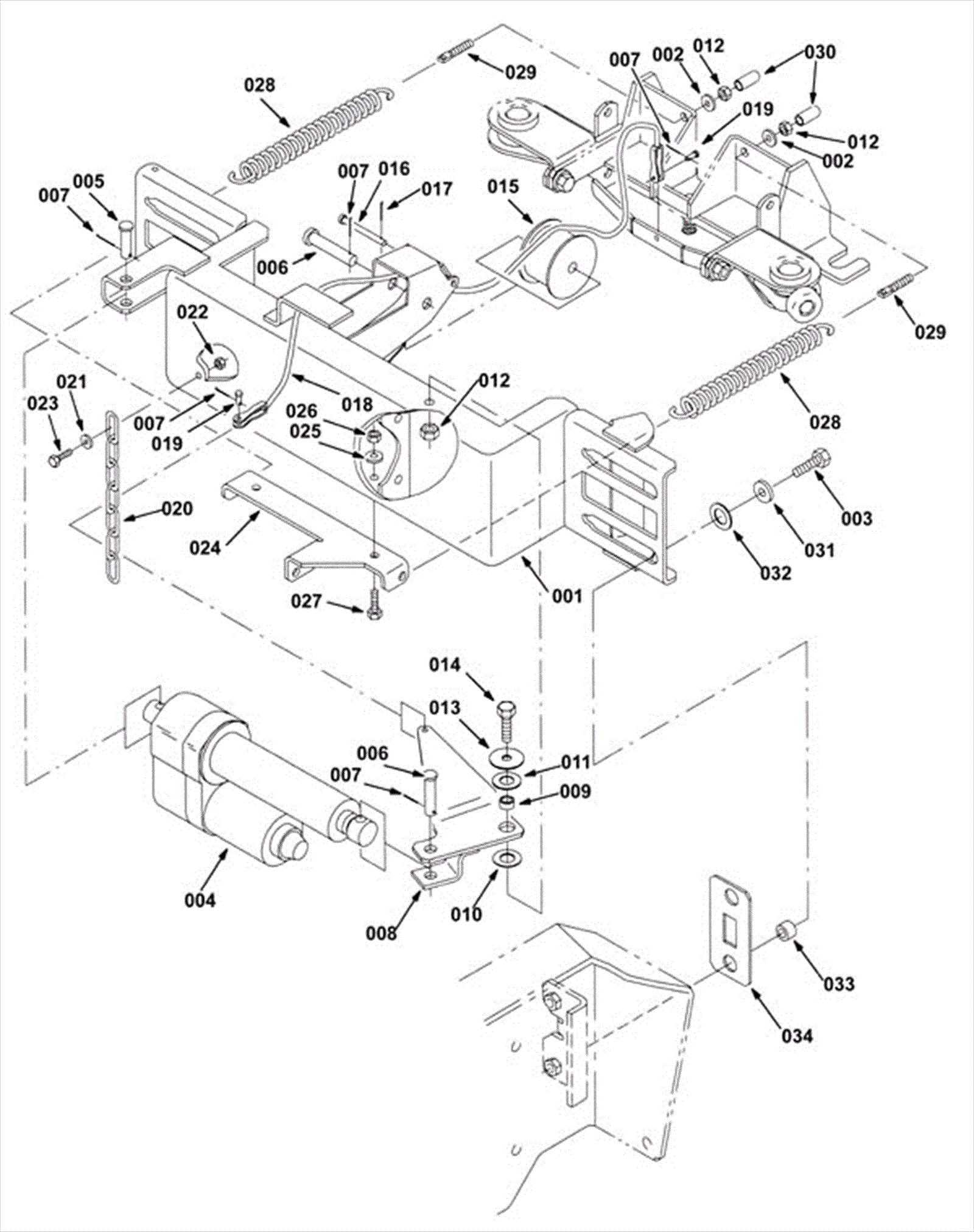

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
175-0793
|
SUPPORT WLDT (Tennant Industrial) |
1 |
(before SN 007000) |
|
001b |
275-9341
|
Support weldment (iron gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
002 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
003 |
999-0774
|
Bolt M10-1.5 x 30mm hex head stainless steel full thread |
4 |
|
|
004 |
175-0794
|
ACTUATOR, 36VDC, 02.1STRK, 500LB (Tennant Industrial) |
1 |
|
|
005 |
175-2382
|
Clevis pin |
1 |
|
|
006 |
175-0716
|
Clevis pin |
2 |
|
|
007 |
175-6176
|
Cotter pin |
5 |
|
|
008 |
175-0795
|
ARM WLDT (Tennant Industrial) |
1 |
|
|
009 |
175-0796
|
Sleeve |
1 |
|
|
010 |
175-3347
|
Washer .61 thrust |
1 |
|
|
011 |
175-0784
|
Thrust bearing |
1 |
|
|
012 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
3 |
|
|
013 |
175-0797
|
Washer flat |
1 |
|
|
014 |
175-0792
|
Bolt M10-1.5 x 60mm hex head stainless steel |
1 |
|
|
015 |
175-0798
|
DRUM, CABLE, LIFT (Tennant Industrial) |
1 |
|
|
016 |
175-0799
|
PIN, CLEVIS, 0.25D X 2.44L (Tennant Industrial) |
1 |
|
|
017 |
175-2361
|
Cotter pin |
1 |
|
|
018 |
175-0800
|
CABLE, SS .12D 013.3L .2CLEVIS /.2CLEVIS (Tennant Industria |
1 |
|
|
019 |
175-0801
|
Clevis pin |
2 |
|
|
020 |
175-2094
|
Chain |
1 |
|
|
021 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
022 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
023 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
24a |
175-0802
|
BRACKET, SPRING (Tennant Industrial) |
1 |
(before SN 007000) |
|
24b |
275-9342
|
Spring bracket (iron gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
25 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
26 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
27 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
28 |
175-0803
|
SPRING, EXTN, 1.69OD 0.20WIR 09.5L (Tennant Industrial) |
2 |
|
|
29 |
175-0804
|
BOLT, EYE, M10 X 1.50 X 064MM, 07.10 EYE (Tennant Industria |
2 |
|
|
30 |
175-0805
|
CAP, RBR, 0.38ID 1.25L BLK (Tennant Industrial) |
2 |
|
|
31 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
32 |
175-0806
|
WASHER, THRUST, 0.75B 1.25D 0.06W (Tennant Industrial) |
4 |
|
|
33 |
N/A
|
Not available |
4 |
|
|
34 |
175-0808
|
PLATE, SLIDE (Tennant Industrial) |
2 |
|
|
