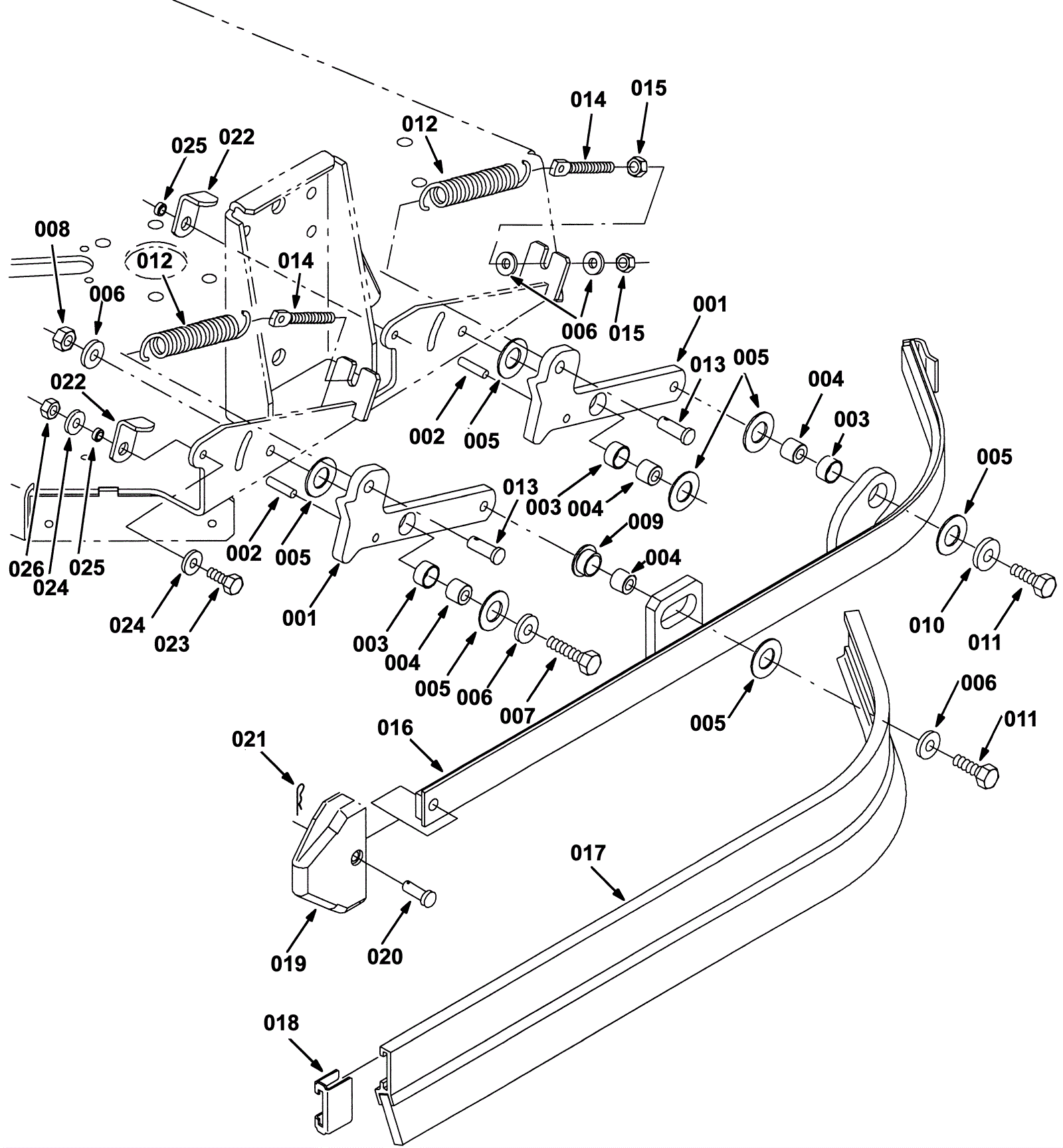

8300 Max Pro 1000 Left Side Squeegee Assembly - Disc

#PartDescriptionPriceReqNotesAvailability
001 175-0771 Squeegee side arm frame weldment (gray) (Tennant Industrial $70.31 2 usually ships 5-16 days
002 175-0768 PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) $4.84 2 usually ships 1-5 days
003 175-3349 Sleeved bushing $11.20 3 ships same day
004 175-0769 SLEEVE, P/M, 0.34B 0.63D 0.5L [316SS] (Tennant Industrial) $7.01 4 usually ships 1-5 days
005 175-3347 Washer .61 thrust $4.40 7 ships same day
006 999-9097 Washer M8 flat stainless steel $0.99 7 ships same day
007 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
008 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
009 175-3460 Flanged bushing $9.60 1 usually ships 5-16 days
010 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
011 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
012 175-0770 Extension spring $4.50 2 usually ships 5-16 days
013 202-3501 Ring pin $14.70 2 usually ships 3-11 days
014 175-0772 BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial $36.57 2 usually ships 1-5 days
015 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 usually ships 11-24 days
016 175-0778 FRAME WLDT, SQGE, SIDE, LH (Tennant Industrial) $370.41 1 usually ships 5-16 days
017 175-2969 BLADE ASSY, SQGE, 28.6L (Tennant Industrial) $96.69 1 usually ships 5-16 days
018 175-3357 Squeegee blade retainer $10.00 1 ships same day
019 175-0774 GUIDE, POINT, SQGE, SIDE (Tennant Industrial) $56.95 1 usually ships 5-16 days
020 175-0775 Clevis pin (Tennant Industrial) $6.01 1 usually ships 5-16 days
021 175-2113 Cotter pin $2.20 1 ships same day
022 175-0776 BRACKET, LATCH, DBL SCB, SQGE, SIDE (Tennant Industrial) $13.86 2 usually ships 1-5 days
023 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
024 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
025 175-0777 P/M sleeve $4.40 2 usually ships 5-16 days
026 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
