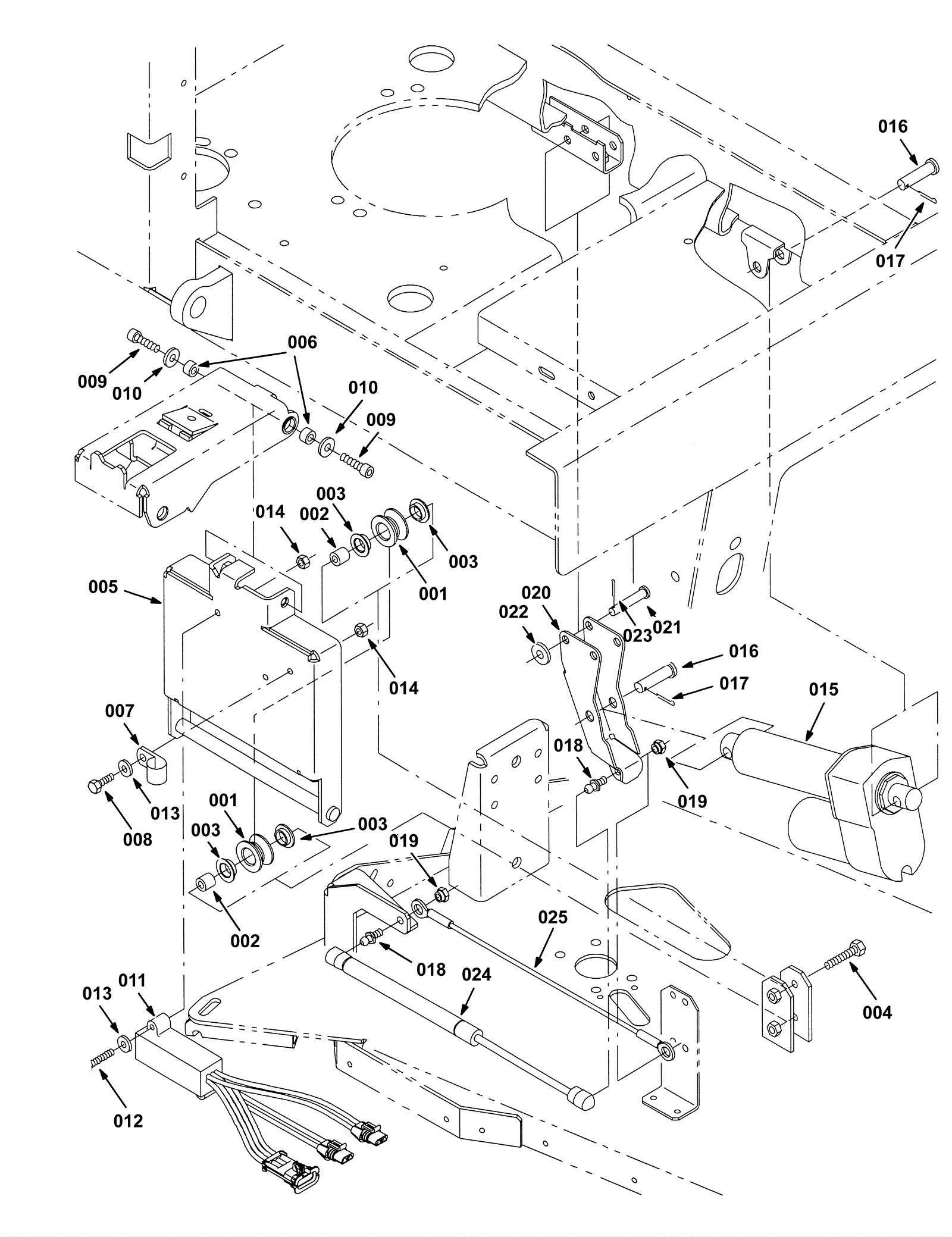

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-0753
|
ROLLER, V-GROOVE, 1.5D 0.72B 0.8L [STL] (Tennant Industrial |
2 |
|
|
002 |
175-2563
|
Sleeve |
2 |
|
|
003 |
175-2099
|
Flanged bushing |
4 |
|
|
004 |
175-2854
|
Screw M8-1.25 x 45mm hex head stainless steel |
2 |
|
|
005 |
275-9321
|
Disk head lift rail weldment (iron gray) (Tennant Industria |
1 |
|
|
006 |
175-0755
|
Sleeve |
2 |
|
|
007 |
175-3168
|
P clamp |
1 |
|
|
008 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
009 |
175-0602
|
Screw M8-1.25 x 25mm socket |
2 |
|
|
010 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
011a |
175-0756
|
SHUNT, 2 STD MOTOR, BLK [SCB 515] (Tennant Industrial) |
1 |
(for standard motor) |
|
011b |
175-0757
|
SHUNT, 2 HD MOTOR, RED [SCB 515] (Tennant Industrial) |
1 |
(for heavy duty motor) |
|
012 |
175-0758
|
Bolt M6-1 x 40mm hex head stainless steel |
2 |
|
|
013 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
014 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
015 |
175-0759
|
ACTUATOR, 36VDC, 02.7STRK, 500LB (Tennant Industrial) |
1 |
|
|
016 |
175-2382
|
Clevis pin |
2 |
|
|
017 |
175-3281
|
Cotter pin |
2 |
|
|
018 |
175-0761
|
Gas spring ball stud |
2 |
|
|
019 |
175-0762
|
NUT, RETAINER, .31-18 (Tennant Industrial) |
2 |
|
|
020 |
275-9322
|
Side pivot arm weldment (gray) (Tennant Industrial) |
1 |
|
|
021 |
173-1595
|
Clevis pin |
1 |
|
|
022 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
023 |
175-6176
|
Cotter pin |
1 |
|
|
024 |
175-0765
|
Gas spring, 56lb, 6.3 stroke (Tennant Industrial) |
1 |
|
|
025 |
175-0766
|
CABLE, GLV .13D 015.5L .50EYE /.50EYE (Tennant Industrial) |
1 |
|
|
