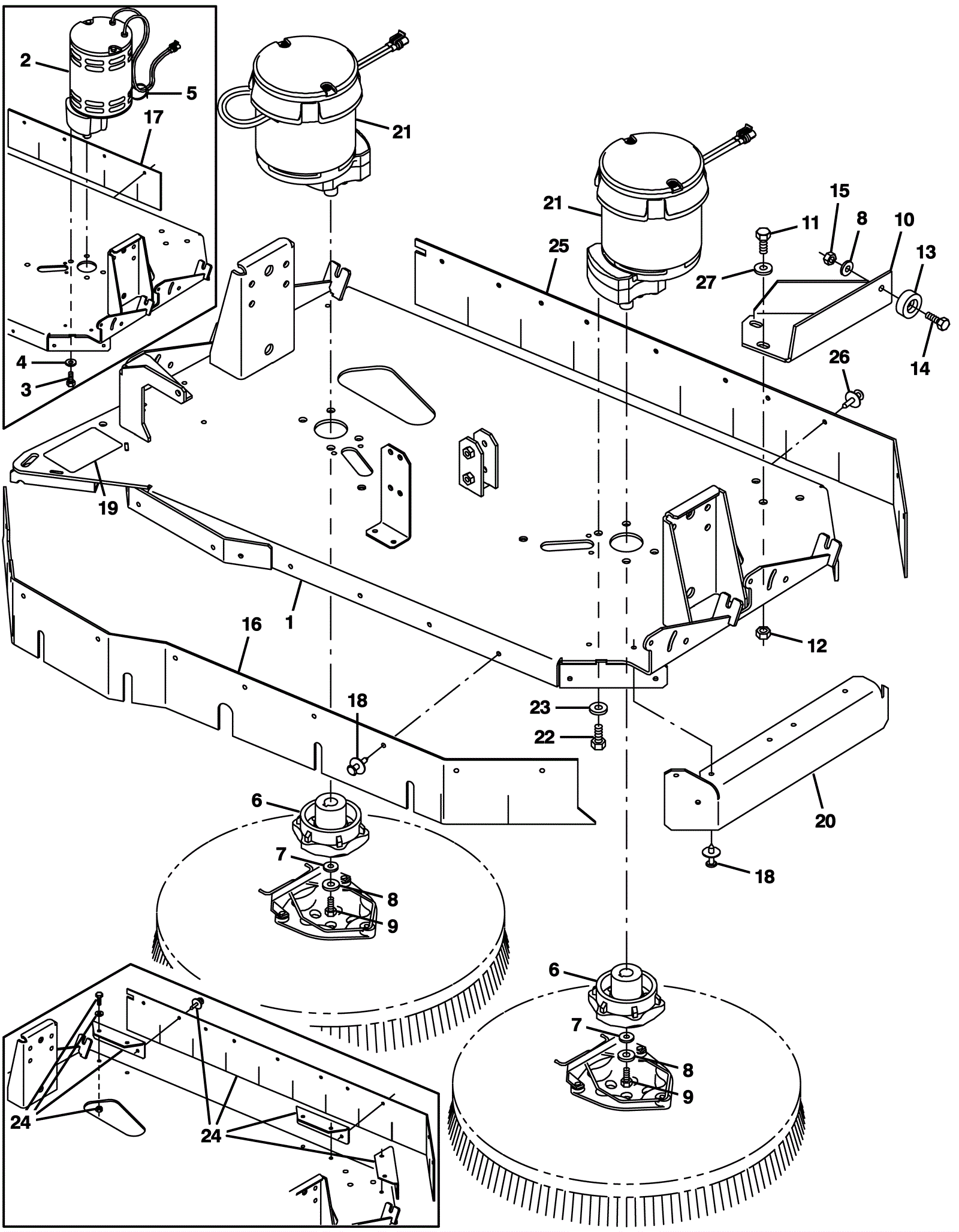

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-7971
|
Brush frame weldment (gray) (OBSOLETE) |
1 |
(before SN 007362) |
|
2a |
275-2460
|
1Hp 36V motor (Tennant Industrial) |
2 |
(before SN 007322) |
|
2b |
275-2461
|
1.5Hp 36V motor (Tennant Industrial) |
2 |
(before SN 003245) |
|
2c |
275-2461
|
1.5Hp 36V motor (Tennant Industrial) |
2 |
(after SN 003244 and before SN 007335) |
|
3 |
175-0729
|
SCREW, HEX, .38-16 X 1.00, NL (Tennant Industrial) |
8 |
(before SN 007322) |
|
4 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
(before SN 007322) |
|
5 |
175-2202
|
Nylon wire tie |
2 |
(before SN 007322) |
|
6 |
175-9525
|
Brush drive hub |
2 |
|
|
7 |
999-1407
|
Washer 5/16 belleville |
2 |
|
|
8 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
9 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
10 |
275-7972
|
Iron frame bracket (gray) (Tennant Industrial) |
1 |
|
|
11 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
3 |
|
|
12 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
3 |
|
|
13 |
175-0733
|
BUMPER, PYE, 1.50D 0.56TH 0.33H (Tennant Industrial) |
1 |
|
|
14 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
15 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
16 |
175-0734
|
SKIRT, RBR, .12, 04.50W 47.19L, 10/ HOLE (Tennant Industria |
1 |
|
|
17 |
175-0735
|
SKIRT, RBR, .12, 04.50W 15.66L, 03/ HOLE (Tennant Industria |
1 |
(before SN 007362) |
|
18 |
175-3378
|
Rivet 1/4 x 57/64 plastic |
24 |
|
|
19 |
175-0736
|
LABEL SET, INFO/HZRD [MAXPRO] (Tennant Industrial) |
1 |
|
|
20 |
175-0737
|
SKIRT, RBR, .12, 04.50W 17.25L, 05/ HOLE (Tennant Industria |
2 |
|
|
21a |
275-2460
|
1Hp 36V motor (Tennant Industrial) |
2 |
(after SN 007321) (includes 21c) |
|
21b |
275-2461
|
1.5Hp 36V motor (Tennant Industrial) |
2 |
(after SN 007334) (includes 21c) |
|
21c |
275-5341
|
Carbon brush (pkg of 4) |
1 |
|
|
22 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
8 |
(after SN 007321) |
|
23 |
175-7920
|
Washer M8 flat stainless steel |
8 |
(after SN 007321) |
|
24 |
275-2462
|
Rear skirt kit (Tennant Industrial) |
1 |
(before SN 007362) |
|
25 |
275-2463
|
Rubber skirt (Tennant Industrial) |
1 |
(after SN 007361) |
|
26 |
175-3378
|
Rivet 1/4 x 57/64 plastic |
6 |
(after SN 007361) |
|
27 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
3 |
|
|
