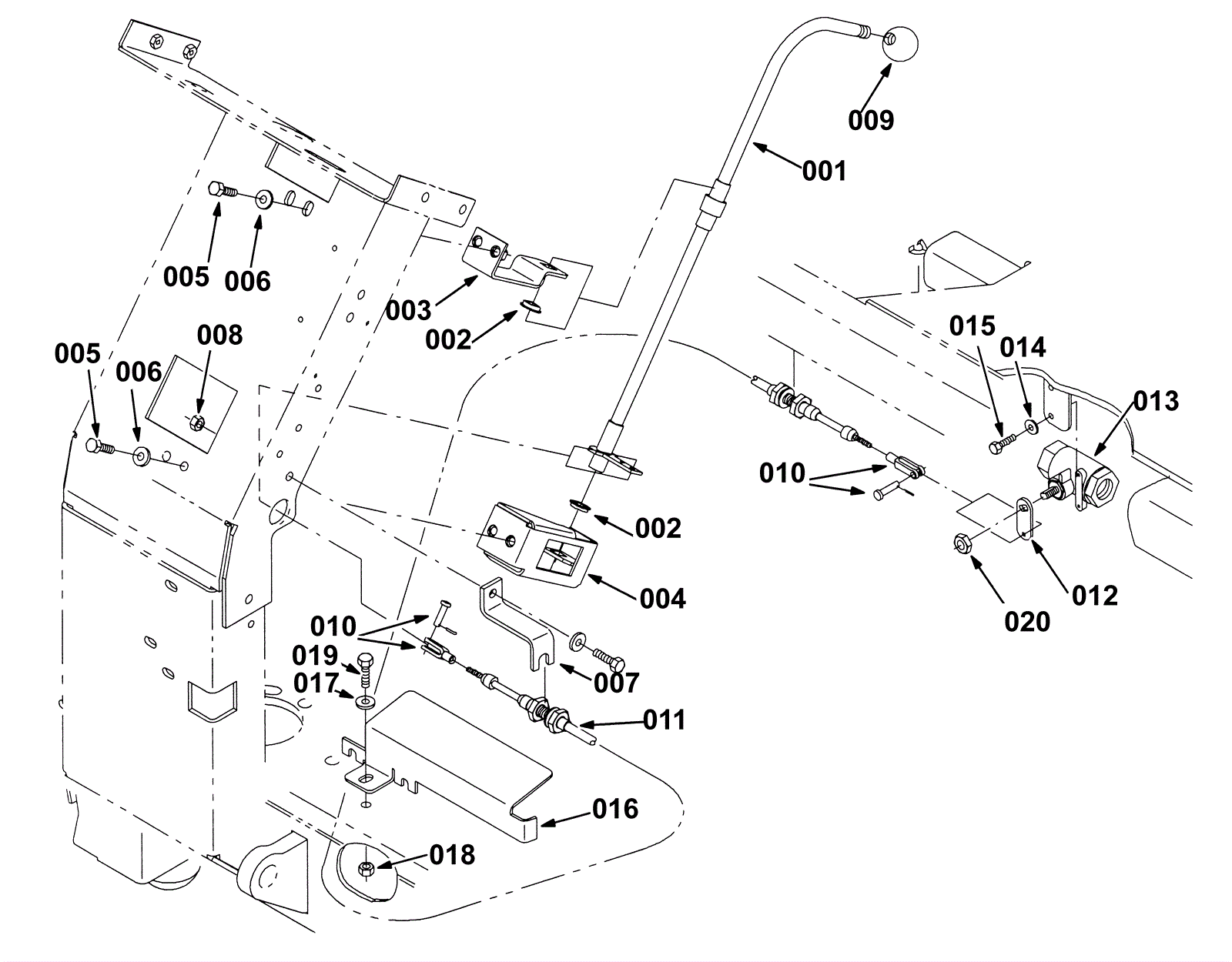

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-0683
|
HANDLE WLDT, CNTRL, SOLTN (Tennant Industrial) |
1 |
|
|
002 |
175-2099
|
Flanged bushing |
2 |
|
|
003 |
275-7965
|
Iron water handle bracket (gray) (Tennant Industrial) |
1 |
|
|
004 |
275-7966
|
Iron water hose bracket weldment (gray) (Tennant Industrial) |
1 |
|
|
005 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
5 |
|
|
006 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
007 |
275-7967
|
Iron control cable bracket (gray) (Tennant Industrial) |
1 |
|
|
008 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
009 |
175-0687
|
KNOB, BALL, 1.38D 0.50-20, PLSTC (Tennant Industrial) |
1 |
|
|
010 |
175-3424
|
Clevis 10-32 adjustment |
2 |
|
|
011 |
175-0688
|
Push pull cable (Tennant Industrial) |
1 |
|
|
012 |
275-7968
|
Iron water valve lever (gray) (Tennant Industrial) |
1 |
|
|
013 |
275-8341
|
VALVE, BALL, PF12, BRS, RWK 12060 (Tennant Industrial) |
1 |
|
|
014 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
015 |
175-0691
|
SCREW, HEX, 10-24 X 0.50, SS (Tennant Industrial) |
2 |
|
|
016a |
275-8342
|
BRACKET, GUARD (Tennant Industrial) |
1 |
(before SN 007000) |
|
016b |
275-9310
|
Guard bracket (iron gray) (Tennant Industrial) |
1 |
(after SN 006999) |
|
017 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
018 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
019 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
1 |
|
|
020 |
999-0725
|
Nut 7/16-20 nylon insert lock zinc plated |
1 |
|
|
